18

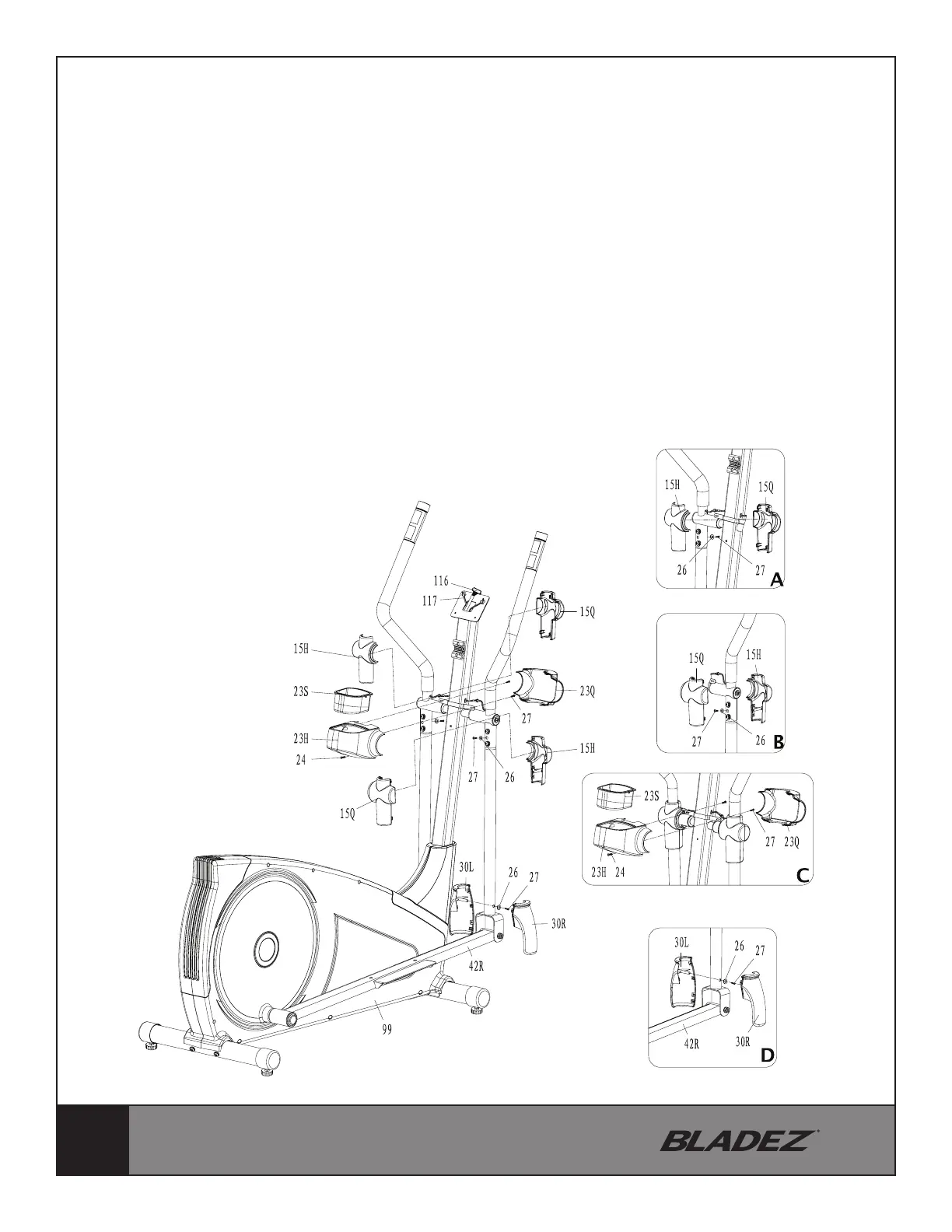

STEP 6
Attach the plastic Cover (15H) and plastic Cover (15Q) onto the left Handlebar using
Curved Washer (26) and Screw (27) as show in A.
Attach the plastic Cover (15H) and plastic Cover (15Q) onto the right Handlebar using
Curved Washer (26) and Screw (27) as shown in B.
Attach the plastic Cover (23H) and (23Q) onto the Handlebar Post using Screw (24) and
2 Self-tapping Screws (27) as as shown in C. Put the Water Bottle Holder (23S) into the
plastic Cover (23H).
Attach the plastic Cover (30L +R) onto the right Side Rail (42R) using Curved Washer (26)
and Screw (27) as shown in D. Do the same for the left Side Rail.
