19

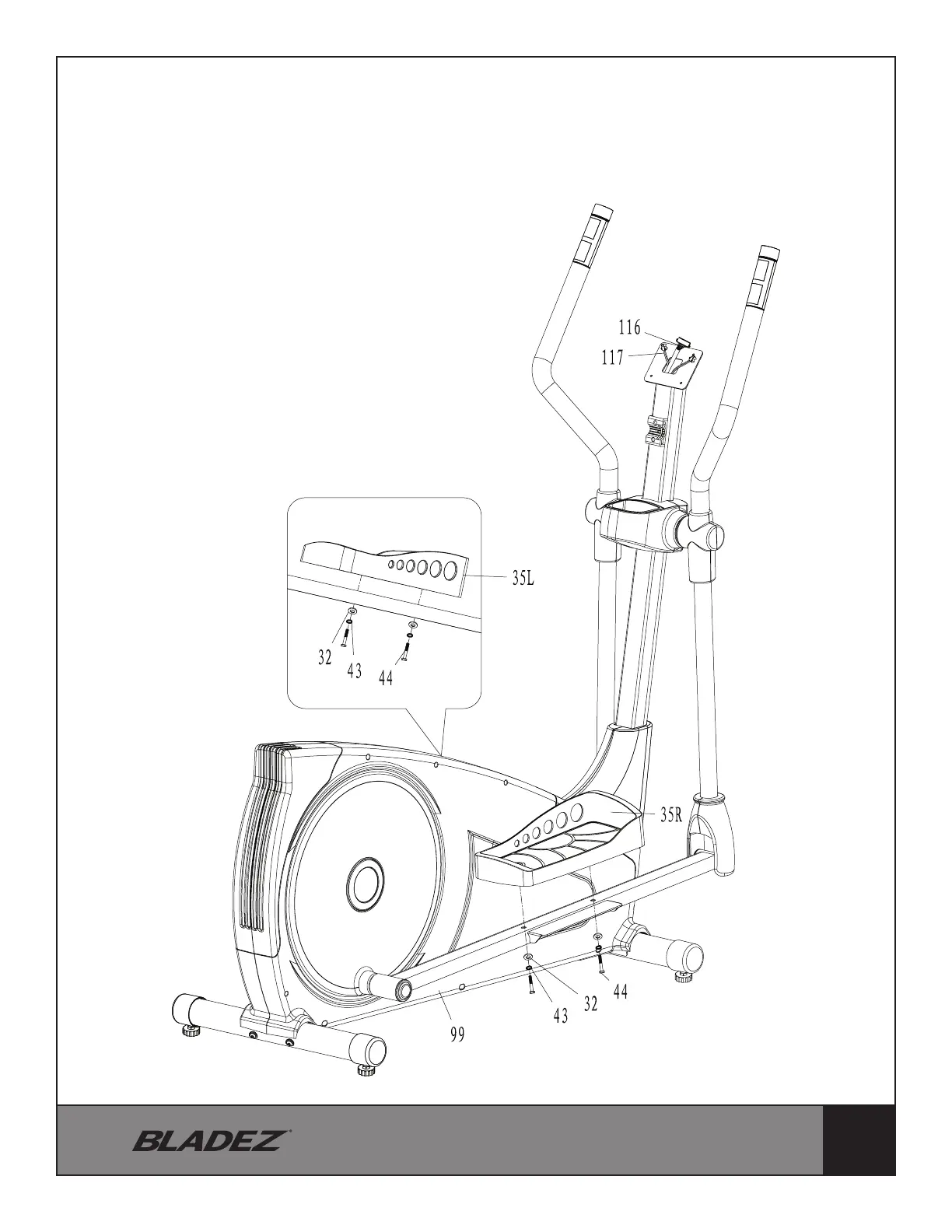

STEP 7
Attach the right Footplate (35R) onto the right Side Rail (42R) and secure it with 2 Flat
Washers (32), 2 Spring Washers (43), 2 Bolts (44). Do the same for the left Footplate (35L).
