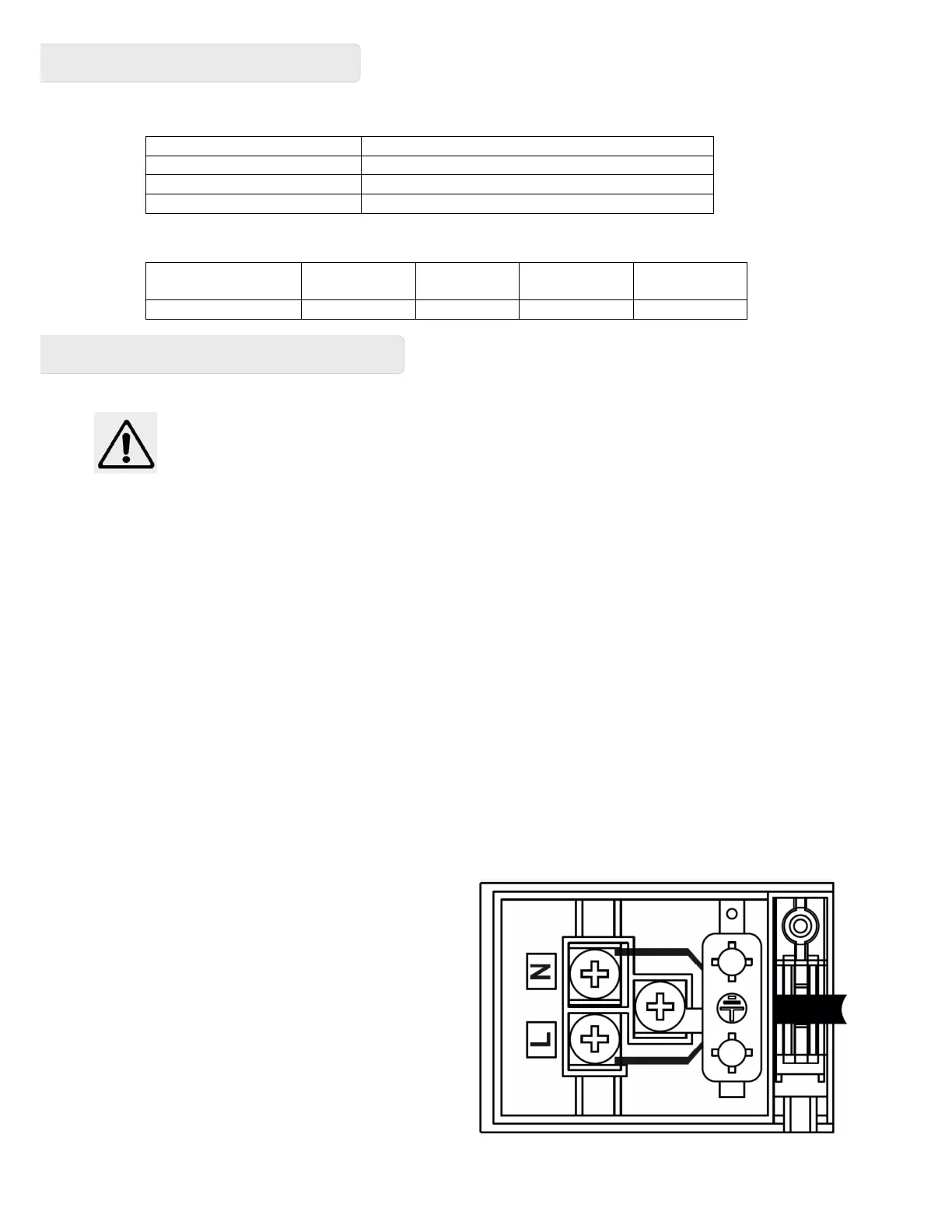

APPLIANCE DETAILS
ELECTRICAL DETAILS:
OVEN BOSE900X
Rated Voltage 220 to 240V ac 50Hz
Max Rated Inputs 3600W
Supply Connection Hardwired to power supply
This information can be found on the rating plate (data label) affixed to the inside of the door jamb.
SIZES:
Relevant Sizes LENGTH
(mm)
DEPTH
(mm)
HEIGHT
(mm)
CAVITY (L)
External Sizes 898 570 595 129
ELECTRICAL CONNECTIONS
LOCAL AUTHORITY REQUIREMENTS
Installation is only permitted by a licensed electrician, and carried out according to
instructions provided by the manufacturer. Incorrect installation might cause harm and
damage which the manufacturer accepts no responsibility.
ELECTRICAL INSTALLATION FOR THE LICENSED ELECTRICIAN
This oven must be connected to a 220-240V 50Hz power supply.
Before carrying out the connection to the power supply, the voltage rating of the appliance (stamped on the
appliance identification plate) must be checked for correspondence to the available mains supply voltage,
and the mains electric wiring should be suitable for the oven’s power rating (also indicated on the appliance
identification plate);
The switched outlet must be connected to a suitable earth wiring, in conformity to current safety regulations.
A circuit breaker with a contact opening of at least 3mm MUST be installed inside the supply circuit. It should
not be located above the appliance and no more than 1.25m away from it. The power supply cord must not
touch any hot surfaces and must be placed so that its temperature does not exceed 75°C at any point along
its length. After having installed the appliance, the switched outlet must always be in an accessible position.
NOTE: For connections to the mains power supply, never use adapters, reductions or multiple power points
as these may overheat and catch fire.
The mains terminal block is located on the back of the oven and the terminals are accessible by opening the
terminal block cover.
Note: The terminal cover should not be opened when the mains power is still connected to the appliance and
never by an unauthorized person.
The electrical safety of this appliance can only be
guaranteed if the oven is correctly and efficiently
earthed. The manufacturer declines all responsibility
for damage resulting from an installation which has
not been earthed correctly. The use of adapters,
multiple sockets and/or extensions, is not allowed.
