Blanco FI905X - Anti-Tilt System Installation

10

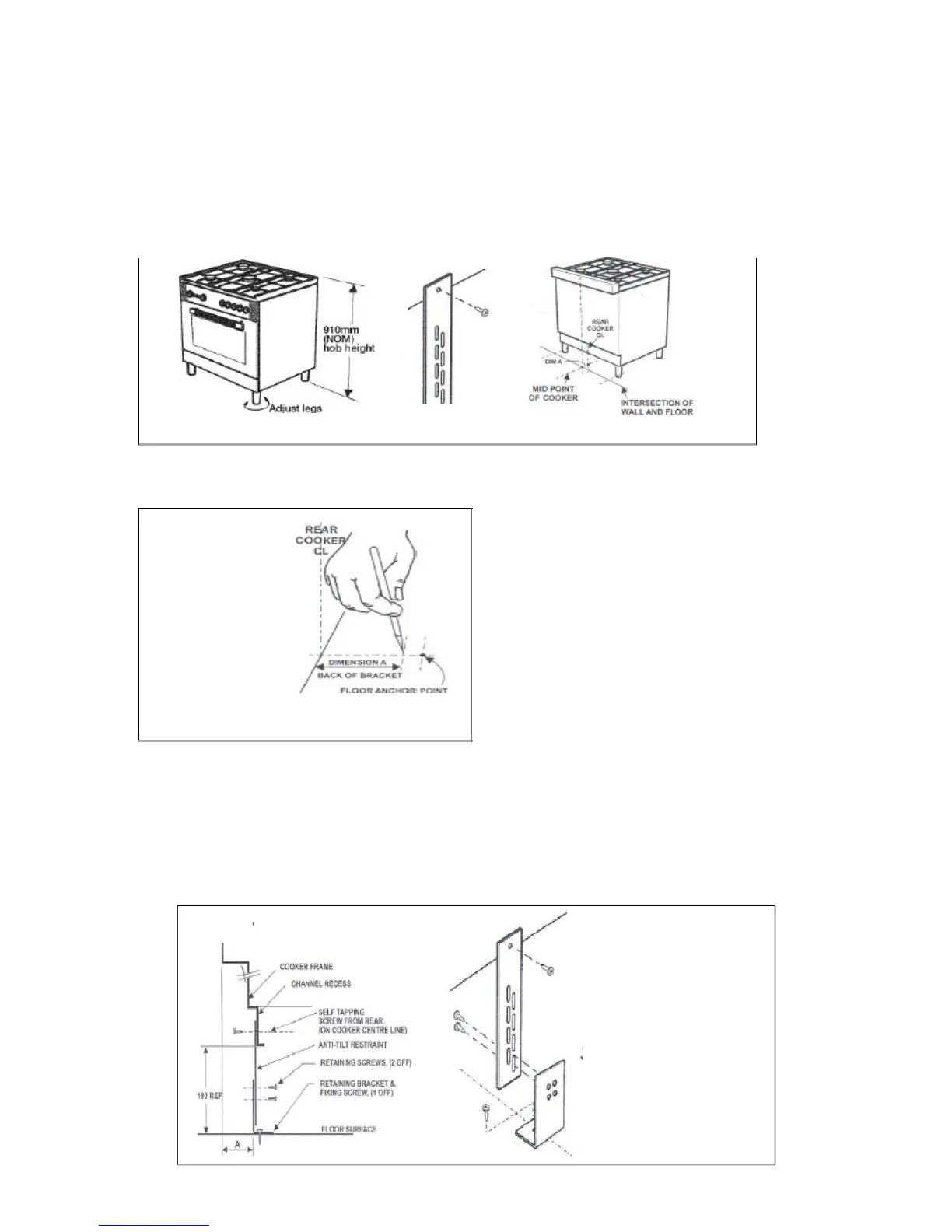

ANTI - TILT SYSTEM
The appliance must be installed using the anti-tipping system provided.
1. F i t flat strap to rear of cooker at the center p o i n t on l ower edge using suppl i ed screws.
2.
Mark center position of the cooker i ns t alle d pos i t i on on f l oor.
I NTERSEC TIO N OF
WAL L F'LO O R
3.
Measure from rear most point hob to mount point of strap. ( Dimens i on A) , then us i ng
D i men s i on A mark back edge of the bracket on cen te r l in e . Use bracket to mark fix in g
po i n t.
