9

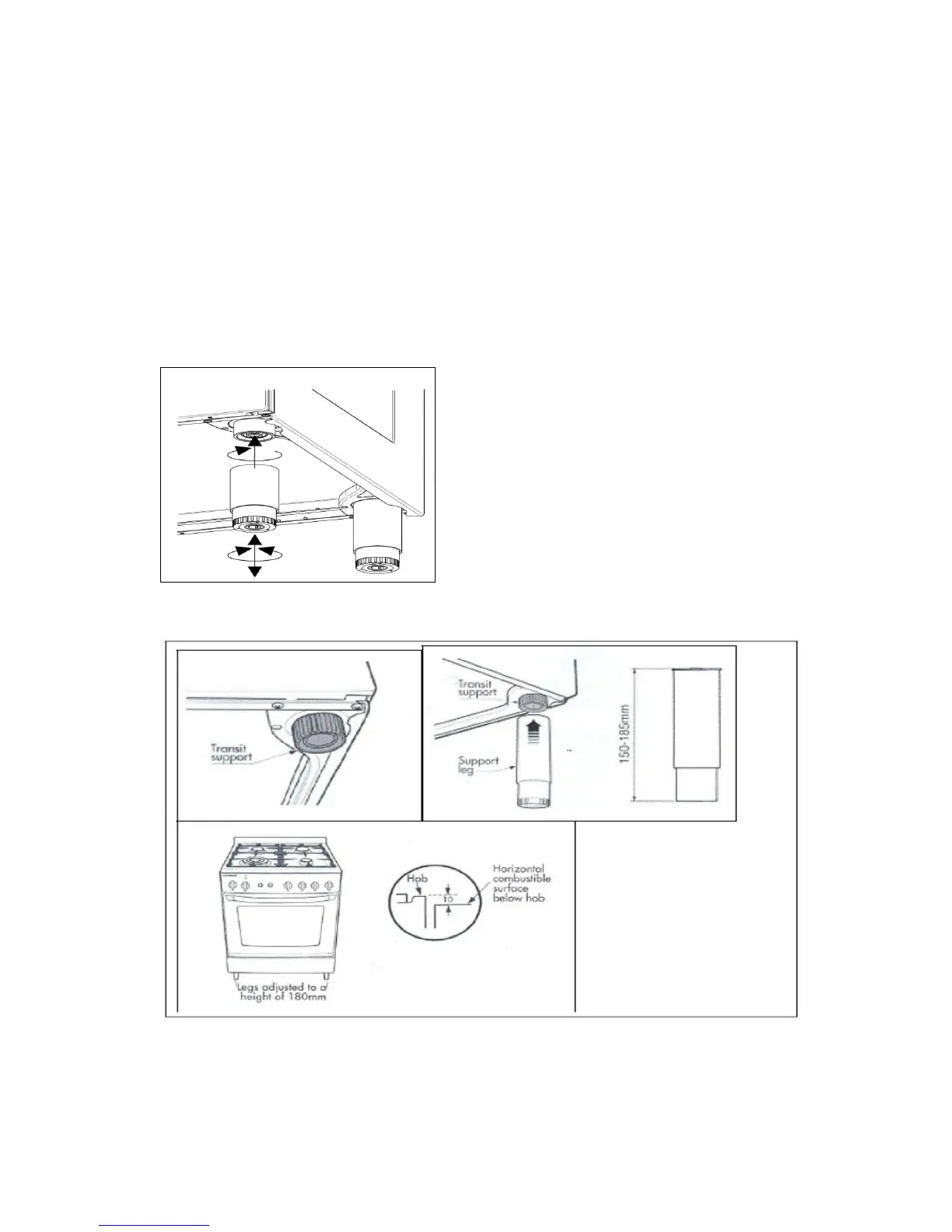

HEIGHT ADJUSTABLE LEGS
Legs are packed in the top box.
Legs should be installed with the appliance being near the location of final installation, they are not
secure for long transport. After unpacking the range, raise it about a foot to insert the legs in their
bases assembled on the lower part of the cooker and lower the range gently to keep any undue strain
from legs and mounting hardware. It is recommended to use a pallet or lift jack instead of tilting the
unit. Tilting the unit of dragging may easily break the legs.
If the legs are not used and the cooker is mounted onto a plinth, fit transit legs to allow for clearance.
Once legs are adjusted to a nominal cooker height of 910 mm, fit the anti-tilt restraint
bracket.
