Blatchford Echelon - Page 13

938280SPK2/1-0121
If a foam cosmesis is to be tted, roughen
top surface of foot shell to provide ideal
bonding surface.
3 4
5 6
87
13

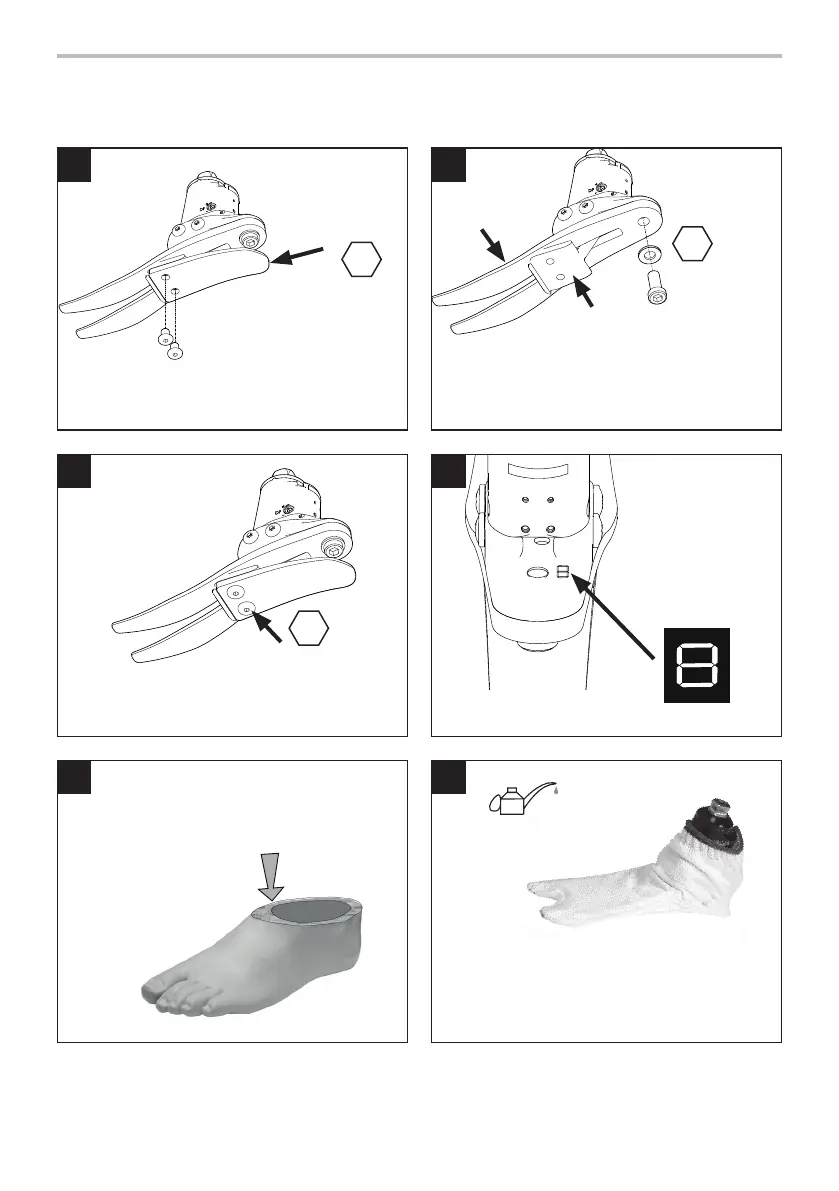

Heel Spring
Re-assemble with replacement heel spring. Use
Loctite 243 (926012) and torque to 15 Nm.
Remove heel spring and screws.
4
4
15 Nm
Spring replacement
Cover
appropriate lines
on carrier with
permanent black
marker to leave
spring set
number showing.
Carrier
Assembly
Remove toe spring screw, replace toe. Upon
reassembly, use Loctite 243 (926012) and torque
to 35 Nm. Ensure toe spring is central to the
carrier.
35 Nm
8
Toe Spring
9 Assembly Instructions (continued)
Lubricate toe and heel if required.
(Foot shell is pre-lubricated).
928017
Fit sock as shown.
