If a cosmetic nish is required please contact a member of the Blatchford Sales Team.

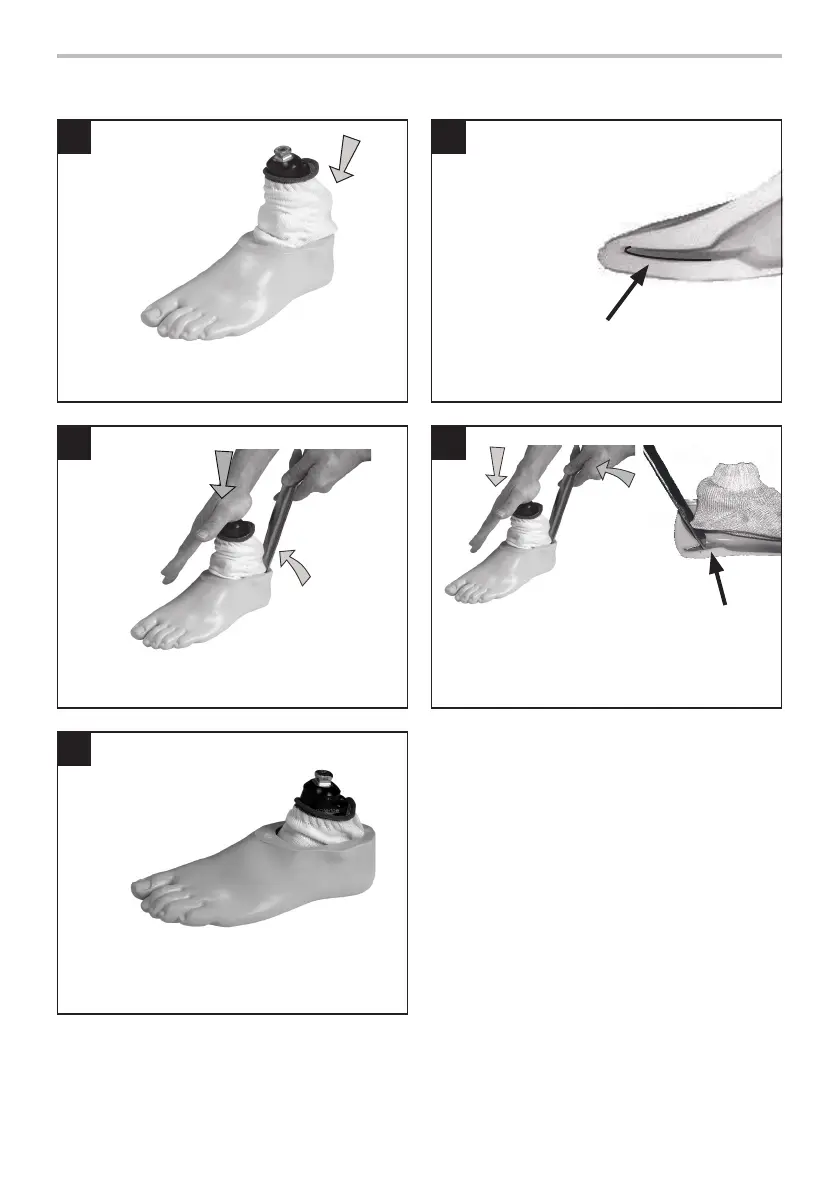

Slide carrier/heel spring assembly into the foot
shell.
Use a suitable lever to encourage the heel spring
into location in the foot shell.
Ensure glide sock does not get trapped when
assembling to female pyramid part.
9 Assembly Instructions (continued)
Ensure heel spring is engaged into slot.
heel spring
location slot
Toe spring location in foot shell.
To Next Page
