Installation Manual
BlinkCharging.com
•
(888) 998.2546
11

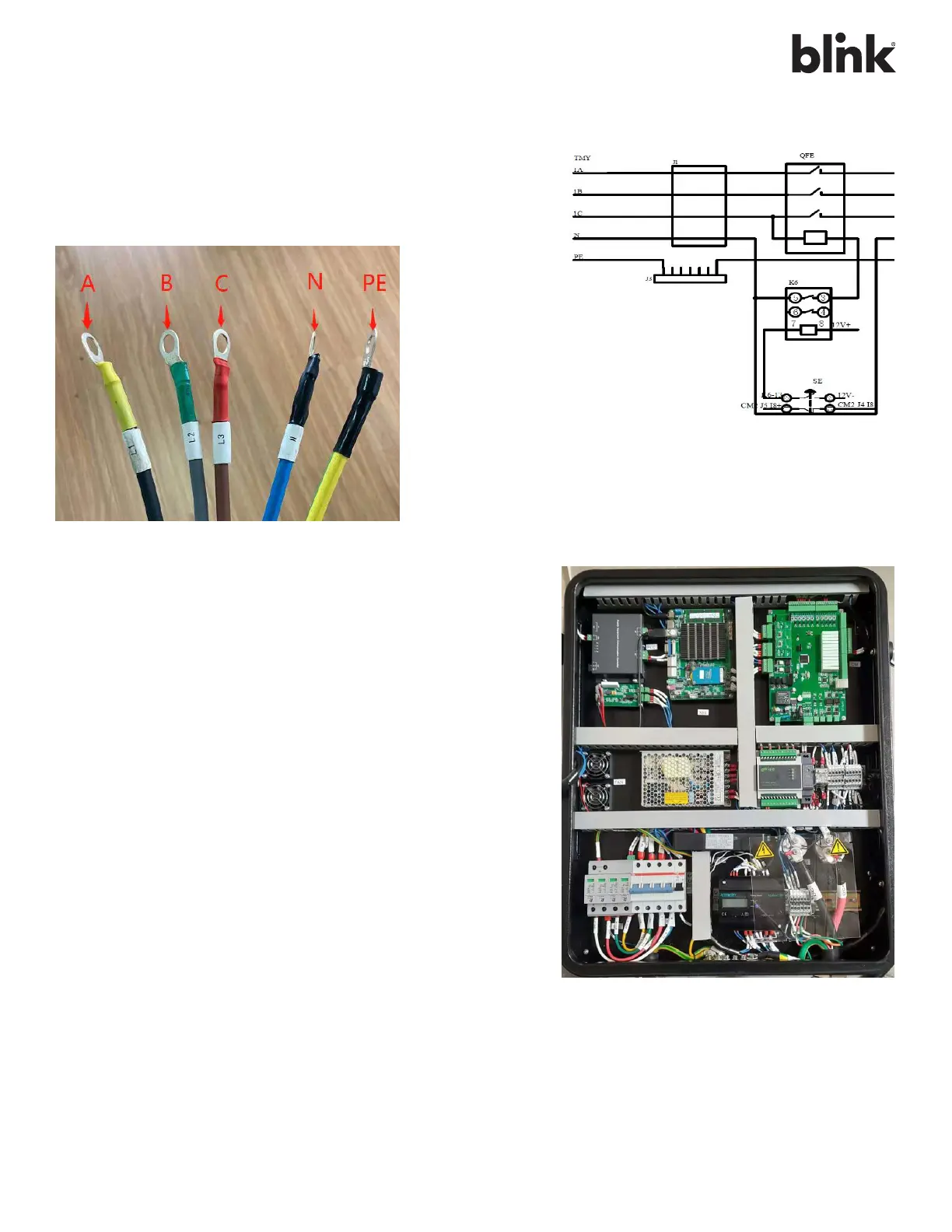

AC INPUT POWER WIRING
INPUT VOLTAGE
The Charger requires an Input voltage of 480 VAC (3 Phase +
Neutral + Earth), 60Hz and current of 40 Amps.
AC INPUT TERMINATION
MAIN BREAKER
ABC are the 3 Phase Lines
N is the Neutral.
PE is the Protective Earth or Ground
Line Side Single input option: 25 sq mm Please follow
local codes
Ampere Rating per Pole: 63
Component Description: 4 Pole MCB
Schematic diagram of the
input connection of the
charger.
