Installation Manual
BlinkCharging.com
•
(888) 998.2546
7

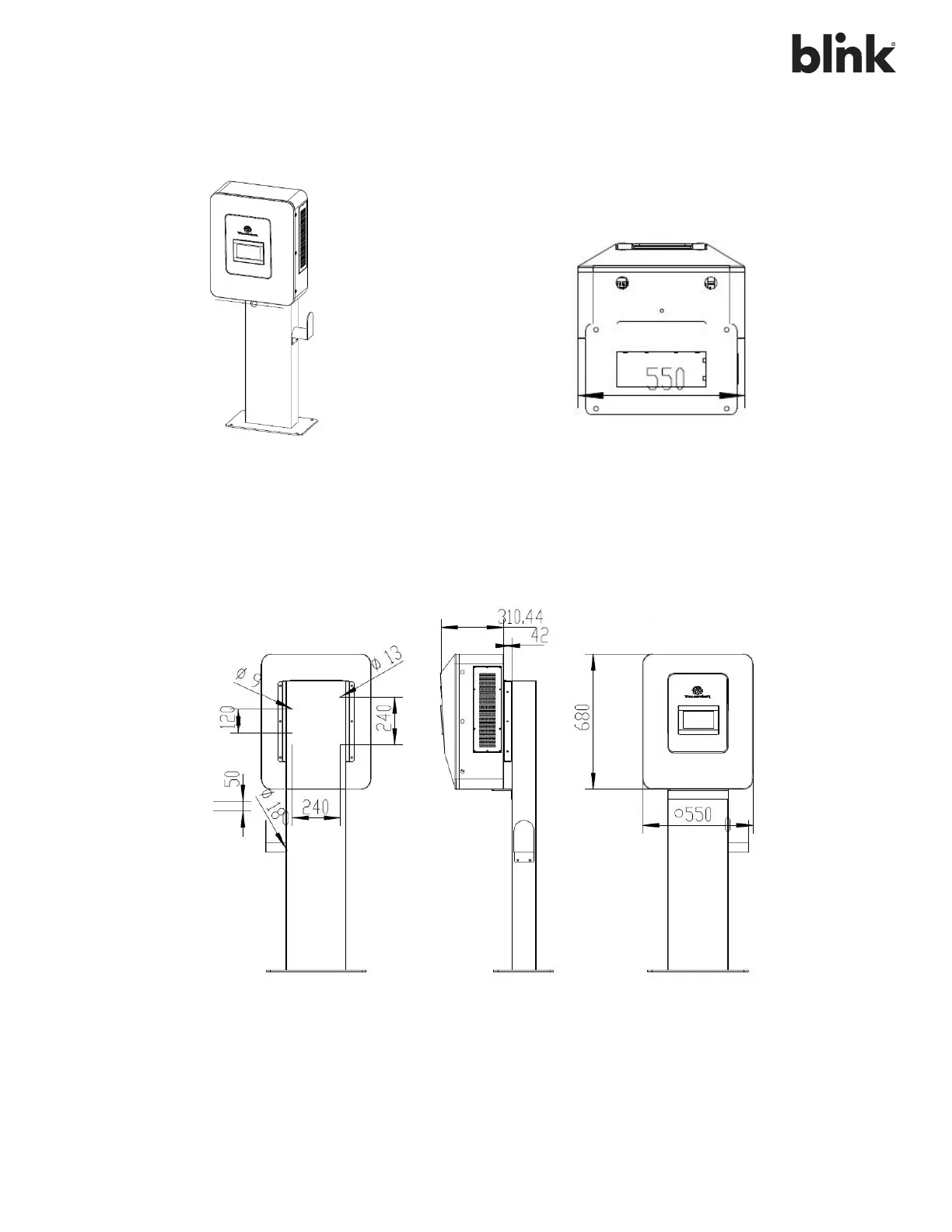

4. OUTLINE OF DRAWING TP-30-480 DCFC
Charger Depicted to be mounted on a stand. The dimension of the bracket remains the same from wall mount
and stand mount (units of measure in mm).
