Lit. No. B64118, Rev. 03 12 March 1, 2009
MOLDBOARD & A-FRAME ASSEMBLY
1/8" Ground
Clearance
Spring Loaded
Adjustable
Pivot Beam
Kickstand

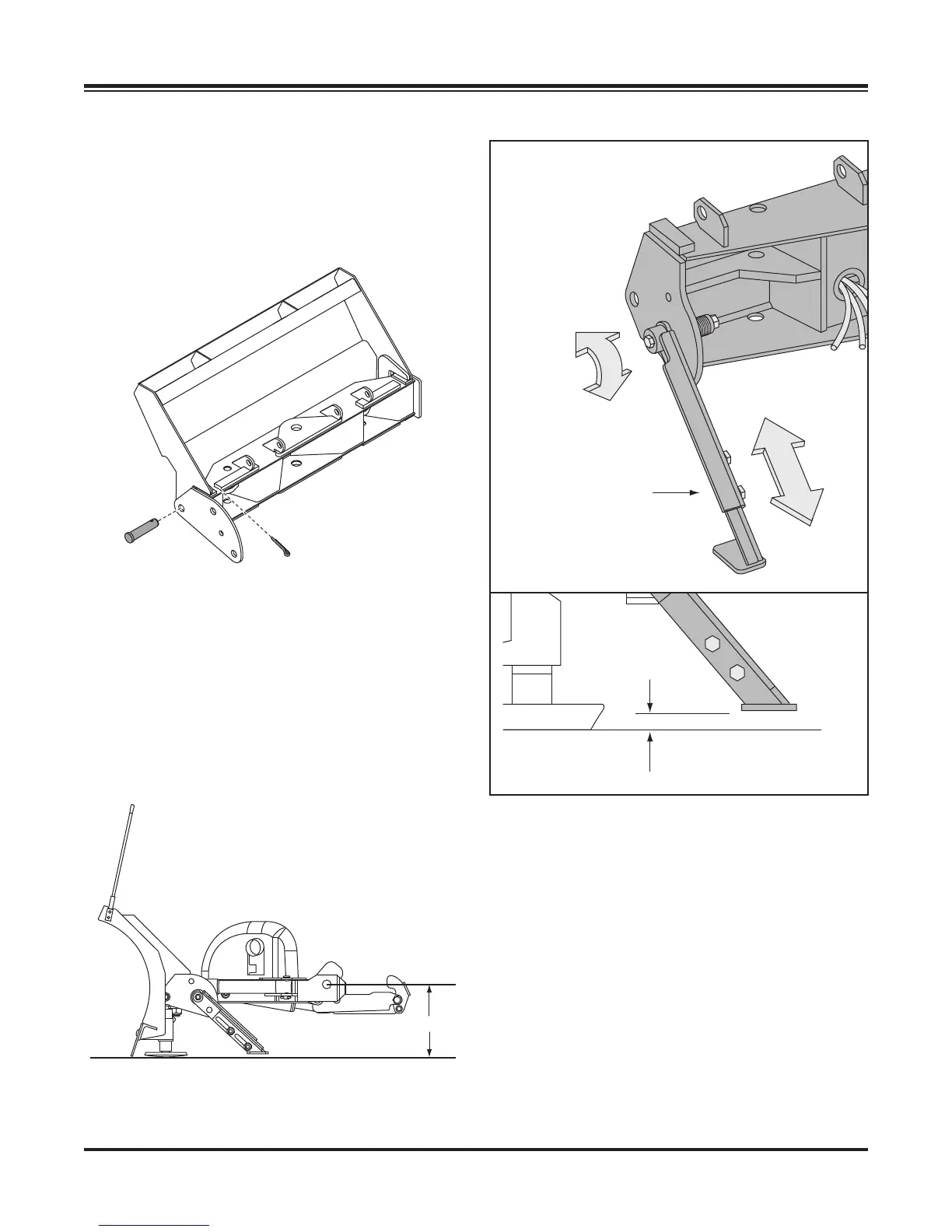

1. Position the pivot beam and A-frame near
the connecting points at the rear of the blade
between the two center support ribs. Insert one
3/4" x 3-7/16" clevis pin through each mounting
hole and secure with 1/4" x 1-1/2" cotter pin.
2. Mount the kickstand to the end of the pivot beam
(driver's side) using the 1/2" x 4-1/2" bolt provided.
The spring, bushing and locknut are located on
the inside of the pivot beam. Review the diagrams
below and to the right. To pivot the kickstand, pull
the spring loaded leg out and rotate it until the pin
locks into place. Adjust the foot on the stand arm
so that the foot is 1/8" from the ground when the
A-frame is level and the A-frame mount points
are 10-1/2" from the ground. Tighten both of the
locknuts on the kickstand.
10-1/2"
