Blizzard 680LT - A-Frame and Pivot Beam Components

Lit. No. B64118, Rev. 03 40 March 1, 2009

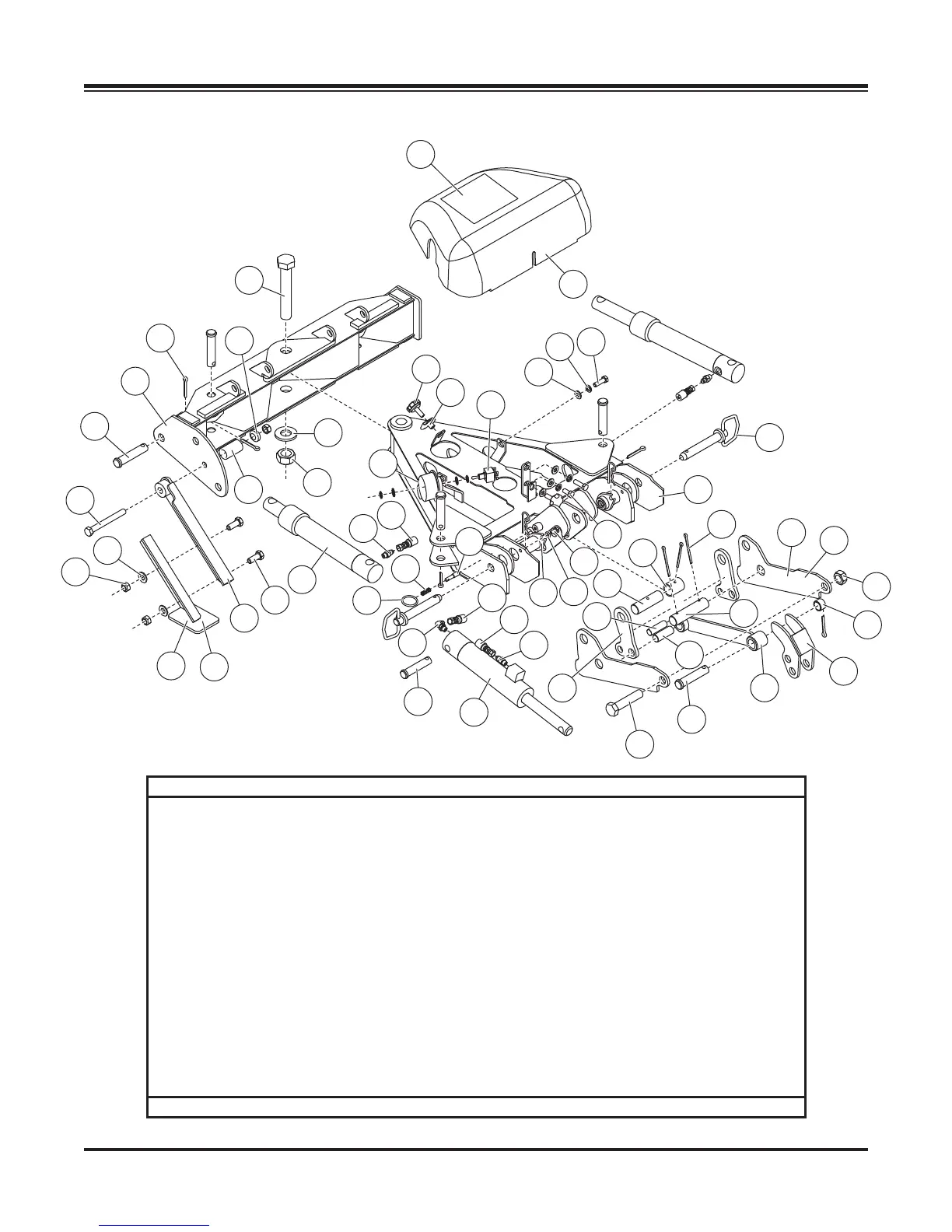

A-FRAME & PIVOT BEAM PARTS – ALL MODELS
7
6
8
11
1
2
12
36
35
26
25
39
54
37A
37
49
48
44
43
38
46
45
42
33
32
31
47
11
40
41
17
17
18
20
30
29
28
14
15
16
34
5
4
9
50
22
23
51
53
52
24
13
10
3A
3
21
19
Item Part Qty Description
1 B83017 1 Pivot Beam
2 90601 8 1/4 x 1-1/2 Cotter Pin
3A B41039 1 Kickstand Assembly (Incl. Items 3–10)
3 B41047 1 Kickstand Foot
4 B41038 1 Kickstand Leg
5 90665 2 1/2-13 x 1-1/4 Hex Cap Screw G8
6 90572 2 1/2 Hardened Flat Washer
7 90593 3 1/2-13 Hex Locknut GC
8 42009 1 1/2-13 x 4-1/2 Hex Cap Screw G8
9 B61293 1 1-1/8 OD x 53/64 ID x 2 Compression Spring
10 B41037 1 3/8 x 1-1/8 OD x 35/64 ID Stepped Bushing
11 B82055 7 3/4 x 3-7/16 Clevis Pin
12 B61434 1 1-8 x 6 Hex Cap Screw (4-3/4 Shank) G8
13 B61008 1 1-8 Top Locknut GC Distorted Thread
14 B60277 2 Hydraulic Cylinder, Plow Angle
G = Grade SS = Stainless Steel
