Blizzard 680LT - Electrical Schematics - Snowplow Side

Lit. No. B64118, Rev. 03 21 March 1, 2009

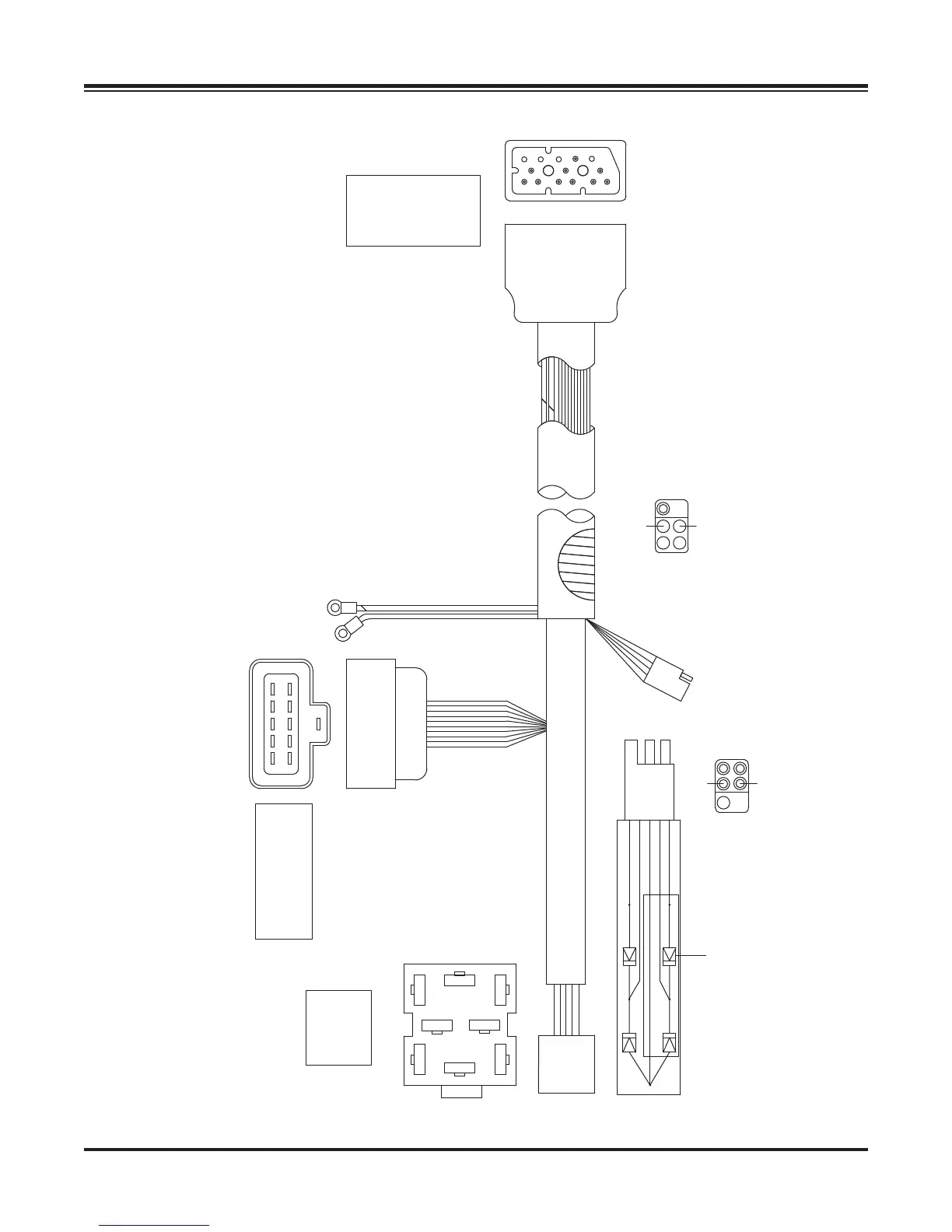

ELECTRICAL SCHEMATICS – SNOWPLOW SIDE
G BLU/BLK
H BLU/WHT
J RED/BLK
K RED/WHT
(4) 6 AMP 600 VOLT
ORG/BLK
ORG/RED
ORG/WHT
WHT
DIODES
ORG
ORG/BLK
ORG/RED
ORG/WHT
WHT
ORG
TOP
3
7
1
4
5
8
2
6
(1) BRN (2) BRN (3) ORG/RED (4) WHITE (5) PNK/BLK (6) PNK/BLK
DCBAE
C WHT A ORG/BLK
B ORG/WHT D ORG/RED E LT GRN
GFHJK
F BLU
WHT
ORG/RED
ORG/WHT
ORG/BLK
ORG
11
8
7
16
10
6
2
5
15
14
7 BLU/BLK
15 PNK / BLK
10 WHT 11 ORG
9 LT GRN 8 BLU
4
1
3
9
13
12
4 RED / WHT
6 BLU/ WHT
5 RED / BLK
1 BLK
2 RED 3 BRN
PLOW HARNESS (B62039)
