08

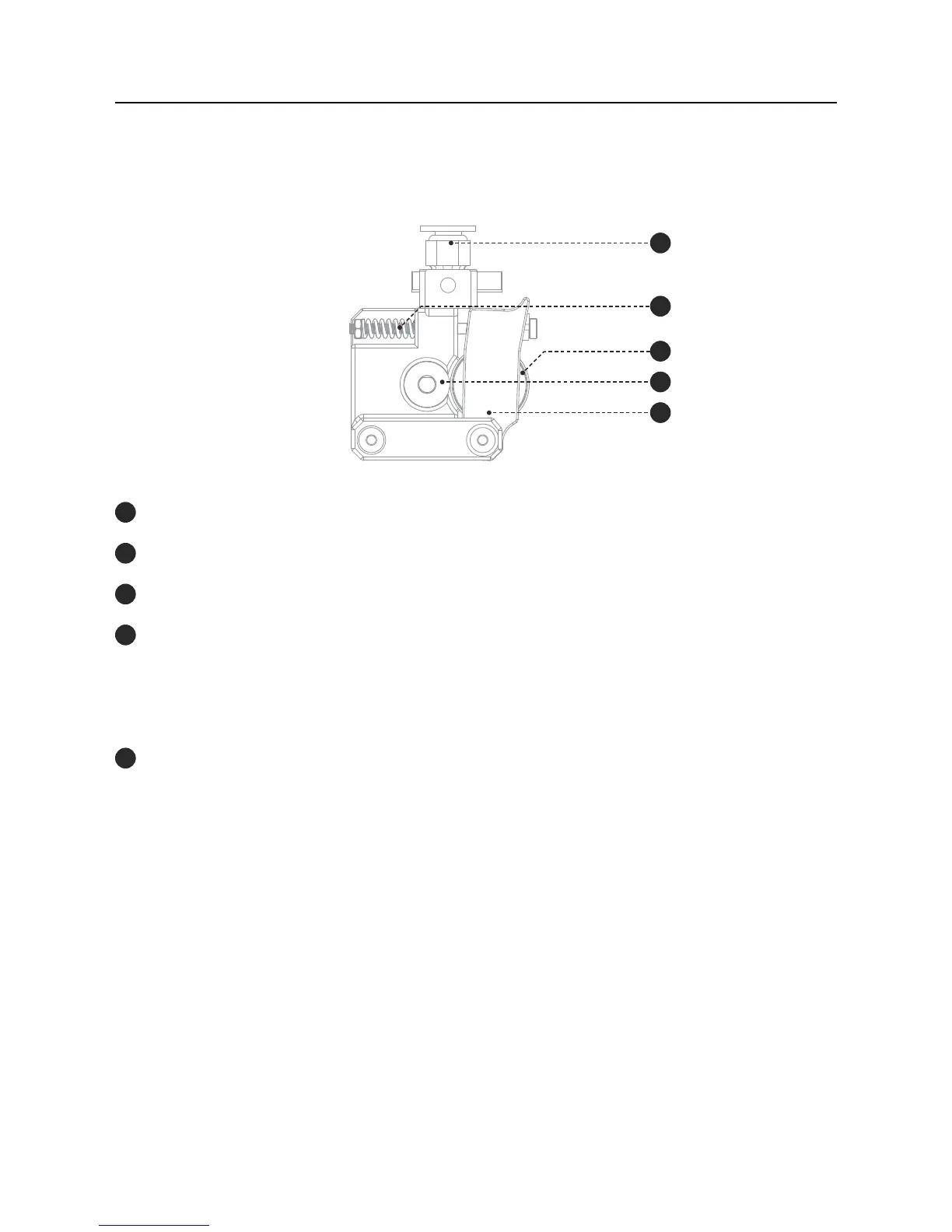

Extruder illustration
Fitting
Springs
Bearing
Pinion
Hinge
Component for xation of the PTFE tube to the extruder.
Adjust the tension that the bearing exerts on the lament and pinion.
Accompanies the movement of the lament imposed by the pinion.
Component that transmits the motor rotation and imposes linear motion
on the lament.
Note: the pinion teeth must be perfectly aligned with the holes where the
lament passes. (To learn more about how to align the pinion teeth, see
page 65 of the TIPS section of the Blocks Zero assembly guide.)
Component that allows to relieve tension in the lament facilitating its
insertion.
Introduction02
1
2
3
4
5
1
2
3
4
5
