5
Oven Assembly
Installation

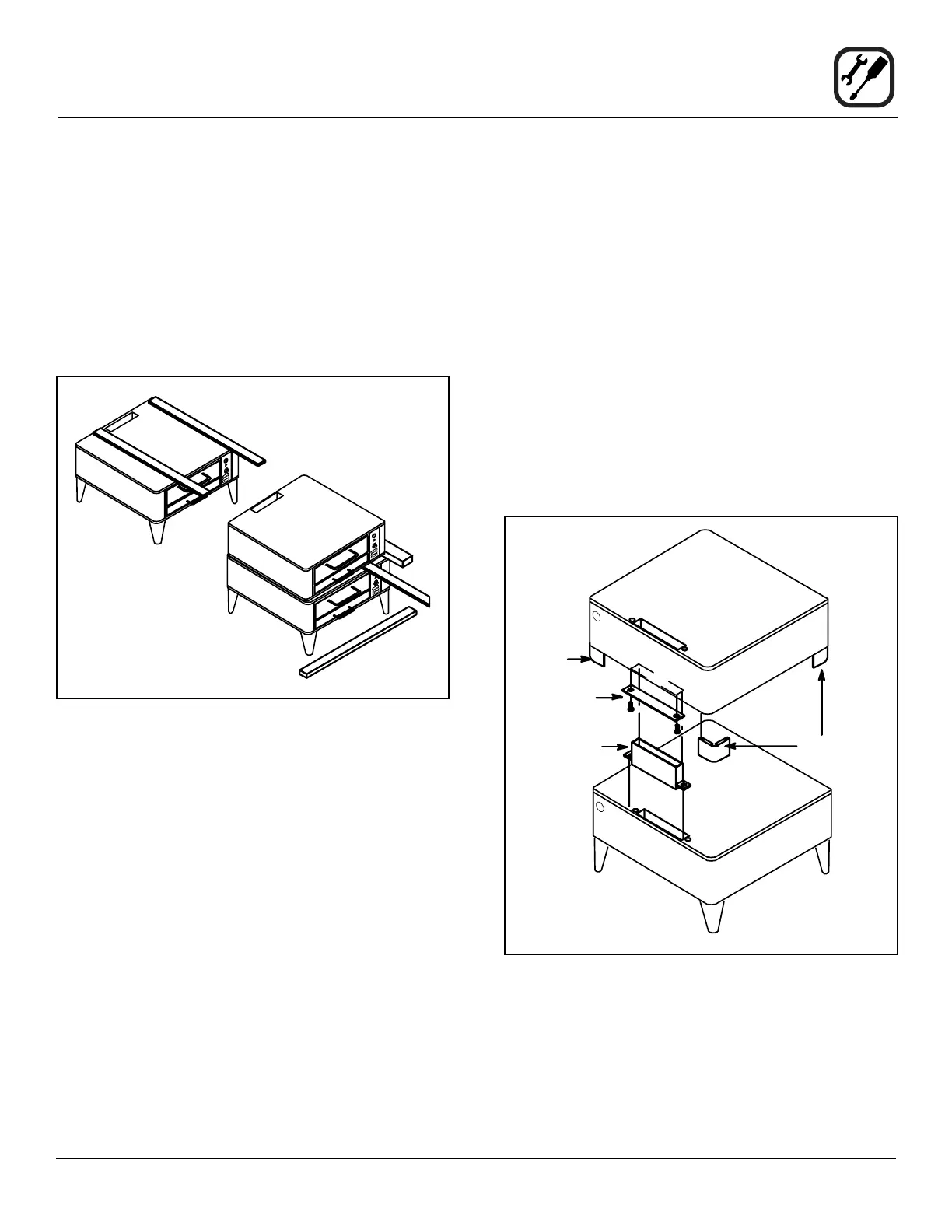

OVEN STACKING (if applicable)
900 Series Ovens
1. Place two boards on top of the lower oven.
2. Slide the upper oven on top of the boards.
3. Slide a board under the top oven. Lift up to re- move
the left board.
4. Slide the top section into position Remove the right
board.
Figure 4
1000 Series Ovens
1. Fasten 30,5 cm legs to lower section.
2. Remove the sheet metal ue cover on the bottom of
the UPPER OVEN ONLY. Save the two screws.
3. Fasten the spacers to the bottom of the upper oven.
See Figure 5.
4. Insert oven ue connector into the bottom of the oven
ue. Push until it is ush with the bottom of the upper
oven. Temporarily hold in place with tape.
5. Place the upper oven on top of the bottom oven.
6. Remove the tape. Slide the ue connector into posi-
tion over the collar of the bottom oven.
7. Fasten ue connector to bottom oven with the screws
from the ue cover.
Spacer
Flue Cover
Flue
Connector
Spacers
Figure 5
