Blodgett Mark V Replacement Parts List

26

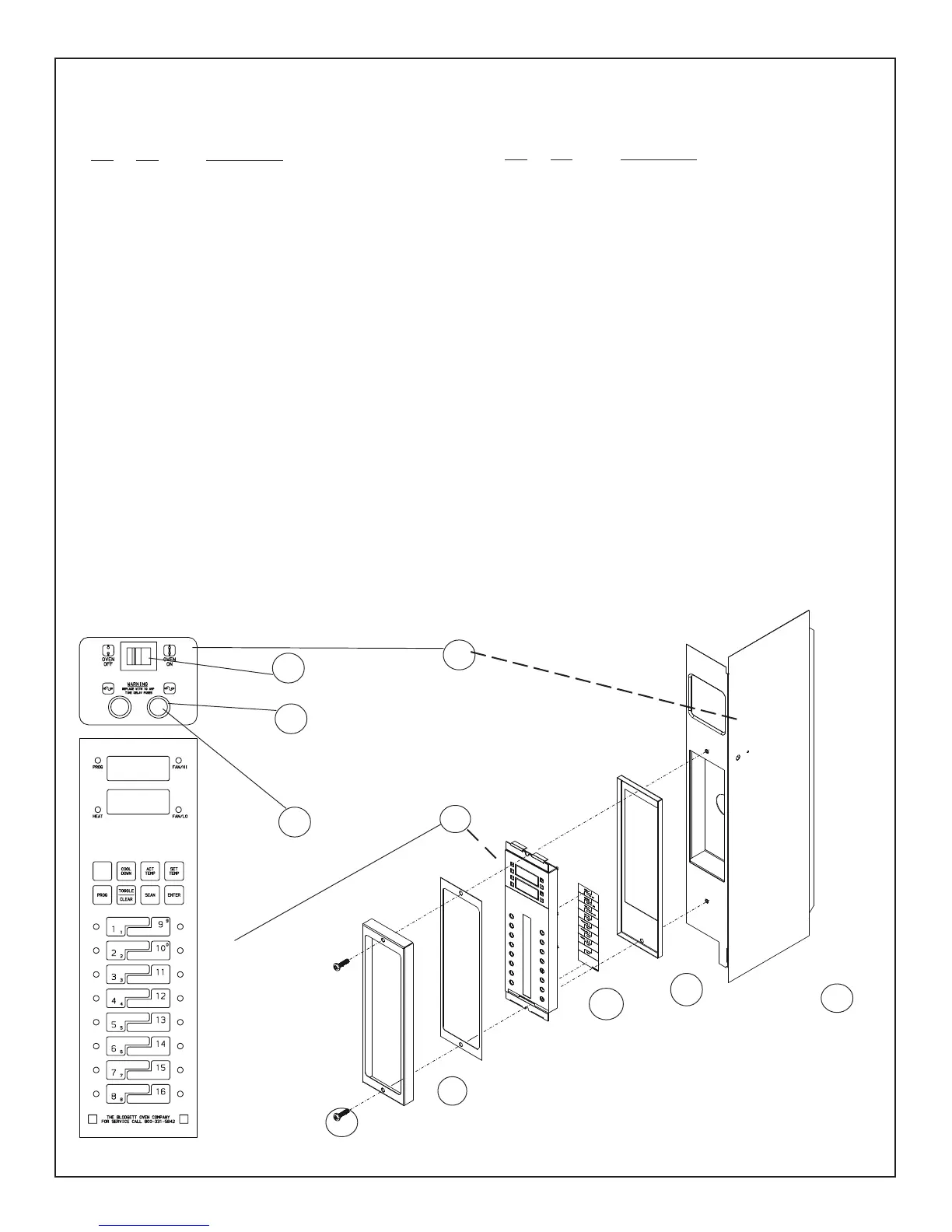

5 MARK V
IQ CONTROL PANEL- KFC
EXCLUSIVE TO KFC FAST CONTROLS
STANDARD ON OVENS MANUFACTURED AFTER 11/08/96
19619
Rocker Switch
6
20162
16605
Fuse
6
41
33067
Decal,
Fuse & Switch
34968, IQ Control
FW531, IQ Control,
Recond.
24
20163
20442
16604
Fuse holder
7
33169 Gasket, Rubber
32999 Control Retainer
25
34041-US
33527-CAN
Product Strip
27
28
33151
Gasket,
Control
Back
29
33105
Control
Cover
Ref. Part
No. No. Description
24 34968 Control, "IQ" w/SCK for U.S.
24 FW531 Control, Reconditioned "IQ" w/SCK for U.S.
34098 Decal, Computer
37034 Microswitch Assy, w/Bottom Trim
34 33902 Relay, 4PDT, 3 AMP, 250V
33922 Socket, Relay
33073 Relay Board
35 33074 Probe, Right Angle
M6899 Transformer 208/240-24V
33075 Control Harness 208/240V
33072 Control Harness 24V
33296 Harness Adaptor
11 33244 Element Assy. 240V
11 33245 Element Assy. 208V
18651 Contactor, 2 Pole,60 AMP, 208V, 1PH
18 37295 Contactor 3 Pole,30 AMP,208/240V, 3PH
33904 MOV Assy
6 19619 Switch, Rocker DPST, Black(Power Switch)
32244 Motor 208/240V, 2SP 1/3 HP
38 33140 Diverter, Grease LH
39 33254 Diverter, Grease RH
40 33139 Drip Shield
32519 Stainless Steel Oven Cap
41 33067 Decal, Fuse & Switch
27 33527 Canadian Product Strip
27 34041 U.S. Product Strip
37635 Shelf Assy
Ref. Part
No. No. Description
7 20163 Fuse Holder (Between 6/88 & 02/15/97)
7 20442 Fuse Holder, 30AMP, (After 02/15/97)
7 16604 Fuse Holder (Before 6/88) Intelli II
6 16605 Fuse, 600V,10 Amp
(Before 6/88 & After 02/15/97)
6 20162 Fuse, 300V, 10 Amp.
(Between 6/88 & 02/15/97)
33155 Front Comm. Port
33156 Rear Comm. Port
29 33105 Control Cover
25 32999 Control Retainer
26 33169 Gasket, Rubber
28 33151 Gasket, Control Back
36 33253 Flue Guard
30 33108 Shelf Assy, Complete
31 33117 Channel Assy, Support (used with Shelf)
37 33083 Four Position Rack Guide
33150 Baffle Bracket
33090 Baffle, Interior
37089 Lower Door Support Assy. KFC
33528 Caster Kit, adjustable (Set of 4)
33193 Legs, 25" S/S
34028 Stacking Kit, CTB on Mark V
(Exclusive to KFC)
34126 Start-Up & Nightly Cleaning Sticker
