Blodgett SG2136 E & G - Control Components; M10137 Manual Control Assy; M10138 Menu Control Assy; M9712 Docking Station

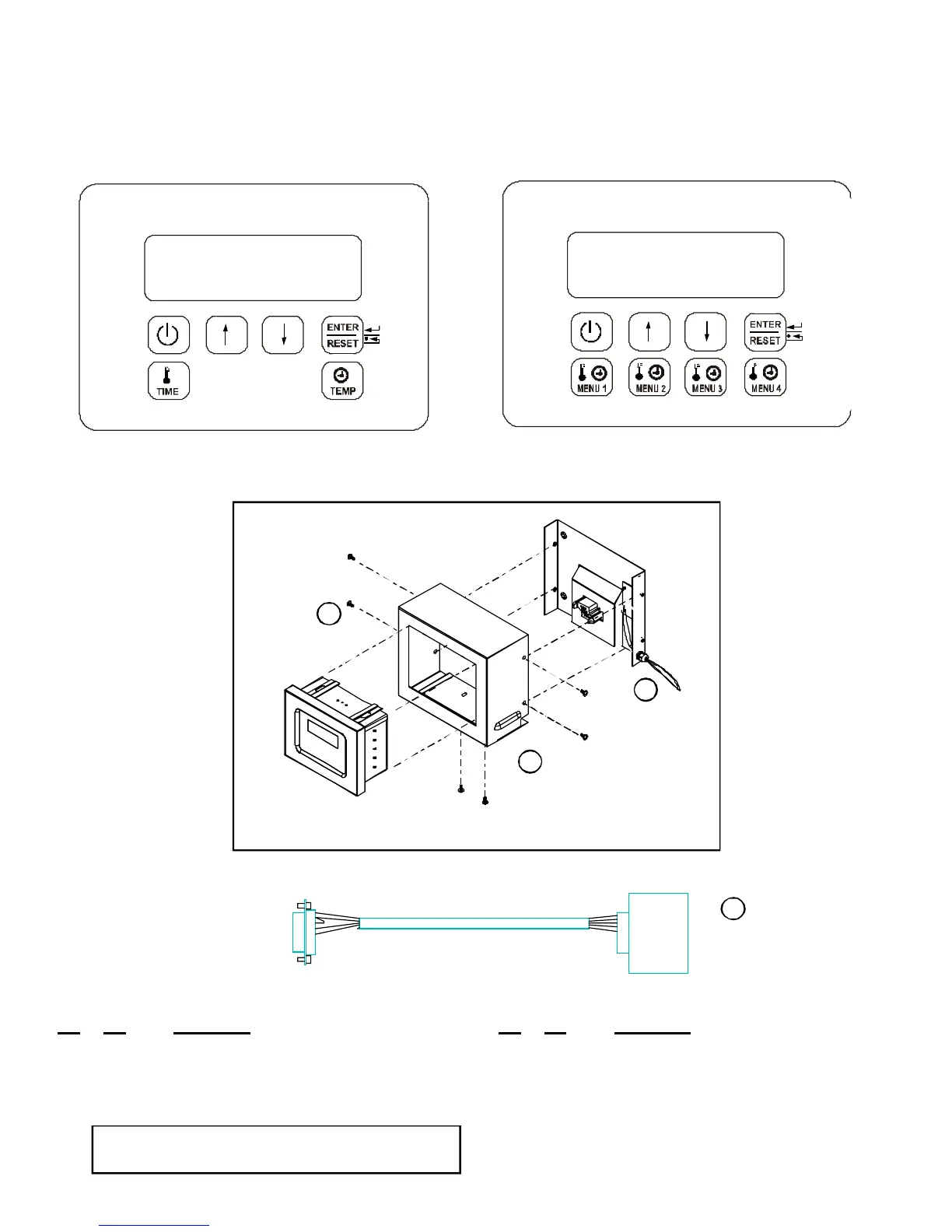

FRONT VIEW OF "MANUAL" CONTROL
OPTION
1
M10137
Manual Control Assy, Remote
or
M10138
Menu Control Assy, Remote
FRONT VIEW OF "MENU" CONTROL
OPTION
2
M9712
Docking Station
Remote Control
M9828
Remote Mounting
Bracket Assy
3
Ref. Part
No. No. Description
1 M10137 Control Assy, Manual
1 M10138 Control Assy, Menu
2 M9712 Docking Station, Remote Control
3 M9828 Remote Mounting Bracket Assy
NOTE: Decals are not available separately. You must
purchase the entire control assy.
AUGUST 29, 2001 13 SG2136E & G
CONTROL COMPONENTS
DOMESTIC, EXPORT, AND CE
REMOTE CONTROL OPTION ONLY
Ref. Part
No. No. Description
M9836 Remote Cable Assy, 10 foot
M9837 Remote Cable Assy, 50 foot
M9722 Harness, PLC to Interface Board4
4 M9723 Harness, Display
M9836 Remote Cable Assy, 10 foot
M9837 Remote Cable Assy, 50 foot
M9722 Harness, PLC to Interface Board
M10151 Power Circuit Board, Remote Controls
M10153 Power Circuit Board, Integral Controls
4
M9723
Harness, Display
