DOOR COMPONENTS

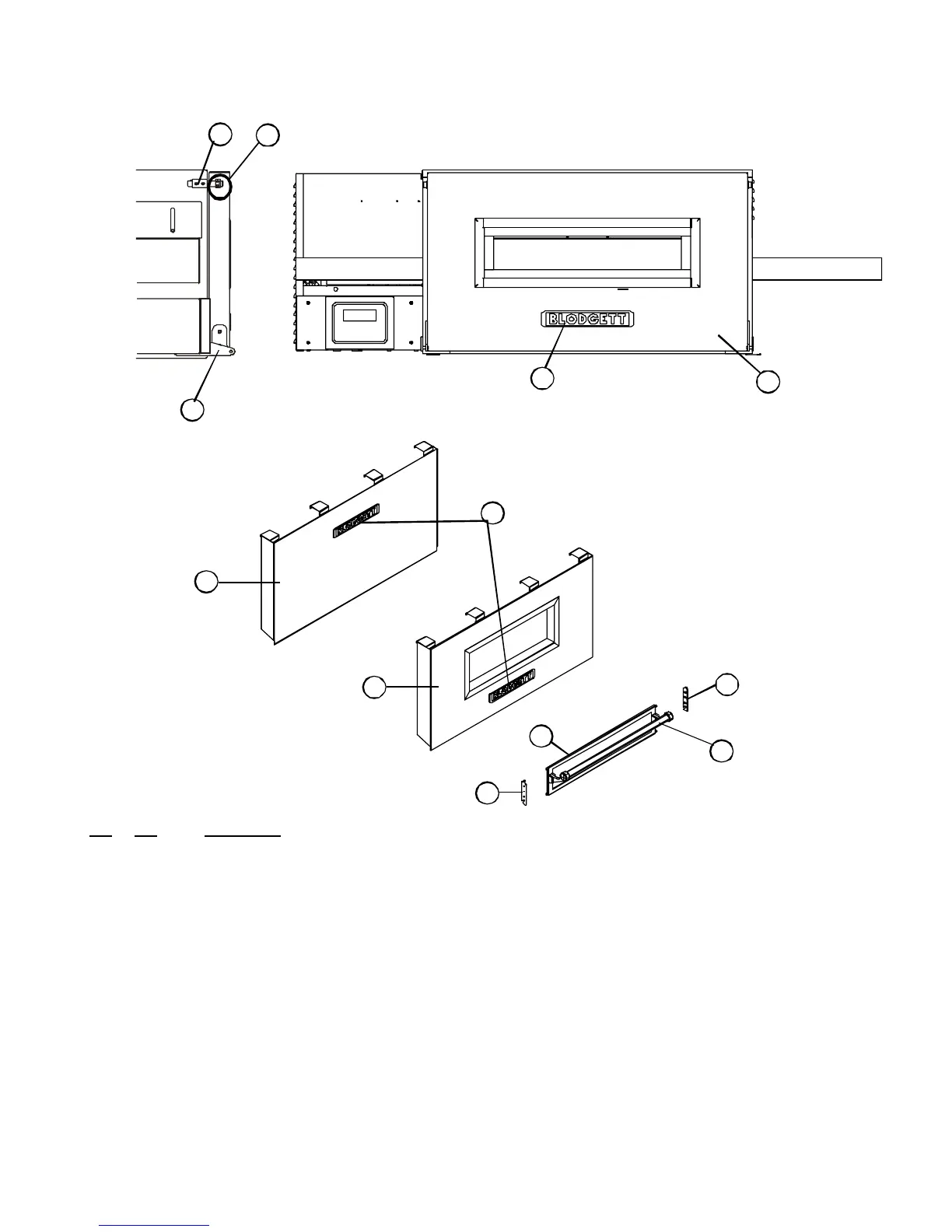

EXPLODED VIEW
Ref. Part
No. No. Description
1 M10257 Latch, Access Panel
2 M10251 Latch Keeper, Access Panel
3 M2398 Hinge Pin, LH
3 M2399 Hinge Pin, RH
3 M2801 Hinge Pin Kit, RH & LH
Contains 1 each of M2398 & M2399
4 M10281 Access Panel w/sandwich door
M10272 Access Panel w/o sandwich door,
not pictured
5 M7000 False Front, Solid
6 M7001 False Front, w/sandwich door opening
7 16470 Nameplate
8 M10290 Sandwich Door, Glass 22" w/handle
9 M4582 Pivot Plate, for sandwich door LH
10 M4581 Pivot Plate, for sandwich door RH
11 M4275 Handle Kit, for sandwich door
1
M10257
Latch
9M4582
Pivot Plate LH
11
M4275
Handle Kit, 22"
10
M4581
Pivot Plate RH
8
M10290
Sandwich Door,
Glass 22"
6
M7001
False Front,
for sandwich
door
5
M7000
False Front,
Solid
7
16470
Nameplate
2
M10251
Latch Keeper
M2398
Hinge Pin, LH
M2399
Hinge Pin, RH
(Kit M2801 includes 1 each)
3
L.H. SIDE
VIEW OF
ACCESS
P
ANEL
4
M10281
Access Panel w/door, shown
or
M10272
Access Panel, w/o door
FRONT VIEW OF ACCESS PANEL
1016470
Nameplate
AUGUST 29, 2001 15 SG2136E & G
