Blodgett SG2136 E & G - Domestic Gas Burner Components; M8999 Gas Valve, Main; M9887 Blower Motor Assy; M10211 Burner Assy

AUGUST 29, 2001 8 SG2136E & G

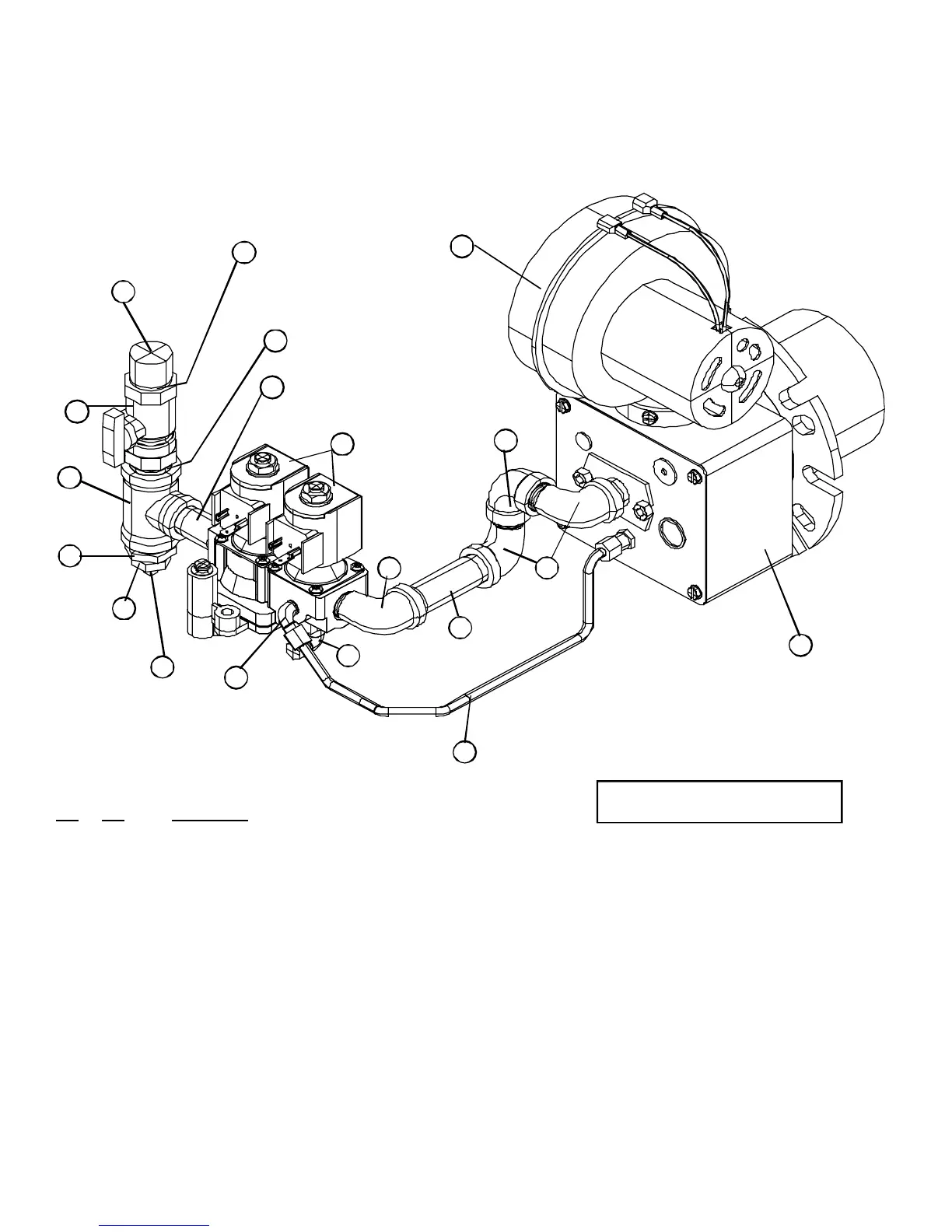

GAS BURNER COMPONENTS
DOMESTIC OVENS
1
M3219
Plastic Cap
6
4588
Nipple, 3/4 NPT
7
M0282
Gas Valve,
Manual
8
M8999
Gas Valve, Main
LP & Nat
6
4588
Nipple, 3/4 NPT
2
1003
Tee 3/4
3
17876
Bushing
17
M8690
Bushing
1/2x 1/8
5
M0281
Plug
9
21225
Elbow
10
M0317
Elbow
11
R5347
Nipple
12
597
Ell, 90º
16
33488
Flex
Tubing
14
M10211
Burner Assy
13
M9887
Blower Assy
Ref. Part
No. No. Description
1 M3219 Plastic Cap
2 1003 Tee, 3/4
3 17876 Bushing 3/4 x 1/2
4 10809 Nipple, Pipe 1/2 x 2
5 M0281 Plug 1/8
6 4588 Nipple 3/4"
7 M0282 Gas Valve, Manual
8 M8999 Gas Valve, Main LP & Nat
9 21225 Elbow 1/4 x 1/8
10 M0317 Elbow 1/2 NPT Street Qty 3 per oven
11 R5347 Nipple 1/2 NPT x 3.00
12 597 Ell, Black 90º
13 M9887 Blower Motor Assy
14 M10211 Burner Assy
M0415 Flame Sensor, not pictured
M10593 Pilot Burner & Ignitor Assy, NAT
M10594 Pilot Burner & Ignitor Assy, LP
15 M2835 Elbow 1/8
16 33488 Flex Tubing 1/4 x 12"
17 M8690 Bushing 1/2 x 1/8
4
10809
Nipple, Pipe1/2 x 2
15
M2835
Elbow 1/8
NOTE: M10215, Complete Stack Assy
Nat & LP
10
M0317
Elbow
