4-7
PASSENGER AREAPASSENGER AREA

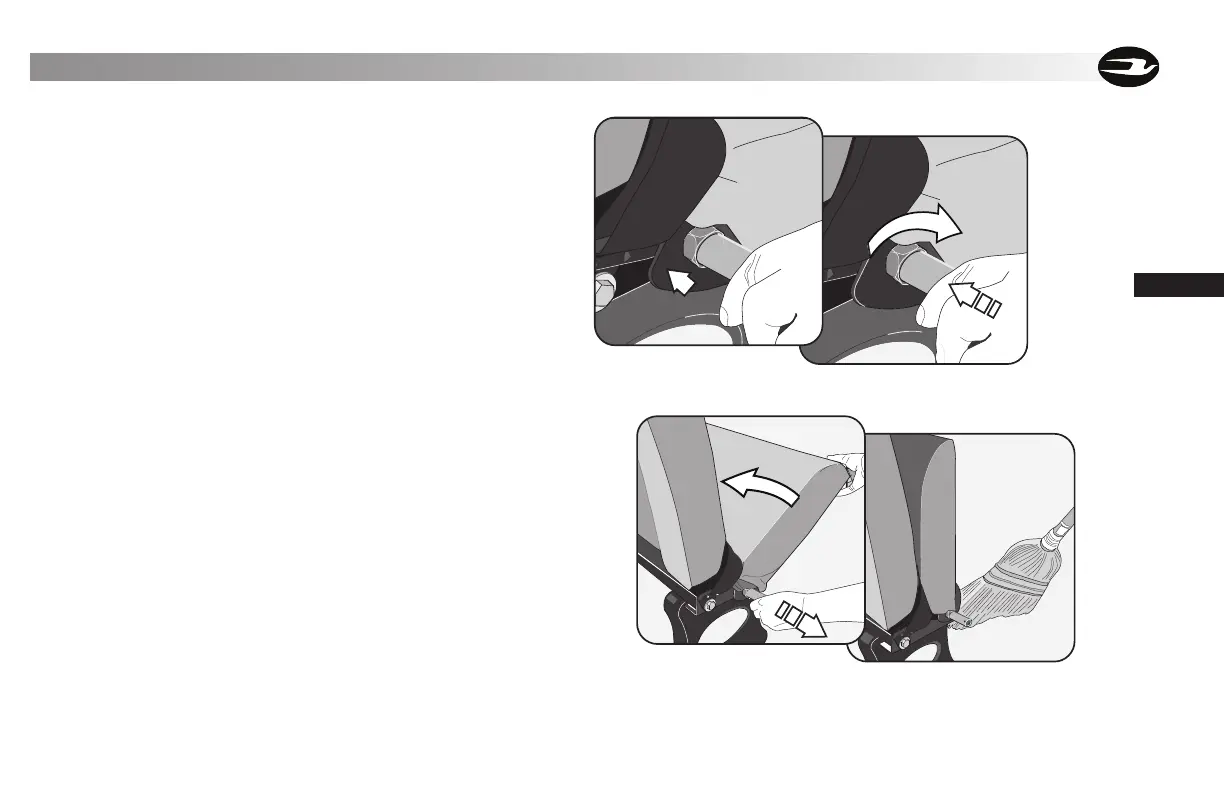

…push in and turn clockwise until it locks…
2. At the center of the tilt latch is a spring loaded pin
which engages the cushion assembly’s frame to
latch the cushion in either the horizontal or vertical
position. Insert the tool into the socket of the latch
and while pushing in, turn the tool clockwise until
it drops and locks behind the ears on the plunger.
3. Grasping the tool, pull outward against its spring-
loaded pressure, toward the center of the aisle.
4. While applying outward pressure, begin to lift the
front of the cushion assembly. It is not necessary to
continue holding the tool outward throughout the
cushion’s movement. Tool can remain in tilt latch
after you release your grip.
5. Continue lifting the front edge of the cushion as-
sembly until it latches in an almost vertical position.
Insert the tool into the latch socket…
…pulling outward, lift the front of
the cushion slightly.
...continue to raise the cushion until it snaps
into the upright position.
