Operating Instructions and Parts List AR388
9
www.ar-blueclean.com

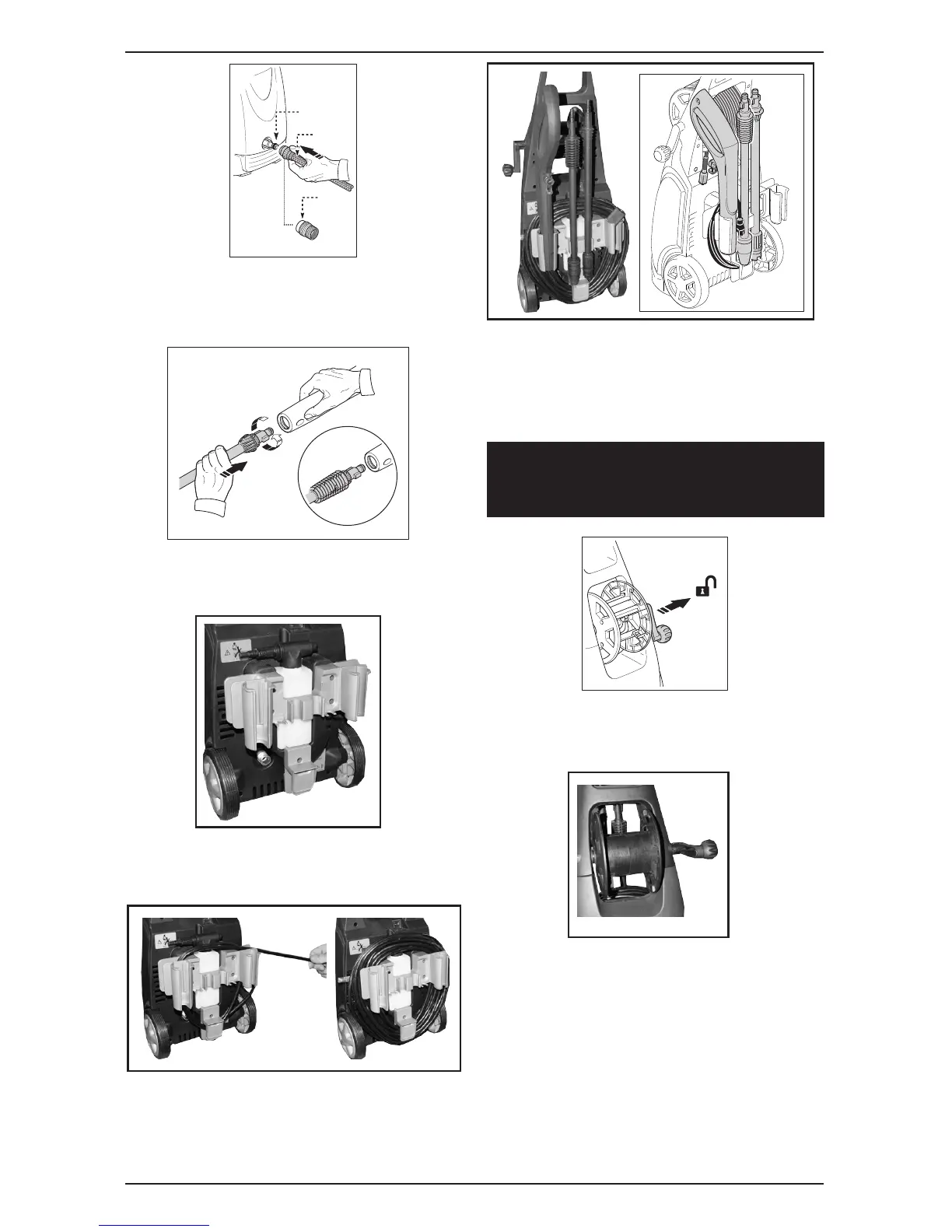

24. Disconnect garden hose.
25. Remove garden hose adapter
(optional).
26. Push and turn counterclockwise
to remove.
27. Place detergent bottle into ac-
cessories holder.
28. Wrap power cord around acces-
sories holder in slots proved on
sides and bottom.
29. Place gun in left slot, lances
are placed in center slots and
garden hose adapter is placed
in right slot on holder.
30. Unlock hose reel by pulling
handle out.
31. Turn handle so knob is point-
ing to the front of the machine.
NOTE: Hose reel is for storage
only.
Pump
Hose
Garden
Hose
Adapter
hoSe reel inStrUctionS
(hoSe reel IS for STorage only)
