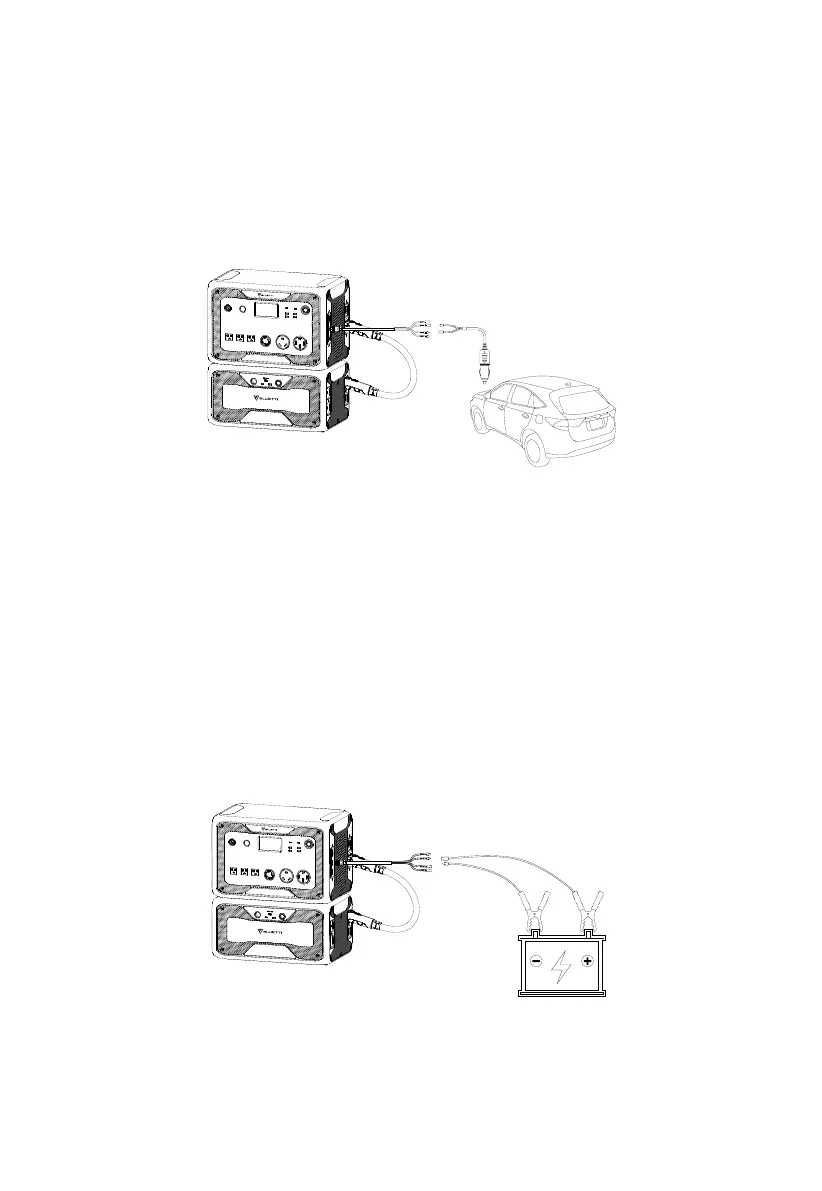

Connect the AC500 to the vehicle plug-in cigarette lighter port via the DC input cable and car
charging cable.
Note: Set the ‘Others’ as DC1/DC2 input source to enable car charging.
The Max. input current is 8.2A.
Car Charging
Connect the AC500 to the vehicle plug-in cigarette lighter port via the DC input cable and
lead-acid battery charging cable.
Note: Set the ‘Others’ as DC1/DC2 input source to enable lead-acid battery charging.
Clamp the positive connector (red) to the positive battery terminal and negative (black) to
the other.
The Max. input current is 8.2A.
Lead-acid Battery Charging
The lead-acid charging cable is for charging AC500 ONLY.
16
