Bluetti AC500 - Split Phase System

24
Split Phase System

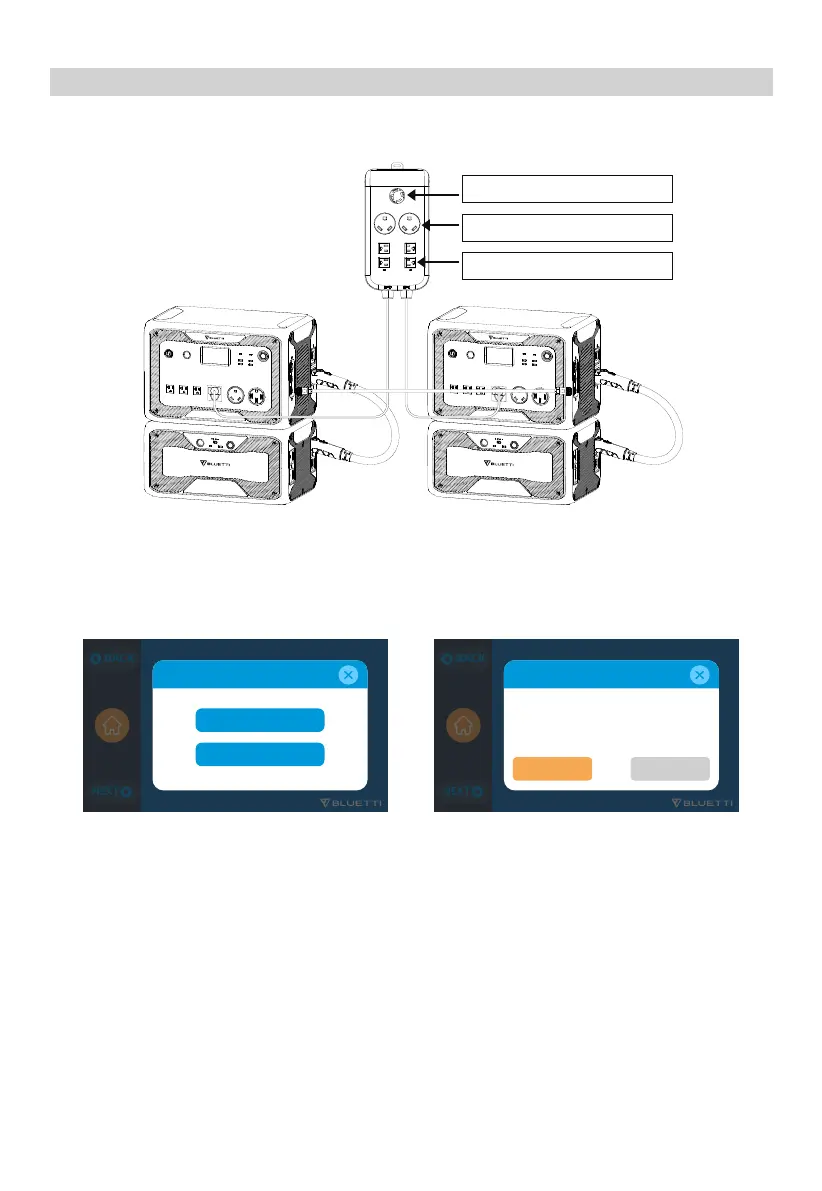

Connect two AC500 together with the P030A split phase fusion box and communication cable.
Go to ‘Advanced Setting’, tap ‘Next’ and set both AC500 to ‘split phase’ .
Choose one to be the ‘Master’ unit, the other ‘Slave’.
If the connection fails, clear the alarm history and reconnect.
* L1/L2: Line, 3-phase N: Neutral PE: Protective earth.
Note: The system can be turned on/off ONLY on the ‘Master’ unit.
WARNING: With the split phase P030A fusion box, the output power of both ‘Master’ and ‘Slave’
units can be set to a maximum of 3600W. Otherwise, it will cause damage to the EP500
and fusion box.
If you insist on charging AC500 in the system, ensure the sequence of L1, L2, and N wires*
is correct.
*1 NEMA L14-30 receptacle, 30A
*2 NEMA TT-30 receptacle, 30A
*4 Standard AC receptacle, 20A

