• If the D100P is located far away from the PV modules, use the MC4 extension cables to
connect them (red for positive and black for negative).

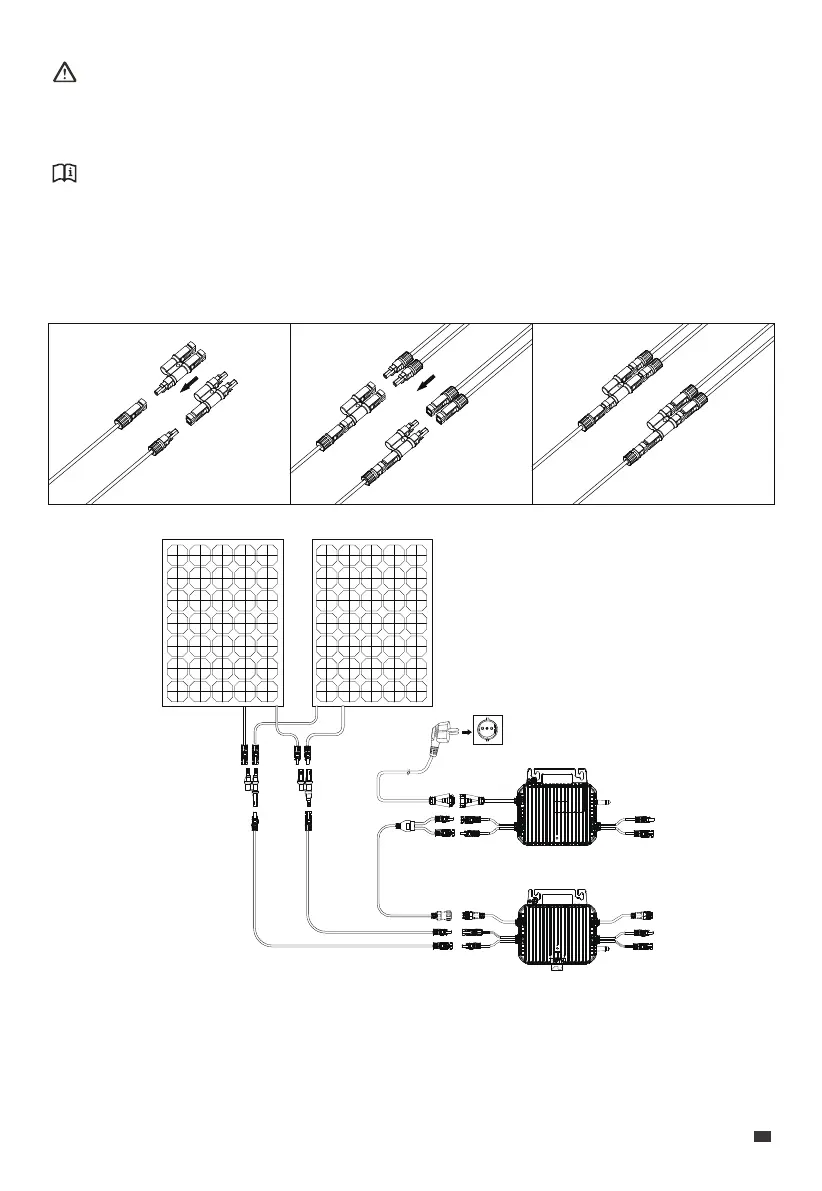

• When connecting two PV modules to a D100P, use the MC4 splitter, as shown in the
figures below.
Hint
Warning: Ensure that the open circuit voltage of each PV modules meets the
requirements of D100P's input voltage specified in the "Specifications" section, or it
may damage your D100P.
