© Julius Blum GmbH

5

155° CLIP top Zero Protrusion hinge

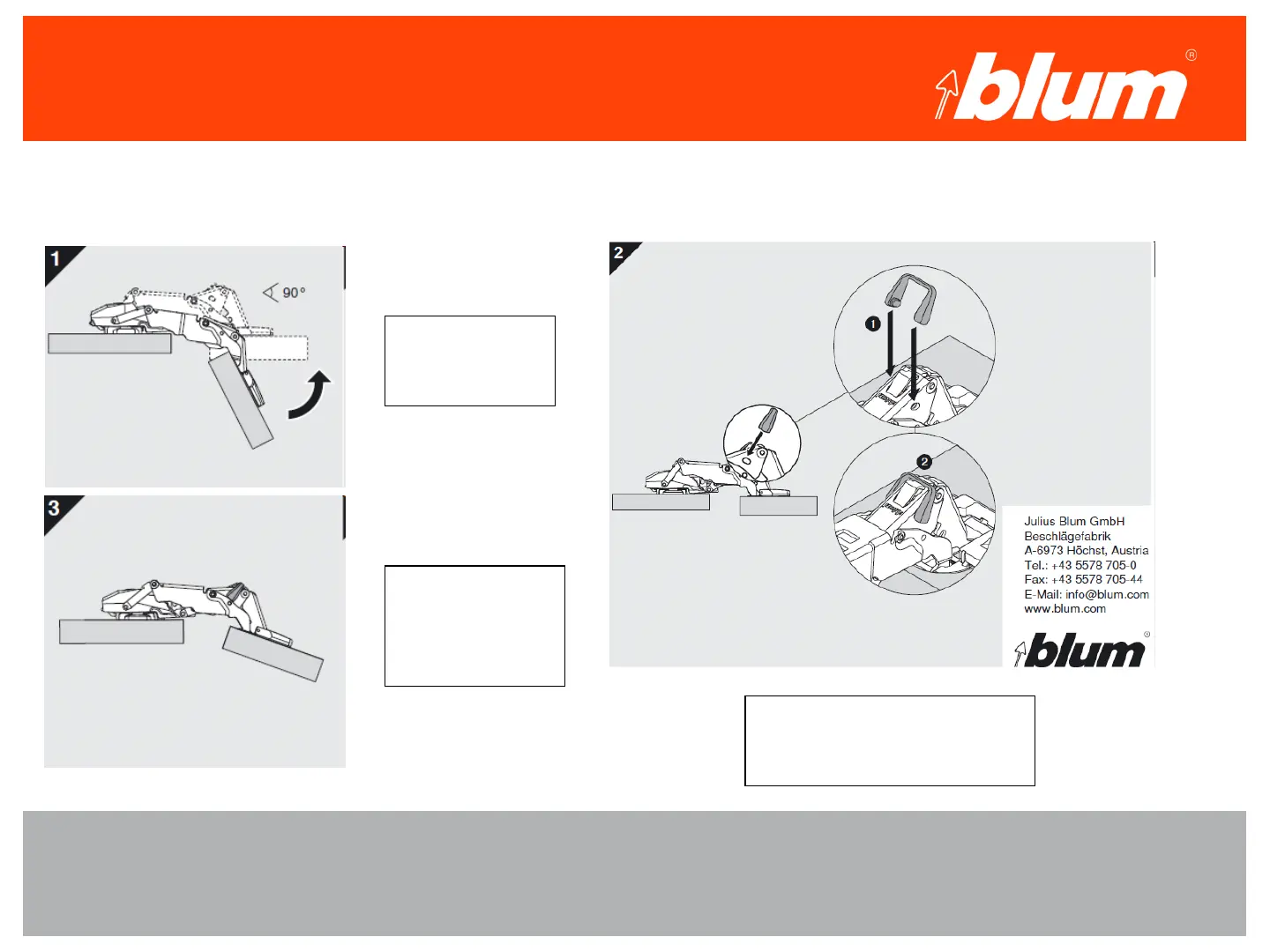

Opening Angle Stop for 155° CLIP top Zero Protrusion hinges,

110° restricted opening – 70T7503N

•Open hinge

arm to 90◦

angle opening

•Install stop into the oval

holes below the raised

Blumotion trigger point

•Hinge will now

be restricted to

110◦ angle

opening
