107° CLIP top hinge
 Opening Angle Stop for 107° CLIP top hinges,
86° restricted opening – 74.1103

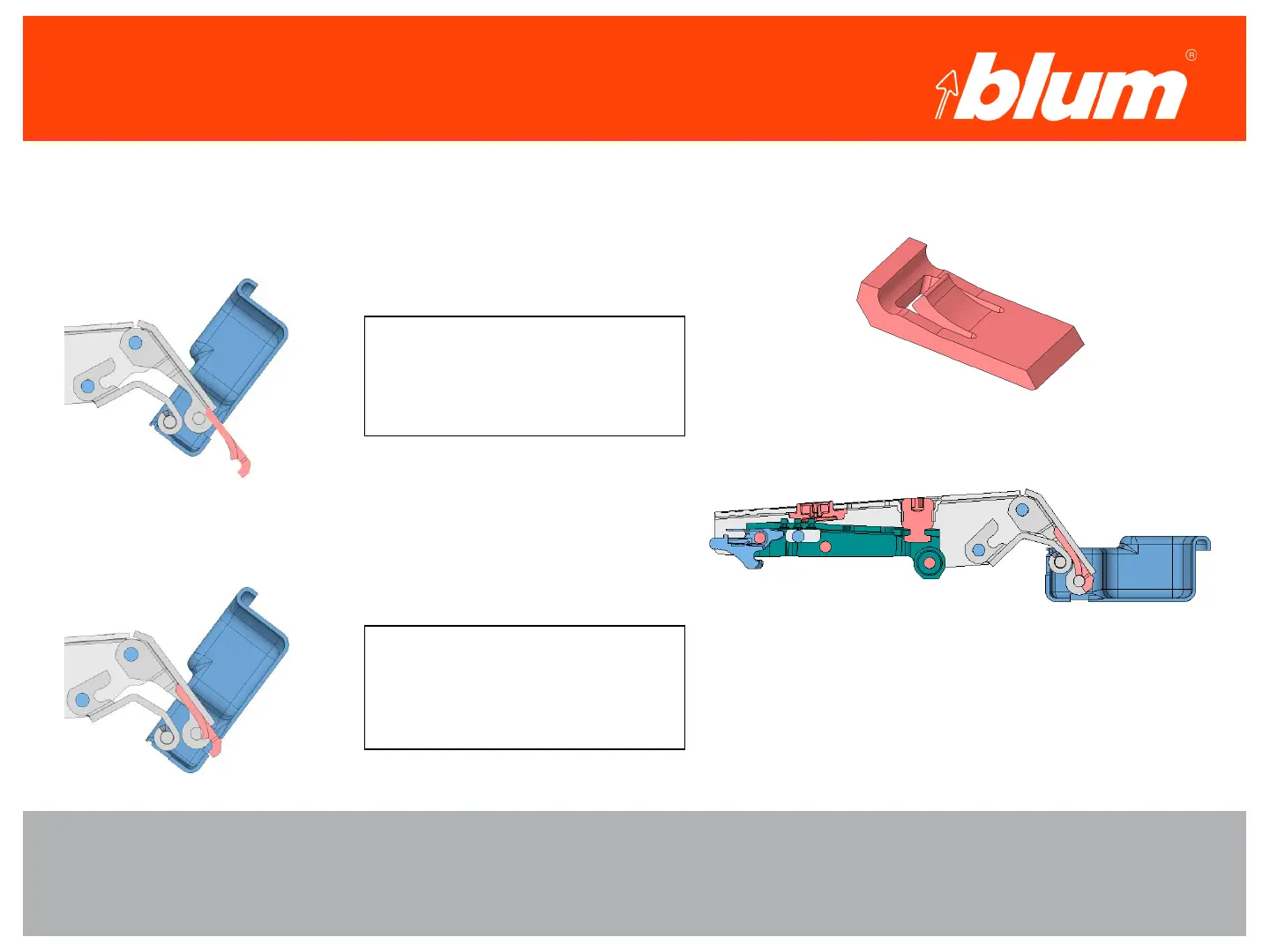

Insert the opening angle stop
into slot on the underside of
hinge cup, with the tab facing
toward the linkage pins.
Push the opening angle stop
into the slot and ensure the tab
clips over the linkage pin to lock
it in position.
