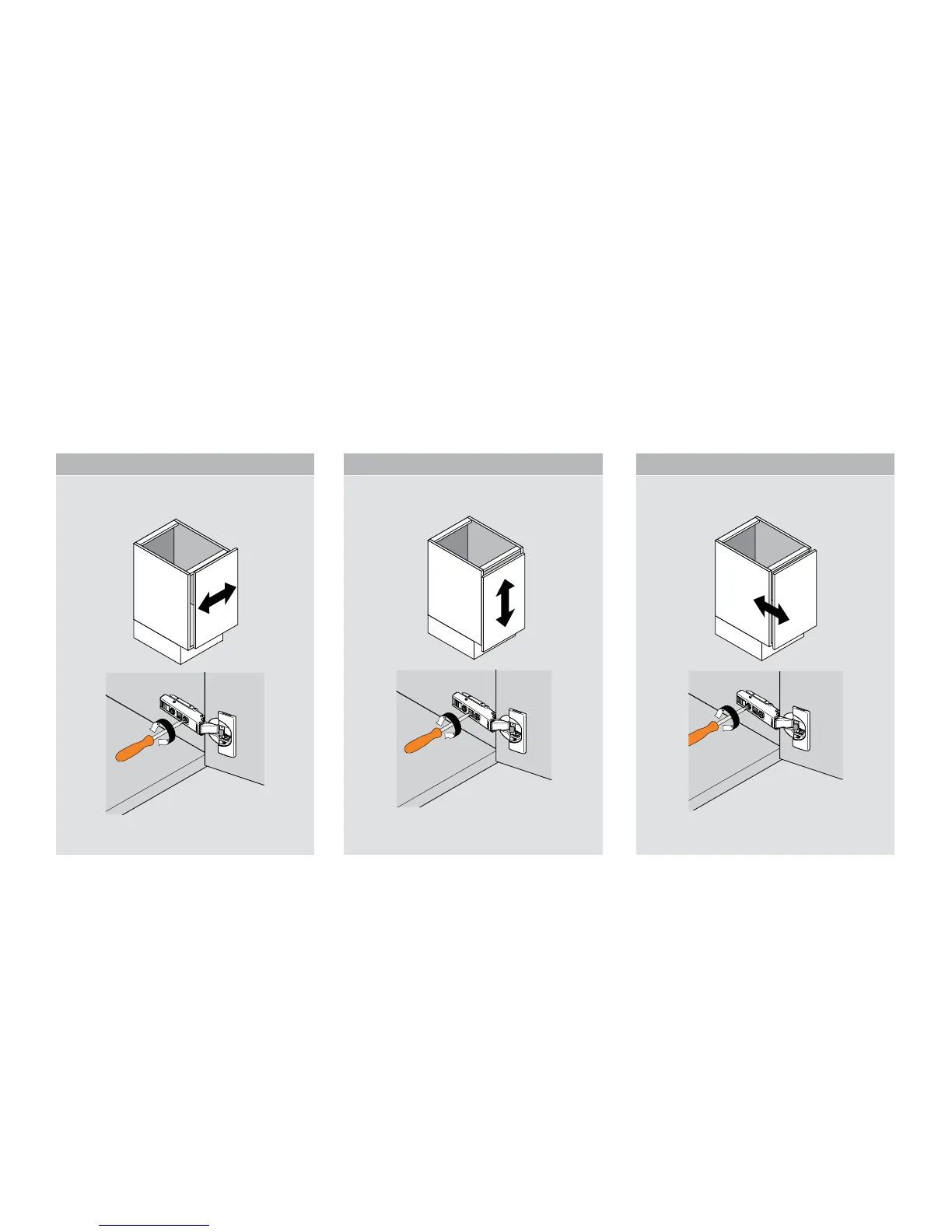

Three-dimensional adjustment
Depth adjustment
Rotate rear spiral tech cam screw to adjust
door gap (+3 mm, -2 mm).
Side adjustment
Rotate front screw to increase or decrease
door overlay (±2 mm).
Height adjustment
Rotate cam screw on mounting plate to
adjust door position (±2 mm).
On non-cam mounting plates, loosen
screws, adjust door and retighten screws.
CLIP top BLUMOTION
Subject to technical modifications wihtout notice. © 2010
LIT.HNG5100.08.10
