N
M
K
H
Drill Ø10mm x 12mm
deep for brackets
with dowels
Blum
assembly
devices make
marking and drilling simple.
Pre-drill holes
in back if using
system screws
3
1
2
1.
2.
3.
4.
5.
6.

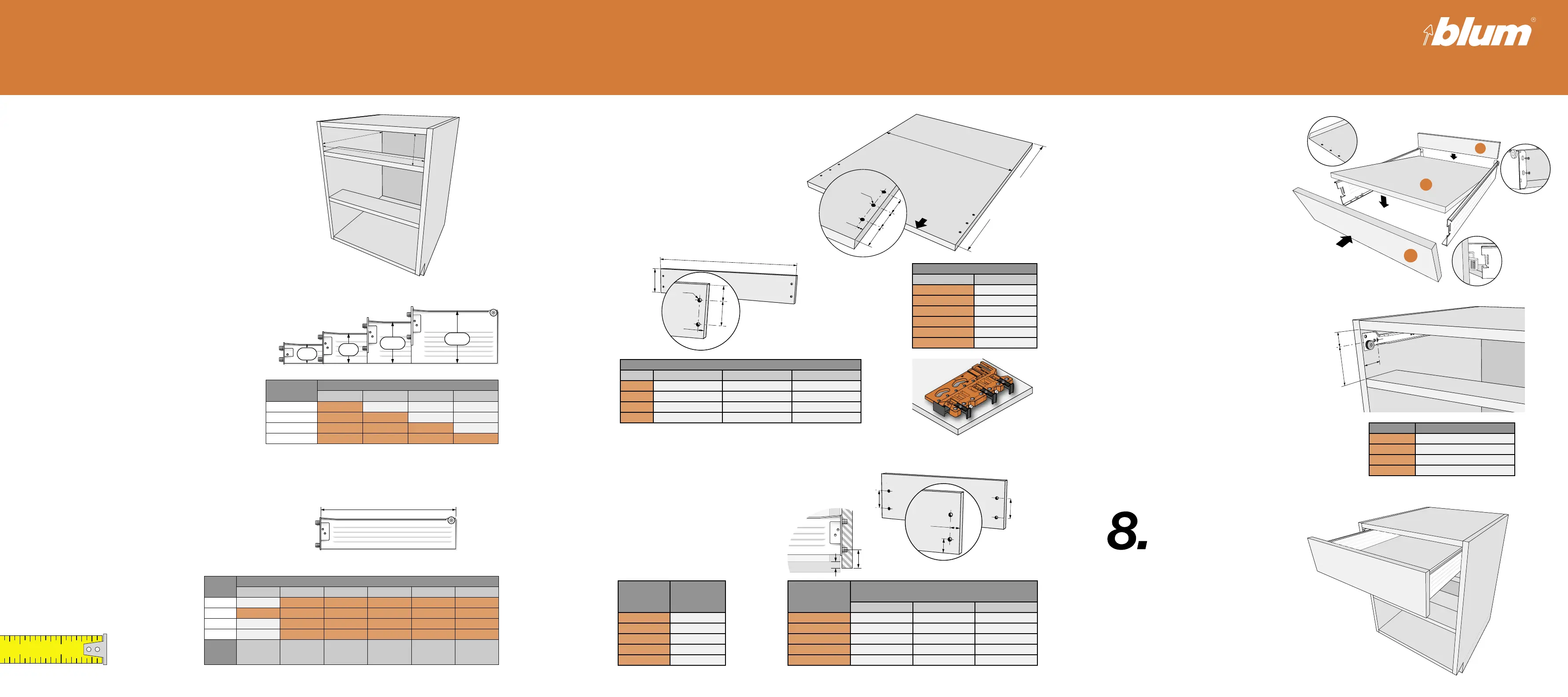

METABOX: Steps for frameless cabinets
7.
Measure the opening
This will help you in determining
which METABOX drawer will work best for
the cabinet opening
Determine which METABOX
drawer height to use
Choose between the four heights that are
offered within the METABOX system
Min. opening
height
Available heights
N M K H
78
Yes No No No
110
Yes Yes No No
142
Yes Yes Yes No
174
Yes Yes Yes Yes
Heights
Available lengths
270 350 400 450 500 550
N
No Yes Yes Yes Yes Yes
M
Yes Yes Yes Yes Yes Yes
K
No Yes Yes Yes Yes Yes
H
No Yes Yes Yes Yes Yes
Min.
inside
depth
277 357 407 457 507 557
Drawer bottoms
Runner length Bottom length
550 548
500 498
450 448
400 398
350 348
270 268
Drawer backs
Heights 13mm bottoms 16mm bottoms 19mm bottoms
N
42 39 36
M
74 71 68
K
106 103 100
H
138 135 132
Side
overlay
Screw or
drilling
location
13 21.5
14 22.5
16 24.5
17.5 26
19 27.5
Bottom
overlay
Screw or drilling location
N and M K H
13 26.5 58.5 90.5
14 27.5 59.5 91.5
16 29.5 61.5 93.5
17.5 31 63 95
19 32.5 64.5 96.5
Heights Mounting position
N
54
M
86
K
118
H
150
Assemble the drawer
Assembly is made easy with the
METABOX C15 drawer system
1 - Place drawer bottom on pins
2 - Attach drawer back with screws
3 - Install front xing brackets and
attach front to drawer sides
Mount the cabinet proles
Attach the cabinet proles to the
cabinet
Cut the bottom and back
components
No matter what the material or the size of
the cabinets, components can be cut and
drilled quickly for easy assembly
(minimum 13mm material)
Determine front xing bracket
locations
Use the tables below to easily locate
the center of the bottom xing point
Dimensions in Millimeters
Determine which METABOX
drawer length ts the opening
Choose the correct runner
length to best t the inside
depth of the cabinet
Install the drawer
Now that the drawer is built and the
cabinet proles are in place, the
drawer can be inserted. Final side
and height adjustments can be made
via the front xing brackets.
These drilling locations are directly related to the prole locations in step 7
