BLUM TANDEM plus BLUMOTION 563F Installation Instructions

TANDEM plus BLUMOTION
Subject to technical modifications without notice. © 2015 Blum Inc.
Dimensions in millimeters (inch equivalents as noted)
3

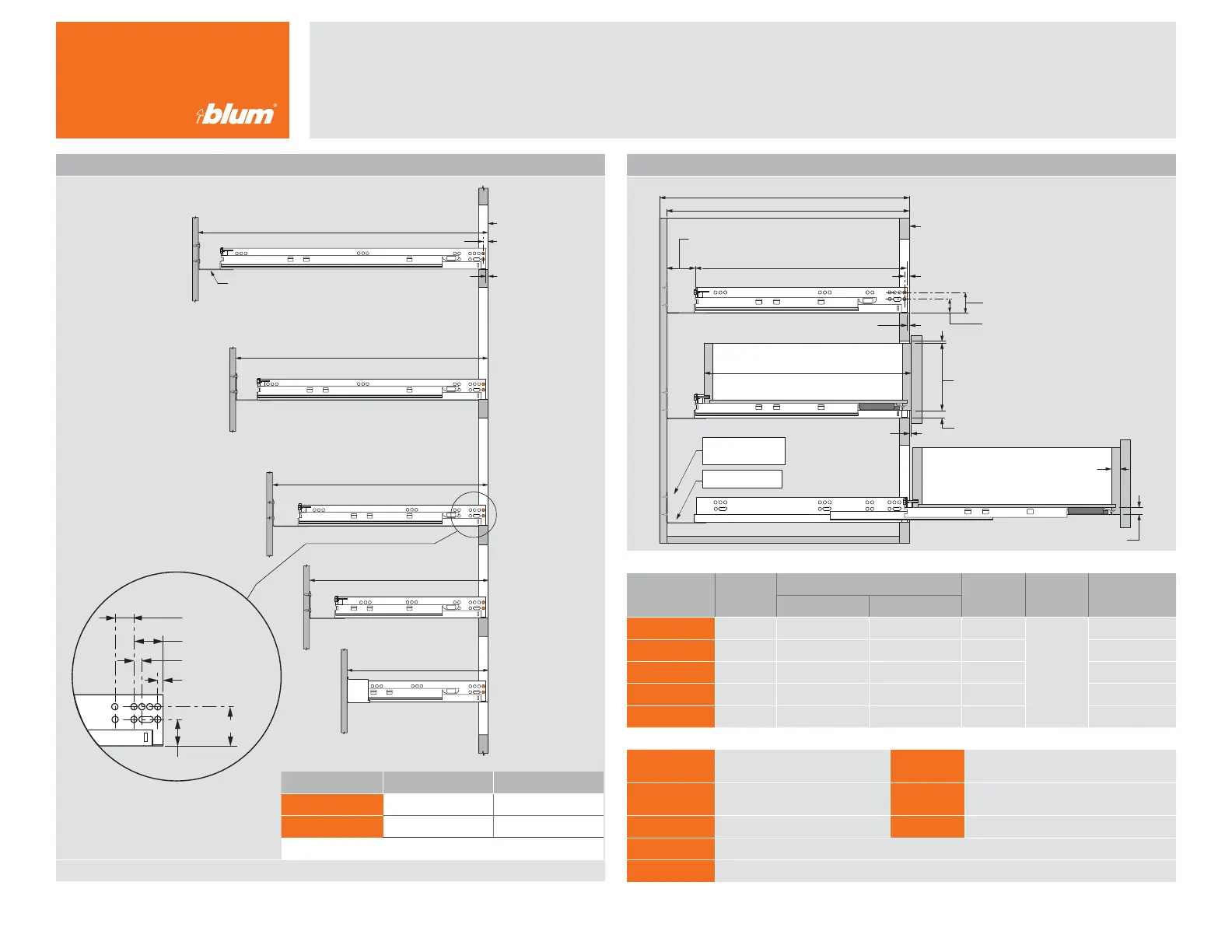

Runner mounting specifications
Side view
NOTE:
Orange dots indicate screw locations required to meet specified load capacities
Cabinet and drawer specifications
Side view
563F3050B
563F3810B
563F5330B
533 (21") drawer
mounting position 10 (13/32")
setback 3
(1/8")
rear bracket
cabinet face
inside cabinet depth range
557 to 599 (21-15/16" to 23-19/32")
328 to 370
(12-29/32" to 14-9/16")
404 to 446
(15-29/32" to 17-9/16")
563F2290B10
*see below
563F4570B
457 (18") drawer
480 to 522 (18-29/32" to 20-9/16")
Detail of front holes
7 (9/32")
32 (1-1/4")
9 (11/32") typical
37 (1-15/32")
25 (31/32")
34 (1-11/32")
305 (12")
cabinet
381 (15")
cabinet
457 (18")
cabinet
533 (21")
cabinet
610 (24")
cabinet
381 (15") drawer
305 (12") drawer
229 (9") drawer
TANDEM plus
BLUMOTION
Cabinet
depth
Inside cabinet depth
Drawer
length
Maximum
drawer
thickness
Runner
length
Maximum Minimum
563F5330B
610 (24") 599 (23-19/32") 557 (21-15/16") 533 (21")
19 (3/4")
548 (21-9/16")
563F4570B
533 (21") 522 (20-9/16") 480 (18-29/32") 457 (18") 471 (18-17/32")
563F3810B
457 (18") 446 (17-9/16") 404 (15-29/32") 381 (15") 395 (15-9/16")
563F3050B
381 (15") 370 (14-9/16") 328 (12-29/32") 305 (12") 319 (12-9/16")
563F2290B10
305 (12") 299 (11-25/32") 266 (10-15/32") 229 (9") 259 (10-3/16")
*Bracket Maximum depth Minimum depth
295.3700.21
282 (11-3/32") 266 (10-15/32")
295.3700.22
299 (11-25/32") 283 (11-5/32")
NOTE: *These brackets are for 563F2290B10 only
T51.1901R
Locking device with side-to-side
adjustment (right)
295.3750.01
Rear mounting bracket, non-handed
T51.1901L
Locking device with side-to-side
adjustment (left)
295.3700.21
563F2290B10 rear bracket, non-handed
T51.1801R
Locking device (right)
295.3700.22
563F2290B10 rear bracket, non-handed
T51.1801L
Locking device (left)
606N or 606P
#6 Wood screw (for mounting runner to cabinet side, rear brackets and locking devices)
Face frame application
bottom clearance 14 (9/16")
minimum top clearance 6 (1/4")
setback 3 (1/8")
bracket range
6 to 48
(1/4" to 1-7/8")
front gap 1.5 (1/16")
25 (31/32")
37 (1-15/32")
Target Drawer
Length
drawer thickness
bottom recess
13 (1/2")
maximum drawer height =
opening minus
20 (25/32")
rear mount bracket
295.3750.01
mounting screws
606N or 606P
(#6 x 5/8" wood screw)
mounting position 10 (13/32")
cabinet depth
cabinet face
inside cabinet depth
runner length
drawer length
