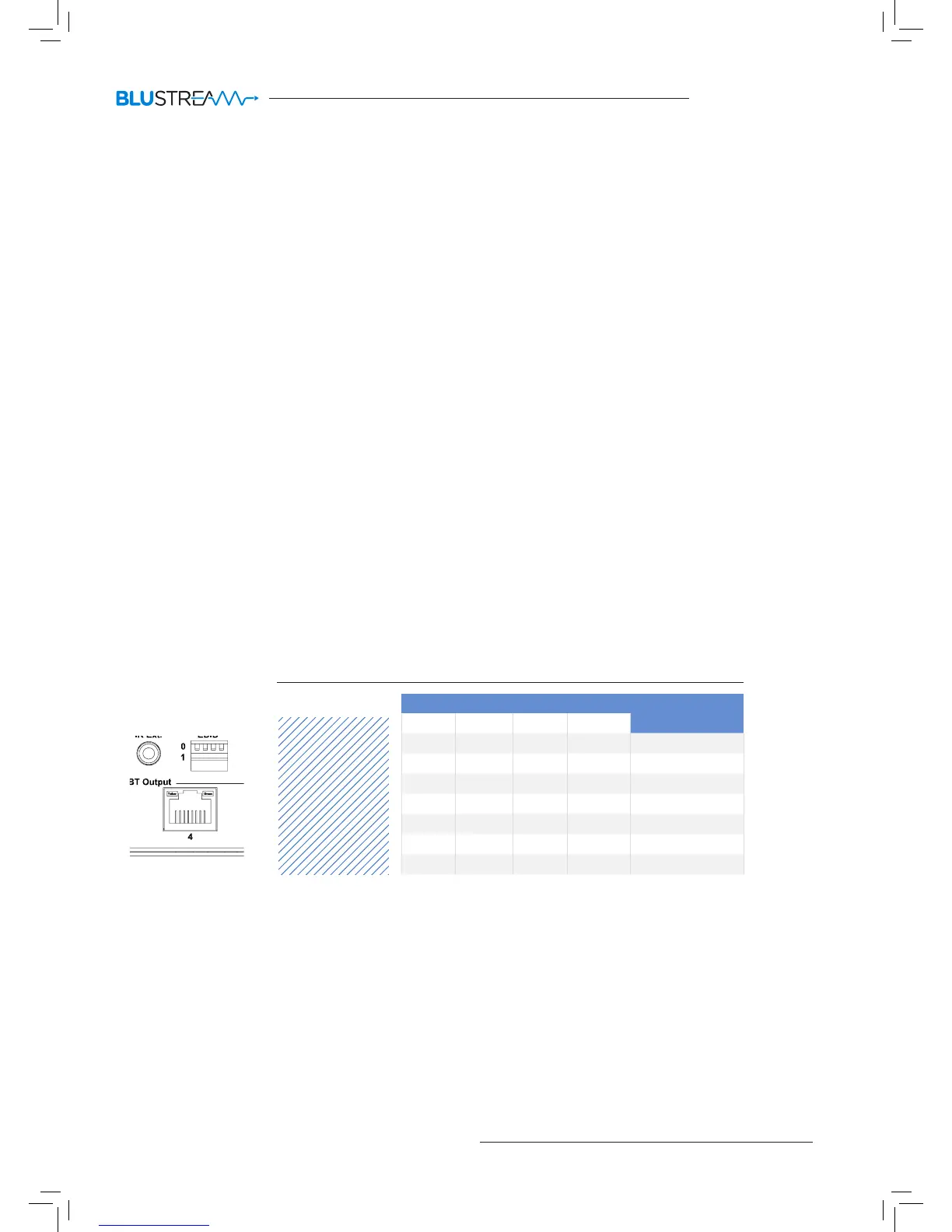

Global EDID settings
DIP ON ▼/OFF▲ SWITCHING POSITIONS
EDID TYPE3 2 1 0
OFF OFF ON OFF 1080p/2.0ch
OFF ON OFF OFF 1080p/5.1ch
OFF ON ON OFF 1080p/7.1ch
ON OFF OFF OFF 1080i/2.0ch
ON OFF ON OFF 1080p 3D/2.0ch
ON ON OFF OFF 4K 30Hz/2.0ch
OFF OFF OFF OFF Copy Display EDID
EDID (Extended Display Identification Data) is a data structure that is used between a display and a source.
This data is used by the source to find out what audio and video resolutions are supported by the display then
from this information the source will discover what the best audio and video resolutions need to be outputted.
While the objective of EDID is to make connecting a digital display to a source a simple plug and play
procedure issues do arise when multiple displays or video matrix switching is introduced because of the
increased number of variables.
By pre-determining the video resolution and audio format of the source and display device you can reduce the
time need for EDID hand shaking thus making switching quicker and more reliable.
Configuration of Matrix EDID settings can be achieved in one of five ways:-
1 Using Matrix PC Soware (See ‘Blustream Matrix Soware Guide’ for further details available at
www.blustream.co.uk)
2 Using Matrix web browser interface (See ‘Blustream Web Browser Interface Guide’ for further
details available at www.blustream.co.uk)
3 Using Matrix Front Panel Buttons (For further details see page 7)
4 Using Supplied Blustream REM88 Matrix IR Remote Control (For further details see page 10)
5 Using dip-switches on the rear panel of the HMXL88 V2 Matrix. Please see below table for global EDID
settings.
*Note - Once dip-switch settings have been made the HMXL88 V2 should be power cycled for settings to be applied.
EDID Control
Dip-switch position ‘0’ = O
Dip-switch position ‘1’ = On
To Next Page
