Matrix Front Panel Control

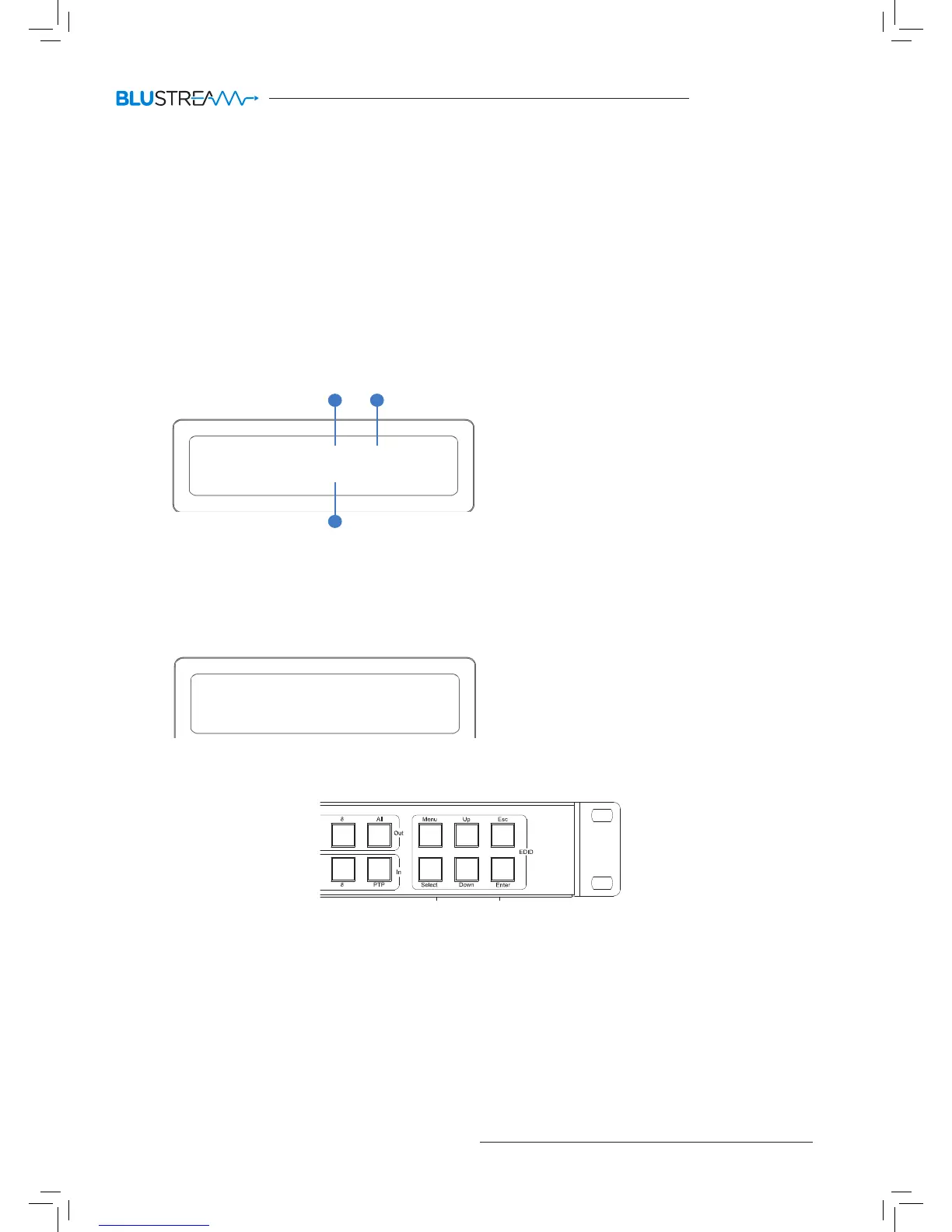

Front Panel Display - Input/Output selection
The following display shows current source input selection per zone output.
1. To change input selection first press ‘OUTPUT’ button (1-8)
2. Press desired ‘INPUT’ button (1-8)
3. An ‘X’ indicates that the zone output has been turned o.
Zones can be turned on/o using RS-232/TCP/IP commands.
Zone outputs can be forced back on by powering OFF/ON the matrix. All outputs will be turned on when powered up.
Zone outputs can be forced back on by pressing and holding ‘OUTPUT 1’ button on the front panel for 10 seconds. The matrix will
reset and all outputs will be turned back on.
OUT 1 2 x 4 5 x 7 8
IN 1 2 3 4 5 6 7 8
EDID: IN ALL
HDMI: 1080P 2CH
EDID Management - Global or individual input settings
The following characters show adjusting the EDID for ‘All’ inputs (Global). Current EDID value is set to 1080P & 2ch audio.
To change the input signal type using the Matrix front panel buttons press the following:-
Using Matrix Front Panel Buttons
a. Press MENU button
b. Panel will display ‘EDID settings’. Press SELECT button
c. Select the input you wish to fix the EDID on (1-8) or select ‘All’. Use UP/DOWN buttons to toggle selection and SELECT button to
confirm
d. Select video resolution required (4K, 1080p, 3D etc). Use UP/DOWN buttons to toggle selection and SELECT button to confirm
e. Select audio resolution required (2ch, 5.1 or 7.1). Use UP/DOWN buttons to toggle selection and SELECT button to confirm
f. Press the ESC button to exit
2
1
