MX44AB-V2
4x4 4K HDMI 2.0 Matrix - HDCP 2.2

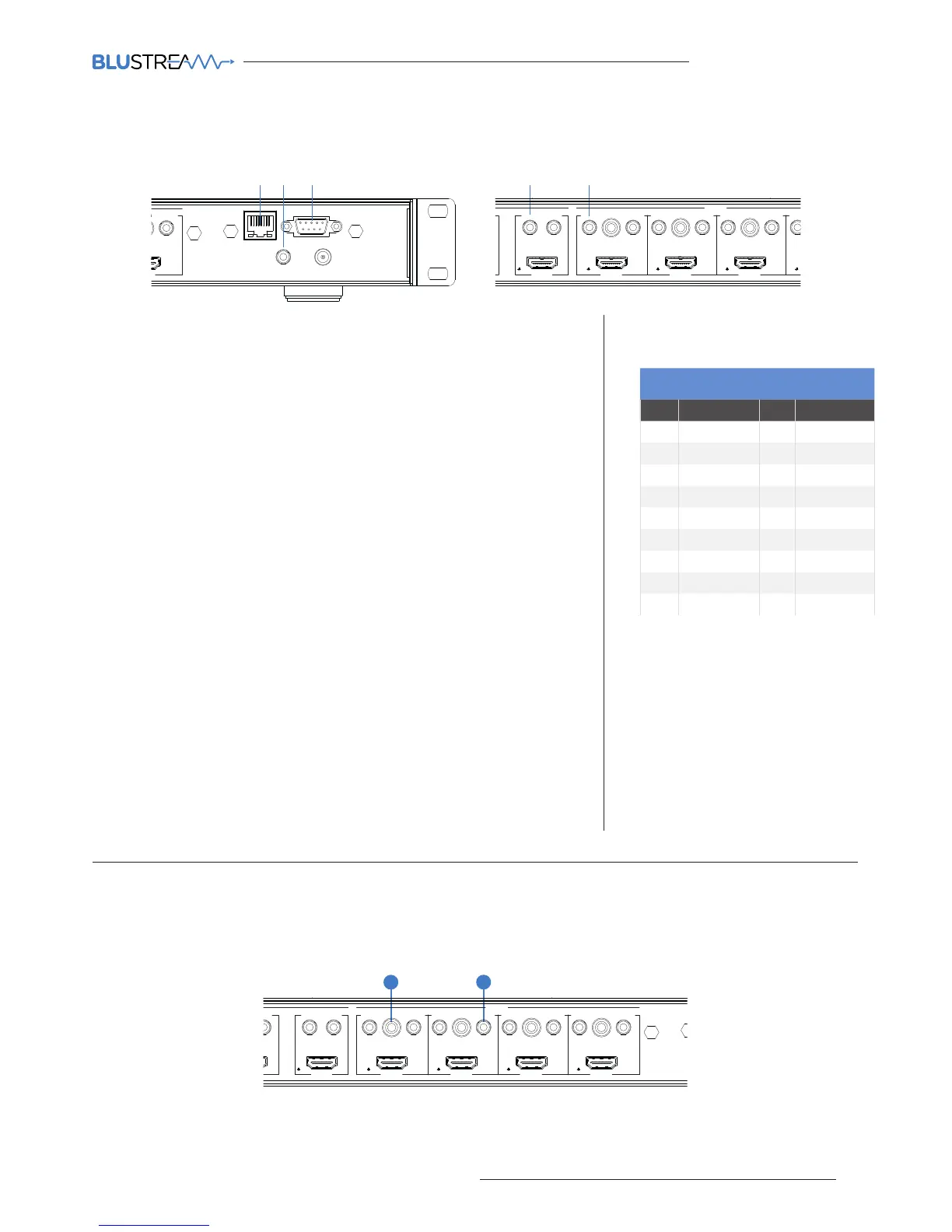

The MX44AB-V2 main communication ports are located on the rear panel and includes the following connections:-
Connections:
A. TCP/IP – For control of the Matrix (RJ45 Connector)
B. Global IR Input 3.5mm stereo jack - For control of the Matrix Switcher*
C. RS-232 – For control of the Matrix (9 pin serial connection)
D. IR Output (3.5mm mono jack) for routed IR control of source equipment*
E. IR Input (3.5mm stereo jack) for routed zone IR control INTO Matrix
*Note - Blustream products use 5V IR hardware. For further details please see
page 7 ‘Infrared Distribution’
Blustream MX44B-V2 Matrix is supplied with 5V IR emitters, Receivers and
IRCAB cables
TCP/IP
The Blustream MX44AB-V2 Matrix can be controlled via TCP/IP.
For the full list of protocols please see ‘RS-232 & Telnet Commands’ located at the
rear of this manual.
The MX44ABB-V2 Matrix features a built-in web browser user interface allowing
control and configuration of the matrix. For further details please see page 16
‘Web Browser Interface’.
A ‘straight-through’ RJ45 patch lead should be used
RS-232 2-Way
The Blustream Matrix can be controlled via a 9-pin serial cable.
For the full list of protocols please see ‘RS-232 & Telnet Commands’ located at the
rear of this manual.
Details of RS-232 pin assignment and communication are adjacent. Please note
that depending on your control device serial port pin configuration you may
require either a ‘Straight’ RS-232 cable or ‘Null-modem’ type.
MX44AB-V2 Control Ports
BLUSTREAM RS-232 REMOTE CONTROL
CONSOLE
PIN Assignment PIN Assignment
1 NC 1 NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 57600 bps
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
A B D EC
TCP/IP
DC 12VIR Ext.
RS232
IR TX L/R In
HDMI 1 HDMI 2
HDMI 3
HDMI 4
Input
IR TX L/R In IR TX L/R In
IR TX L/R In IR RX Coaxial
HDMI 1 HDMI 2 HDMI 3
HDMI 4
Output
L/R Out IR RX Coaxial L/R Out IR RX Coaxial L/R Out
IR RX Coaxial L/R Out
EDID
MX44AB-V2
4x4 4K HDMI 2.0 Matrix - HDCP 2.2
Audio Breakout
The MX44AB-V2 Matrix includes audio breakout from the selected HDMI input to associated analogue L/R audio and coaxial digital
outputs. Extracted audio will be concurrent with the corresponding HDMI video output.
1. Coaxial digital output - Output 1
2. Analogue fixed line level output 3.5mm stereo jack - Output 2
1
2
TCP/IP
DC 12VIR Ext.
RS232
IR TX L/R In
HDMI 1 HDMI 2
HDMI 3
HDMI 4
Input
IR TX L/R In IR TX L/R In
IR TX L/R In IR RX Coaxial
HDMI 1 HDMI 2 HDMI 3 HDMI 4
Output
L/R Out IR RX Coaxial L/R Out IR RX Coaxial L/R Out IR RX Coaxial L/R Out
EDID
MX44AB-V2
4x4 4K HDMI 2.0 Matrix - HDCP 2.2
