ME-GO SERIES SLIDING GATE OPENER USER MANUAL

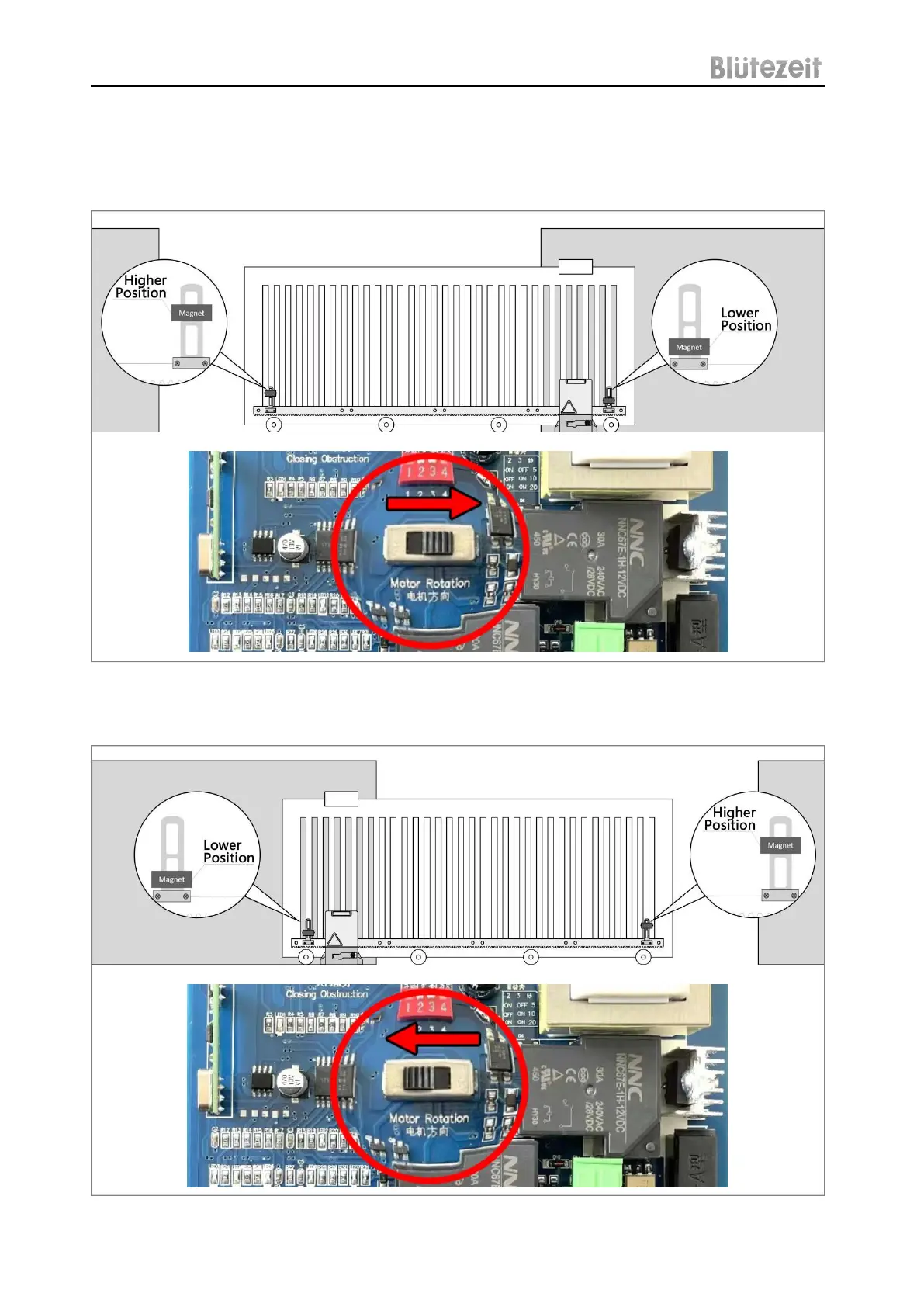

Important Notice for Magnet Installation
• If the motor is installed on the RIGHT side to open the gate (viewed from inside the gate),
place the left magnet higher and the right magnet lower. Make sure to turn the "Motor
Rotation" on the PCBA to the RIGHT. (Fig.10)
• If the motor is installed on the LEFT side to open the gate (viewed from inside the gate), place
the left magnet lower and the right magnet higher. Make sure to turn the "Motor Rotation"
on the PCBA to the LEFT. (Fig.11)
