ME-GO SERIES SLIDING GATE OPENER USER MANUAL
b. Place the metal brackets⑧ with the magnets on the rack⑪ in the desired position. Align
them with the limit switch module on the gate opener.

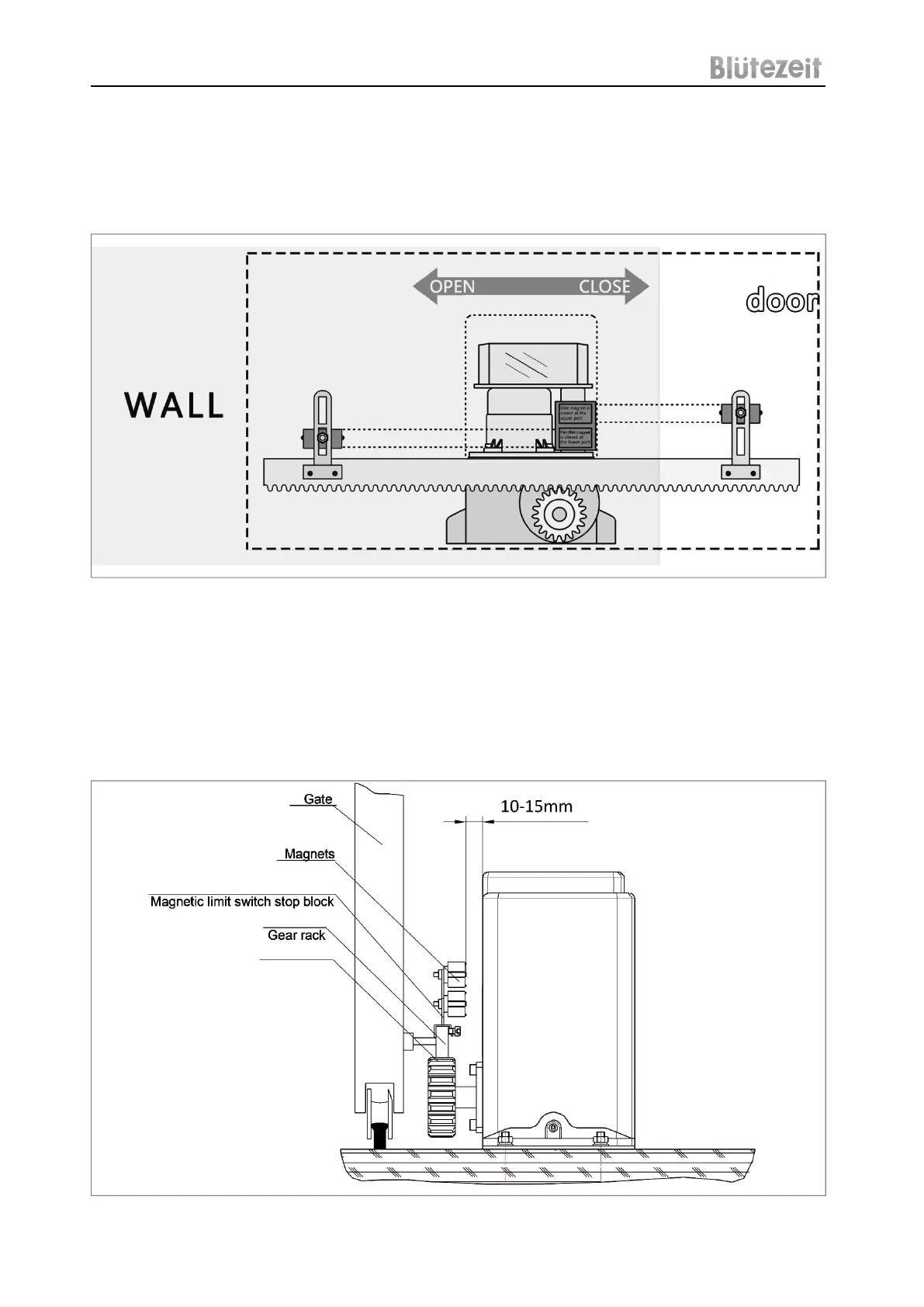

Note: The limit switch on the motor consists of two parts that must be aligned with the
corresponding magnets. Align the magnet for OPENING with the UPPER part of the
limit switch module and the magnet for CLOSING with the LOWER part (Fig.8).
c. Use the four screws⑩ provided in the set to securely attach the metal bracket to the two
sides of the rack. Tighten the screws firmly to fix the bracket in place securely.
d. To adjust the magnet position, release the opener clutch, and manually push the sliding gate
to a predetermined position.
Note: The magnets' position is crucial for proper gate operation. The gate's single stroke
should be within 40ft, and the motor will automatically stop running if it exceeds this distance.
e. Ensure the magnets are positioned approximately 10-15mm away from the limit switch. If the
magnets are too far away, the limit switch may fail to work correctly. (Fig.9)
