ME-GO SERIES SLIDING GATE OPENER USER MANUAL
5. Electrical Connections
Before proceeding with any electrical connections, ensure that the power is OFF. Follow the steps
below to perform the wiring:
5.1 Installation Occasion
• Choose a well-ventilated environment for installing the gate opener.
• Avoid exposing the unit to dampness, water immersion, corrosive substances, or heavy dust.
• Ensure there are no strong vibrations or magnetic interference in the vicinity.
5.2 Wiring Connection (Fig.12)
• Connect the wires strictly according to the markings on the control board terminals. Make
sure that the "L" and "N" wires are not reversed.
• Adhere to safety regulations and separate power wires from control wires.
• Ground the motor casing for added protection.

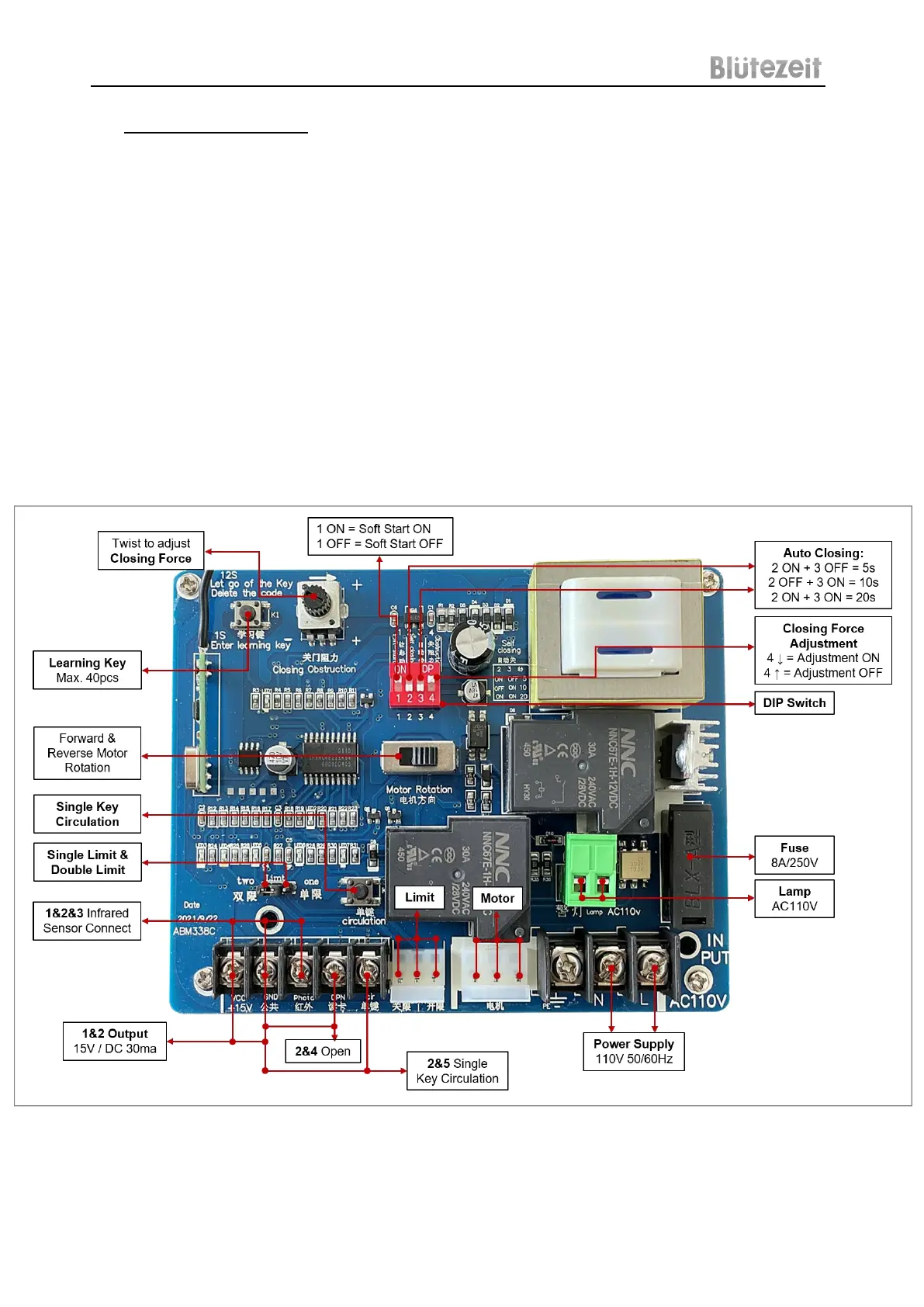

• Refer to the figure below for wiring instructions. DO NOT reverse the ports of “Limit” and
“Motor”, as it may cause damage to the controller.
• Connect "L" and "N" to the power supply of AC110V/60Hz. "L" represents the Live wire, "N" is
the Neutral wire, and "PE" indicates the Grounding wire.
