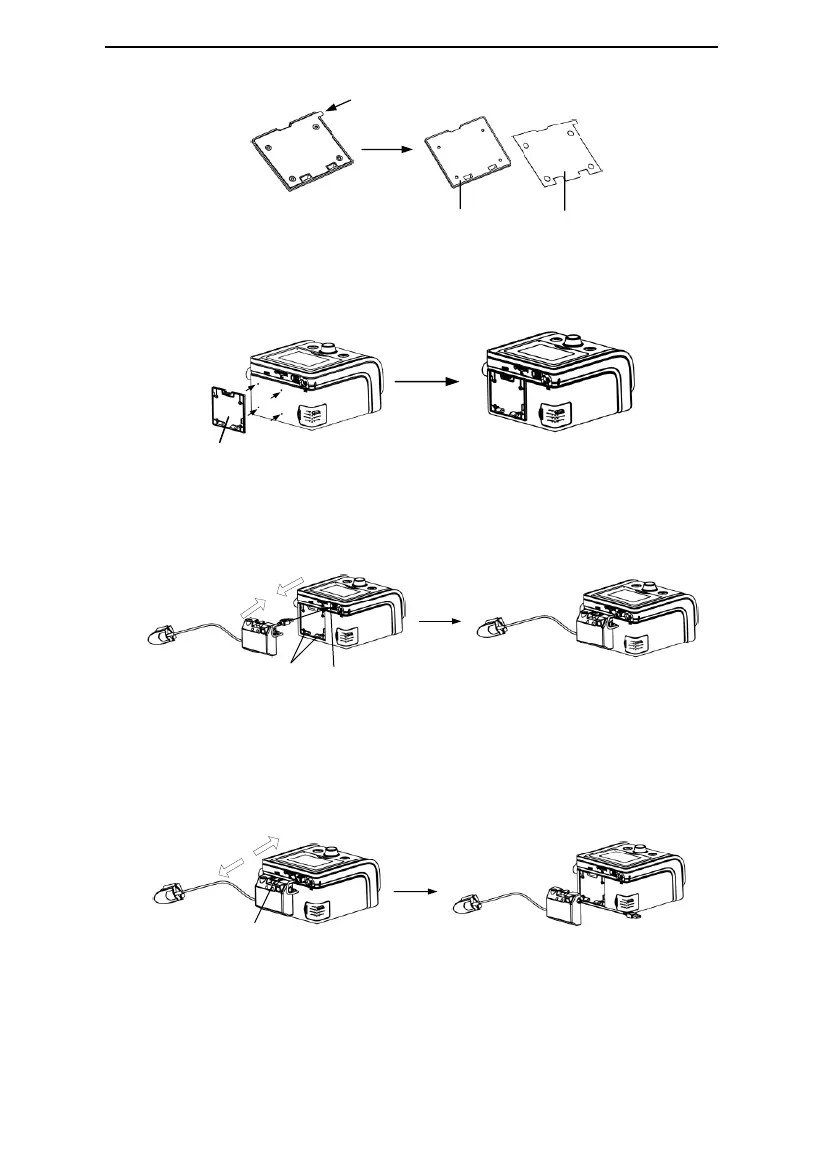

Adhesive-backed Paper
Base Plate
Fig. 11-10
(2) Point the four holes of the Base Plate towards the four reference points on the back of
the main device to properly stick the plate to the device, as shown in Fig. 11-11.
Base Plate
Fig. 11-11
(3) Point the two Buckles at the back of the SpO
2
Kit adapter towards the two buckles of the
base plate, and push until the two units click into place. Insert the SpO
2
Kit connector into
the Communications Port of the main device, as shown in Fig. 11-12.
Buckle
Communications Port
Fig. 11-12
11.7.2 Removing the SpO
2
Kit from the Main Device
First disconnect the SpO
2
Kit connector from the Communications Port; then press the
Hook at the top of the SpO
2
Kit adapter, and at the same time, pull the adapter and base
plate apart in opposite horizontal directions, as shown in Fig. 11-13.
Hook
Fig. 11-13
The SpO
2
Kit is intended to be used for continuous, non-invasive functional arterial oxygen
saturation (SpO
2
) and pulse rate monitoring for adults weighting greater than 40 kg.
The SpO
2
Kit is ready to use immediately when you connect it to the main device via the
