Maintenance and care
Equipment connected to
fuses
1 Engine electronics ..... 15 A
2 Optional accessories plug,
on-board socket,
instrument panel,
diagnosis plug,
hazard warning
flashers ....................... 10 A
3 Horn, headlight
flasher........................ 7.5 A
4 Low-beam headlight,
number-plate light...... 7.5 A
5 High-beam
headlight ................... 7.5 A
6 Brake light, flashing
turn indicators,
instrument panel,
instrument lighting, optional
accessories plug ....... 7.5 A
7 Parking light,
tail light......................... 4 A
8 Heated handlebar
grips ............................. 4 A

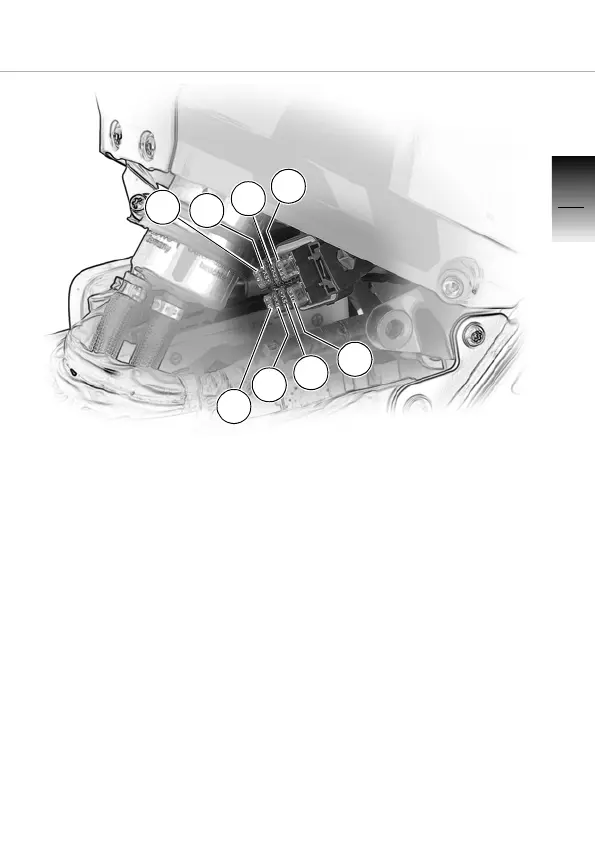

Fuses
2
4
6
8
1
3
5
7
