34.16
3400 [Integral ABS] Draining brake
system
3400 [Integral ABS] Draining wheel cir-
cuit
L Note:
The Integral ABS brake system has four independ-
ent brake fluid circuits.
These are drained, bled and filled separately.
The control circuit leads from the handbrake / foot-
brake cylinder to the pressure modulator.
The wheel circuit leads from the pressure modulator
to the brake caliper. Pressure in this system is
boosted by a pump.
– Preliminary work - front and rear wheel circuits
(
a 00.45).
L Note:
The control circuit must be filled with brake fluid.
The pressure modulator can only be drained using
the internal pump.
Draining rear wheel circuit
•

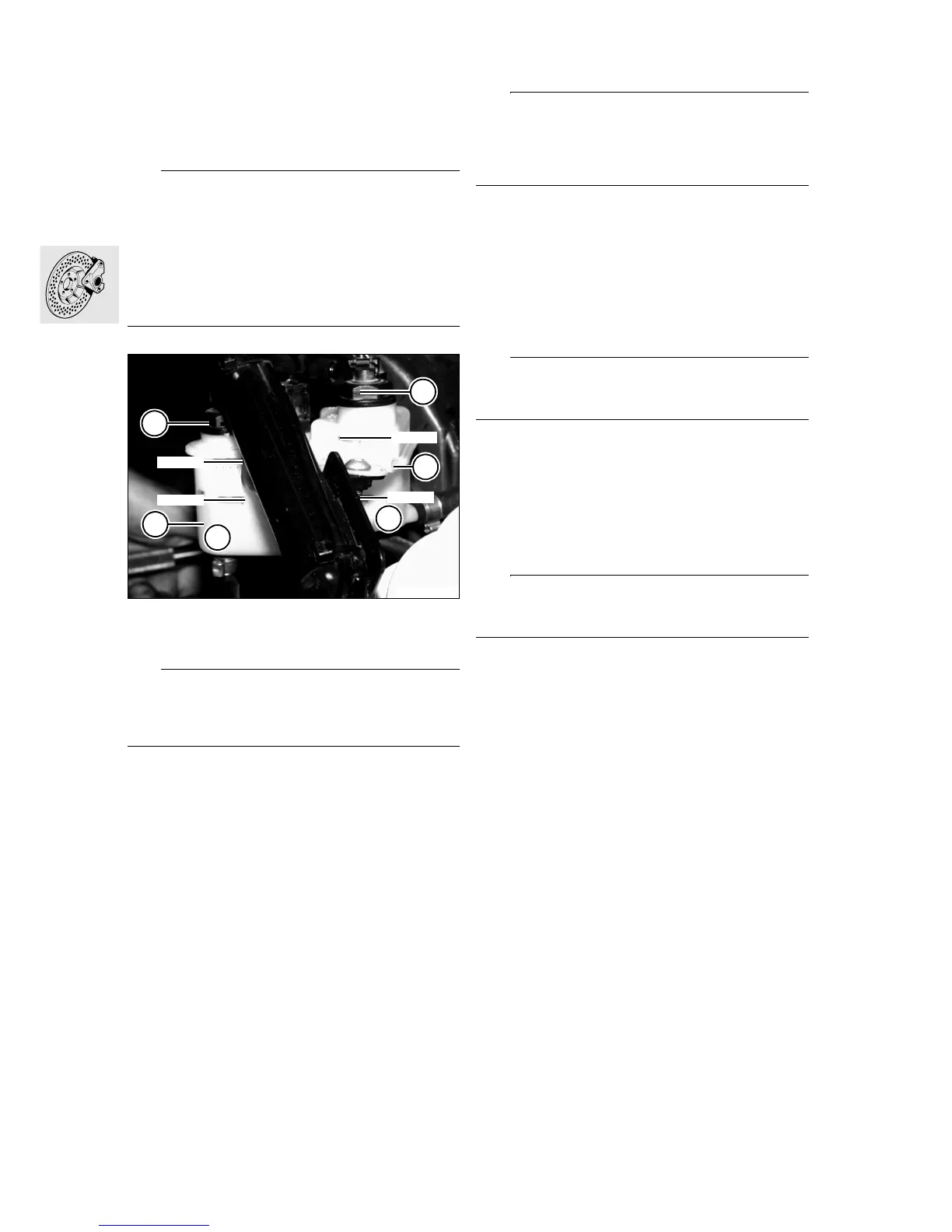

Remove the cover (3) from the reservoir (4).
– Force back the brake pistons in the rear caliper
(a 00.48).
•
Connect the brake bleeding device to the rear
brake caliper, but do not switch on.
•
Switch on the ignition.
L Note:
After switching on the ignition, always wait for the
BMW Integral ABS to complete its self-diagnosis.
Do not operate the brake lever until self-diagnosis
has completed.
•
Gently press the footbrake lever; the pump starts
up.
•
Open the bleed screw at the brake caliper.
•
Drain the wheel circuit with the pump.
•
Close the bleed screw.
•
Release the brake lever.
Draining front wheel circuit
L Note:
Use the same procedure as for the rear wheel cir-
cuit. Drain from the front brake calipers.
•
Remove the cover (2) from the reservoir (1).
– Force back the brake pistons (
a 00.45).
•
Gently pull the handbrake lever until the pump
starts up.
•
Drain the wheel circuit with the pump.
3400
[Integral ABS] Draining control cir-
cuit
e Attention:
Do not disconnect the connector from the ABS con-
trol unit.
Bleeding rear control circuit
– Preliminary work - front and rear control circuits
(
a 00.51).
•
Remove the cover (3) from the reservoir (4).
•
Drain rear control circuit.
Bleeding front control circuit
– Preliminary work - front and rear control circuits
(
a 00.51).
•
Remove reservoir cap with rubber diaphragm
from the handlebar fitting.
•
Drain the reservoir on the handlebar fitting.
•
Drain the front control circuit.
KR340571
3
1
4
MAX
MIN
MIN
MAX
V
H
2
4

BMW k 1200 rs Specifications

General

Displacement	1171 cc
Bore x Stroke	70.5 mm x 75 mm
Compression Ratio	11.5:1
Transmission	6-speed
Final Drive	Shaft drive
Engine Type	Liquid-cooled, 4-stroke in-line four-cylinder
Power	96 kW (130 hp) @ 8750 rpm
Torque	115 Nm (11.7 mkg) @ 6750 rpm
Front Suspension	Telelever
Rear Suspension	Paralever
Front Brakes	Dual 320 mm discs, 4-piston calipers
Rear Brakes	Single 285 mm disc, 2-piston caliper
Seat Height	790 mm
