New Generation N62 Engine Chapter 3 P.40
Course Contents/Background Material
© BMW AG, Service Training

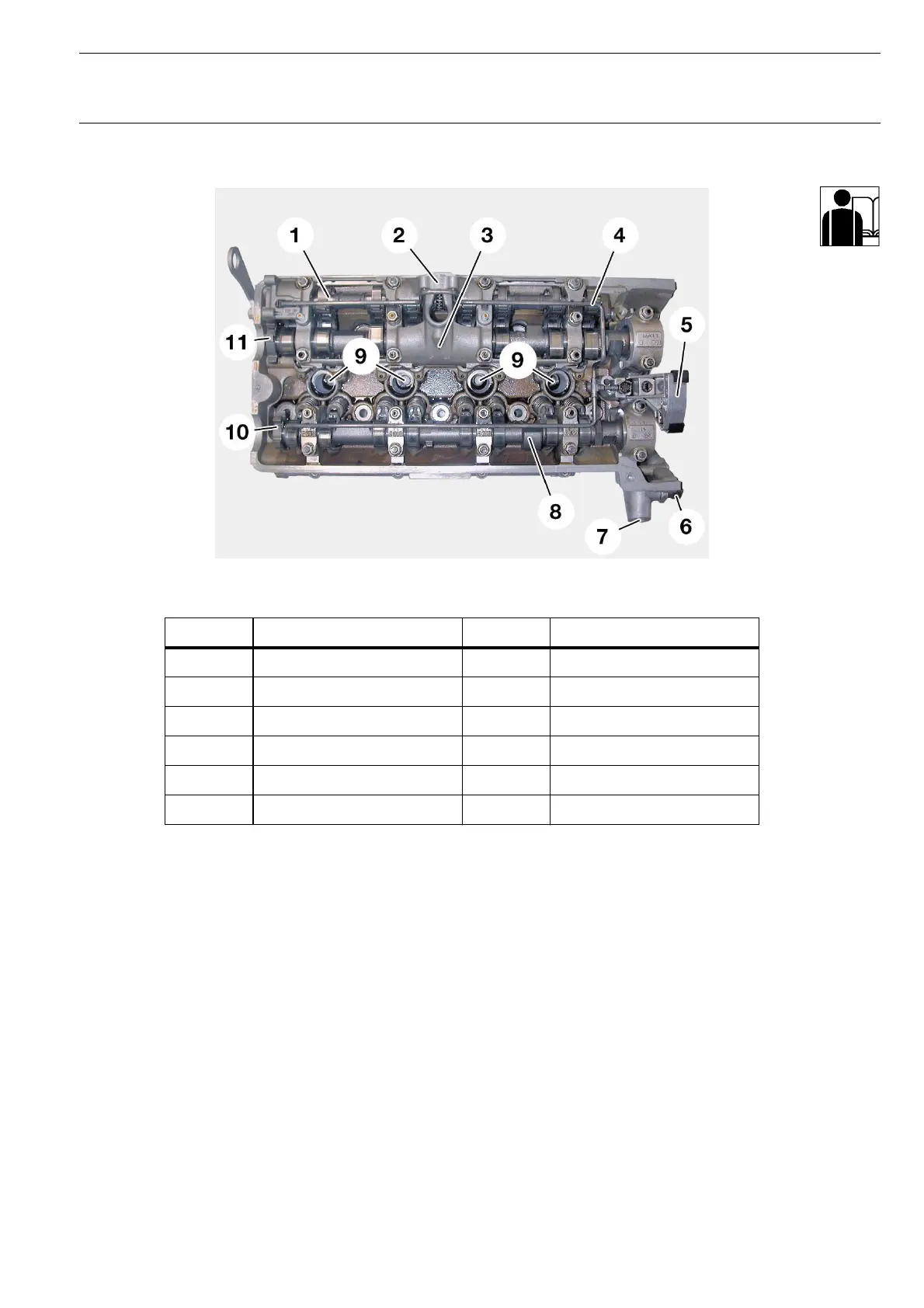

Fig. 30: Cylinder head for cylinder bank 1-4
The inlet camshaft thrust bearing is mounted on the cylinder
head independently of the bridge support.
Index Description Index Description
1 Eccentric shaft 7 Chain tensioner mount
2 Valvetronic motor mount 8 Exhaust camshaft
3 Bridge support 9 Spark plug threads
4 Valve gear oil supply 10+11 Camshaft sensor wheels
5 Upper timing chain guide
6 Oil pressure switch
KT-7710
