- Oil pump

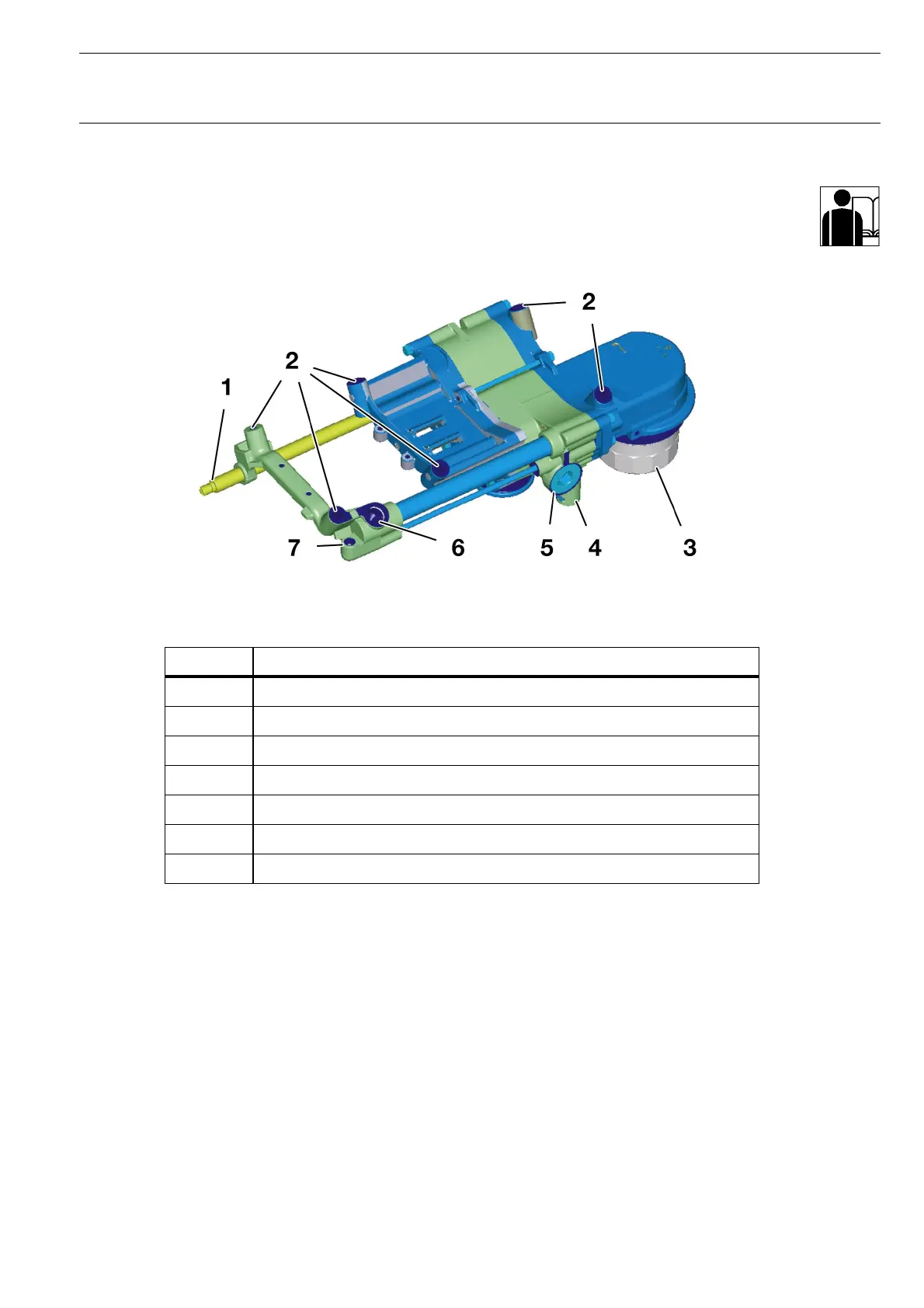

Fig. 61: N62 oil pump
The oil pump is secured to the crankshaft bearing cap by
threaded connections inserted at an angle, and is driven by the
crankshaft using a roller chain.
The oil pump is a two-level gear oil pump with two parallel
switched gear clusters.
The oil pump function is the same as that of the N42 engine.
Index Description
1 Drive shaft
2 Threaded connection
3 Oil filter
4 Pressure relief valve
5 Control valve
6 Oil pressure from the oil pump to the engine
7 Oil pressure control cable from the engine to the control valve
KT-7884
