136 MAINTENANCE

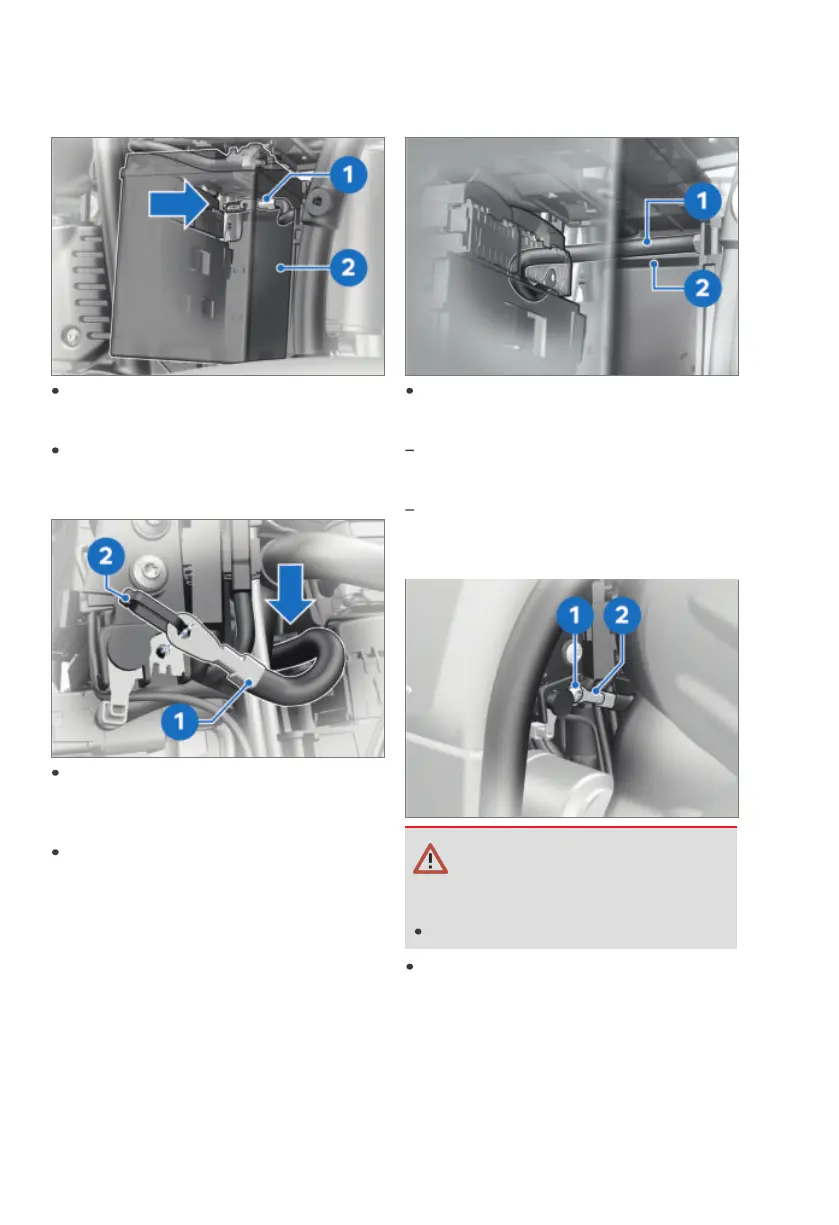

Slide in the battery 2 with the adapter ca-
ble for the positive terminal 1 facing for-
ward.
Route the adapter cable for the positive
terminal 1 as closely as possible to the
opening (arrow).
On the right side of the motorcycle, grasp
the adapter cable for the positive termi-
nal 1 (arrow) by the cable tie 2 and thread
it in.
Remove cable tie 2.
Slide in the battery completely; when do-
ing so, pay attention to the routing of the
adapter cable for the positive terminal 1.
The adapter cable for the positive termi-
nal 1 must be routed between the battery
and battery carrier in the recess 2.
Du not crush the adapter cable for the
positive terminal 1 between battery and
battery carrier.
ATTENTION
Incorrect battery connection
Danger of short circuit
Follow the installation sequence.
Install the adapter cable for the positive
terminal 2 with the screw 1.
