Machine description – quick overview
Smootharc Elite MIG 451 Progress Pulse
099-004839-BOC01
10.11.2009
19

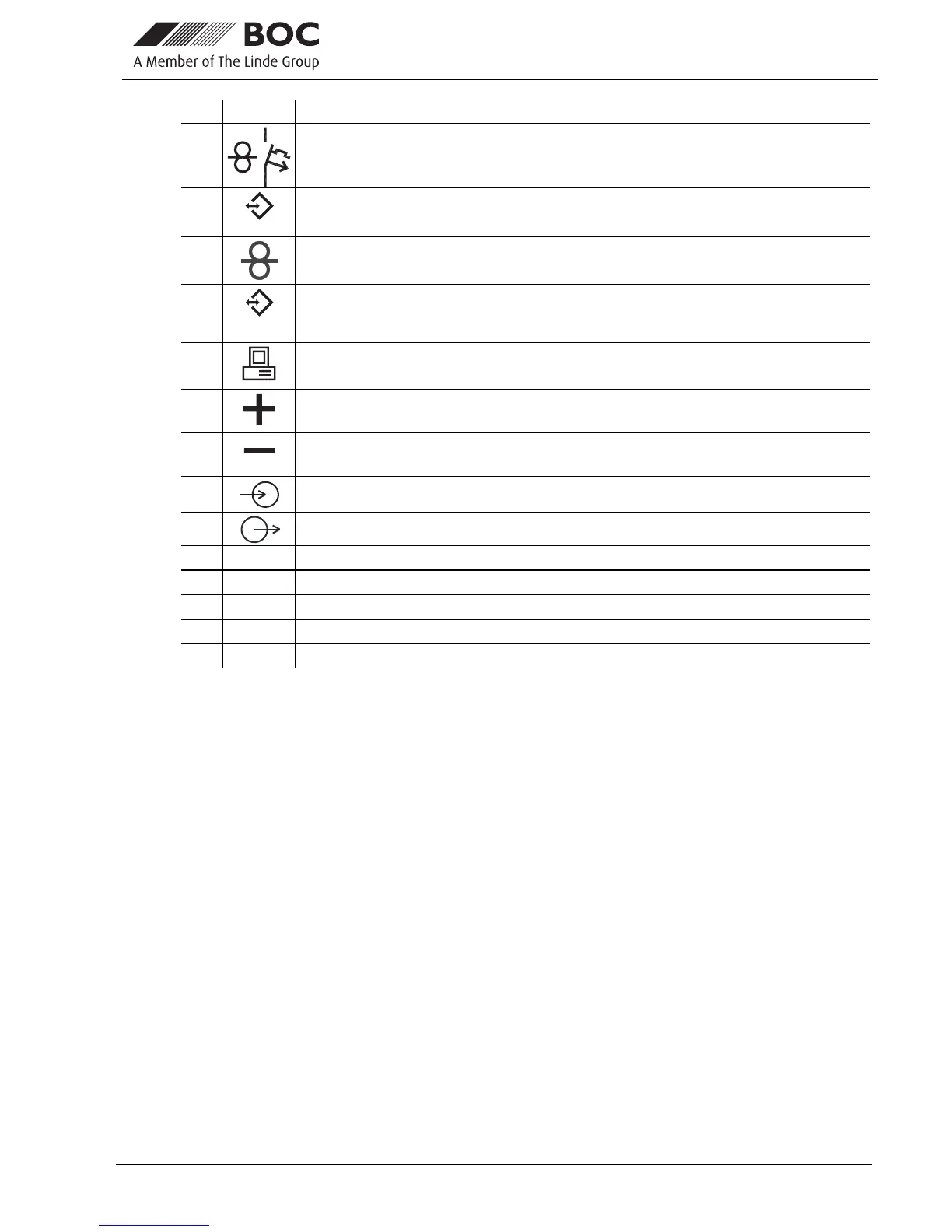

Item Symbol Description 0
1
Key button, Automatic cutout
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
2
analog
19-pole mechanised welding interface (analogue)
(See chapter entitled "Design and function > interfaces".)
3
7-pole connection socket (digital)
Wire feed unit connection
4
digital
7-pole connection socket (digital)
For connecting digital accessory components (documentation interface, robot interface
or remote control, etc.).
5
COM
PC interface, serial (D-SUB connection socket, 9-pole)
6
Connection socket, "+" welding current
Welding current to "WF" central connection/torch
7
Connection socket, "-" welding current
Welding current to "WF" central connection/torch
8
Coolant return from the DV device (red rapid-action closure coupling)
9
Coolant water supply to the DV device (blue rapid-action closure coupling)
10
Conveyor rolls, fixed castors
11
Mains connection cable
12
Securing elements for shielding gas cylinder (strap/chain)
13
Cooling air outlet
14
Bracket for shielding gas cylinder
