Design and function
Mains connection
24
099-004839-BOC01
10.11.2009
5.6 Mains connection
DANGER
Hazard caused by improper mains connection!
An improper mains connection can cause injuries or damage property!
• Only use machine with a plug socket that has a correctly fitted protective conductor.
• If a mains plug must be fitted, this may only be carried out by an electrician in accordance
with the relevant national provisions or regulations (any phase sequence for three-phase
machines)!
• Mains plug, socket and lead must be checked regularly by an electrician!

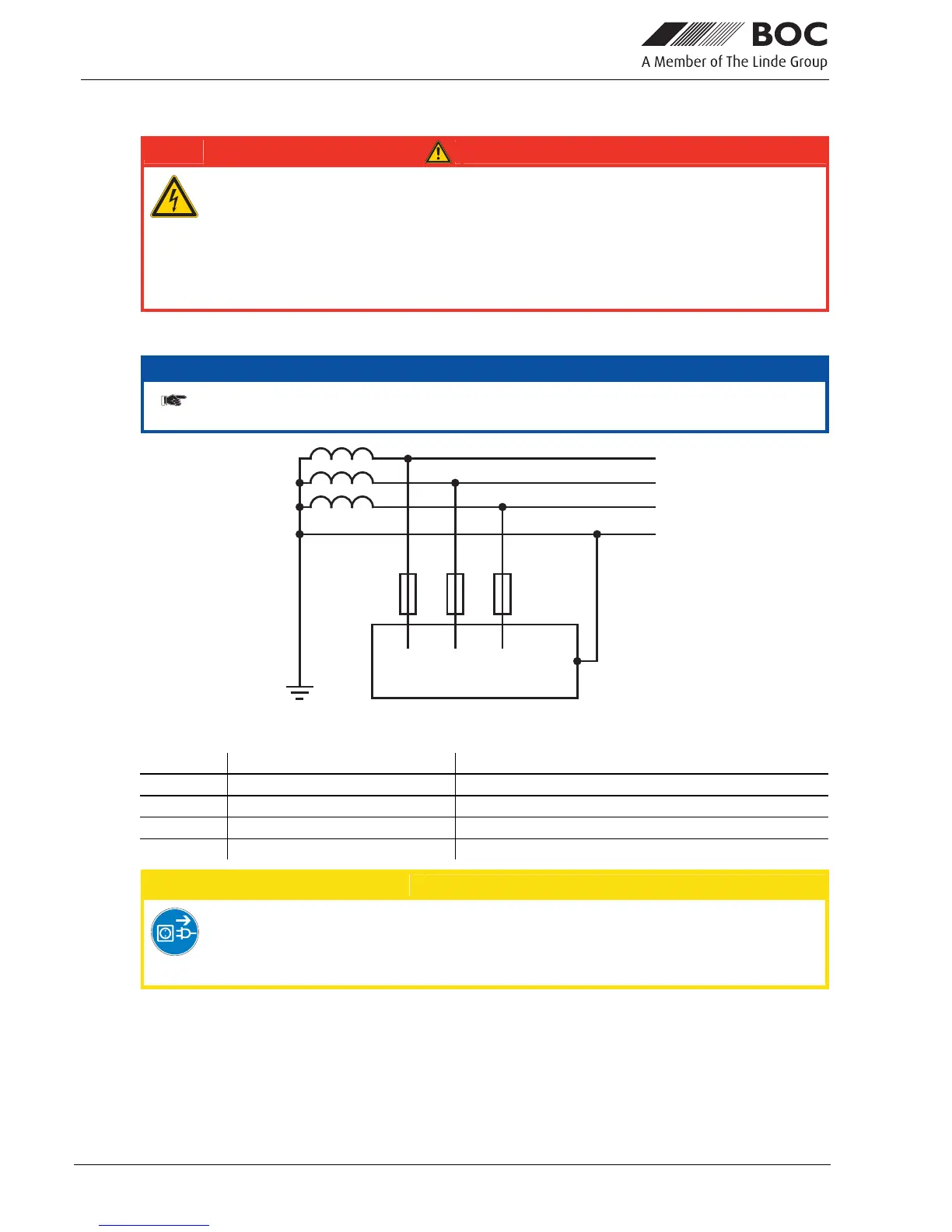

5.6.1 Mains configuration
NOTE
The machine may be connected to TN, TT or IT networks with a protective conductor (as
available).
L1
L3
L2
PE
Figure 5-2
Legend
Item Designation Colour code
L1 Outer conductor 1 black
L2 Outer conductor 2 brown
L3 Outer conductor 3 grey
PE Protective conductor green-yellow
CAUTION
Operating voltage - mains voltage!
The operating voltage shown on the rating plate must be consistent with the mains
voltage, in order to avoid damage to the machine!
• For mains fuse protection, please refer to the “Technical data” chapter!
• Insert mains plug of the switched-off machine into the appropriate socket.
