Material Lift LMX / LHX
105000017
11
With the spirit level (Example: fig. 5 LMX) the lift can be levelled off. The unit must be level on
all sides.

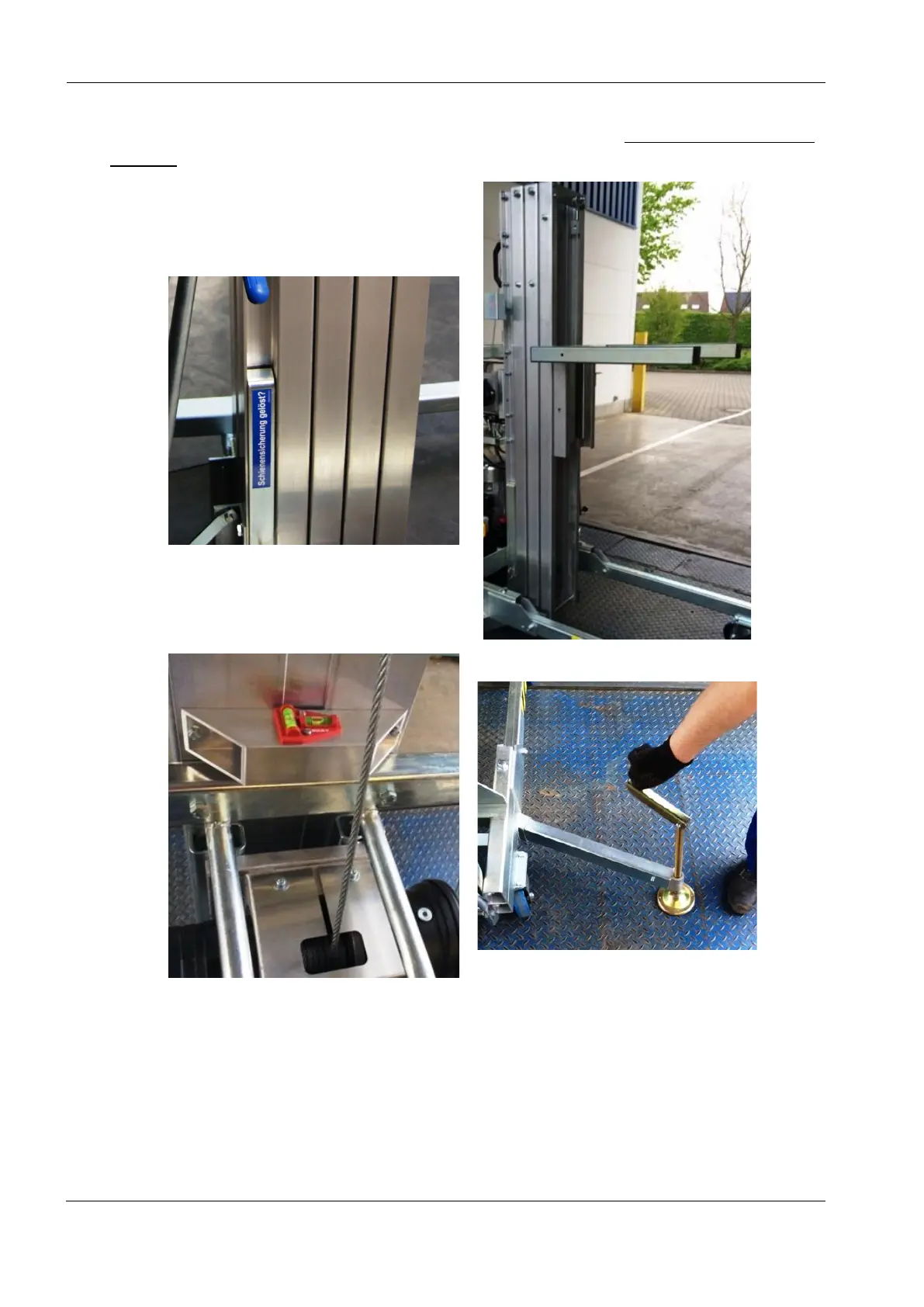

Fig. 3 - Rail safety mechanism
Fig. 4 - Crane fork
Fig. 5 - Spirit level above winch
Fig. 6 - Lateral outriggers with spindle
Follow the steps for commissioning in reverse order to stop the unit.
