2.3 Transport of material and installation lift
Item 2.3 /Kothes! Network/Boek er/Sicherheit/Allg emei ne r Text Sicherheit Boecker @ 8\mod _1 14181 3939 04 5_1.d oc @ 747 31

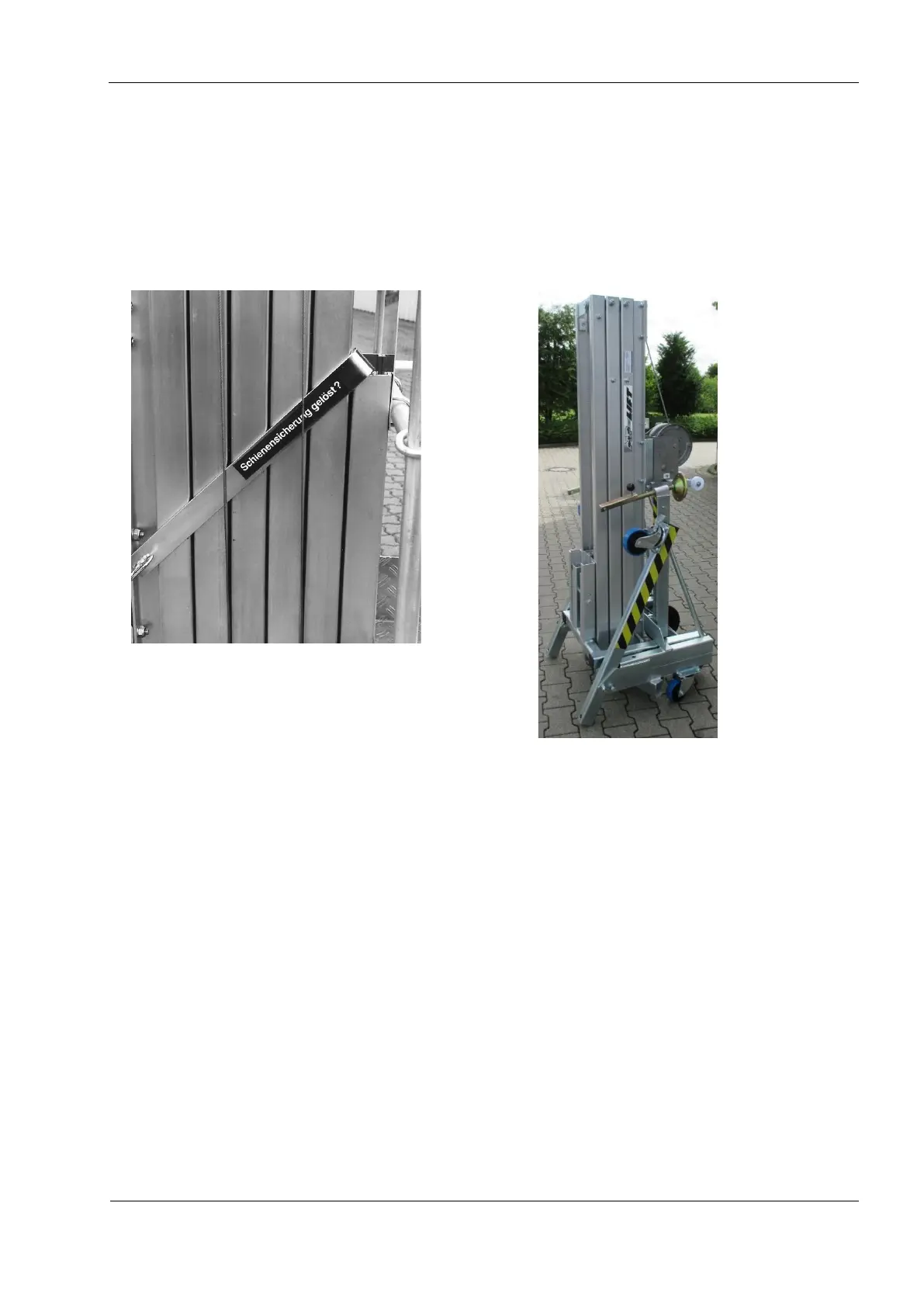

The installation lift can be transported in vehicles or on trailers either upright or lying flat. If it is
lying on its side during transport, the rail safety mechanism must be locked (Fig. 1) and the
cable must be tight, as otherwise the rails slide apart and the cable could become slack.
The installation lift is dispatched with the front parts of the chassis folded up and reverse
mounted crane fork (example LMX Fig. 2).
Ensure that your vehicle is suitable for the transportation of these material lifts. Check if your
load securing equipment (e.g. lashing straps) is sufficient to appropriately secure the load. The
loading process must only be carried out on level surfaces.
For the loading of the material lifts, put the unit into the transport position (Fig. 2). Tilt the
material lift on the loading area with the loading wheels (near the hoist). Now raise the material
lift at the chassis and push the same horizontally via the loading wheels on the loading area
into the transport position. When the transport position has been reached, secure the material
lift with suitable load securing equipment.
The material lifts must be sufficiently secured on the loading area of your vehicle.
We recommend that the material lifts of type LHX 300 and LHX 500 are loaded by 2 persons!
