Bodet Style 5 User Manual

11

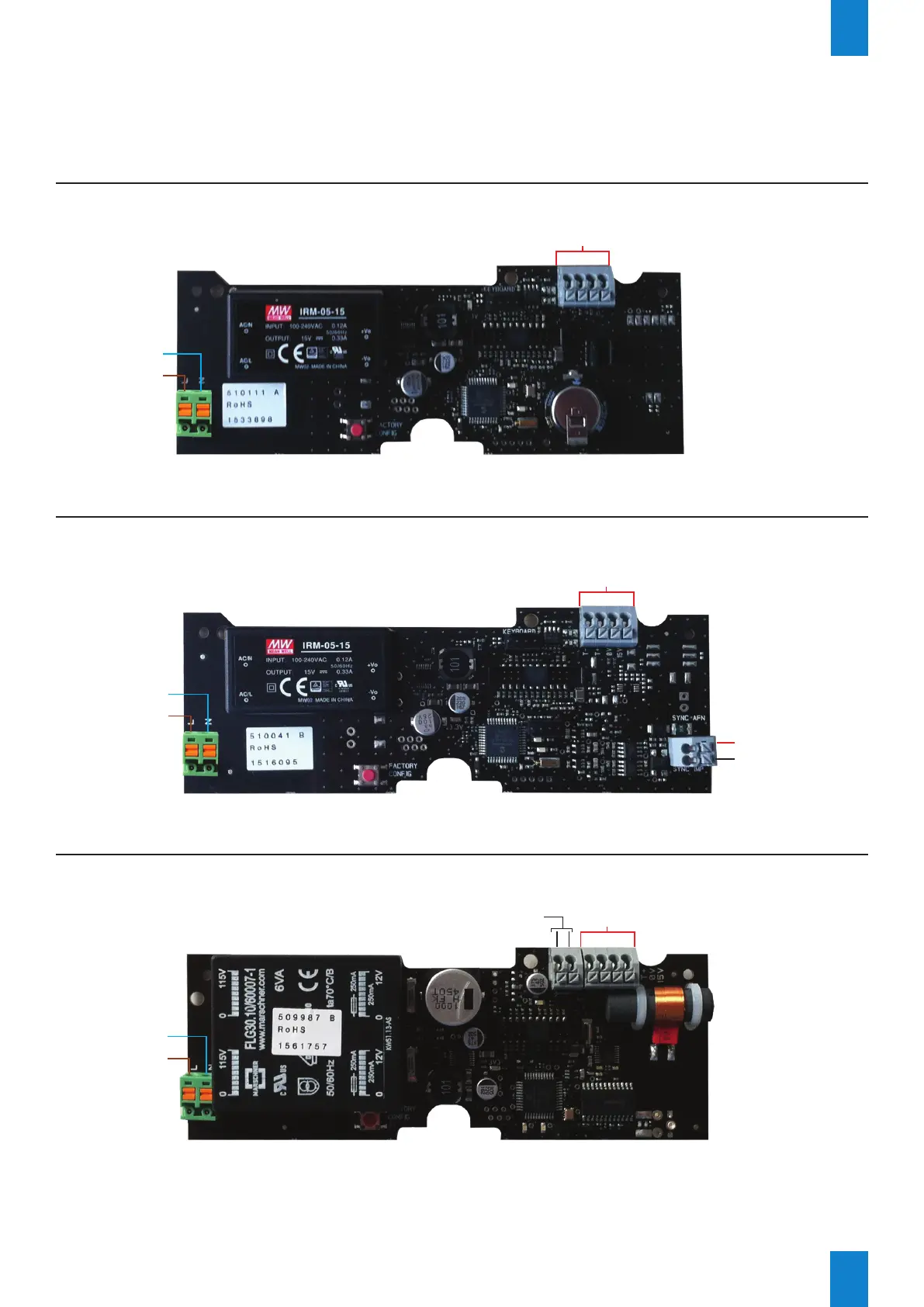

2.5 Electrical connections for various synchronisation cards
Below are the wiring diagrams for the electronic boards for the various synchronisations.
IND (independent) synchronisation card
IMP (impulse) synchronisation card
Radio (ALS(FI)+DCF) synchronisation card
EN
Connector for control keypad
Refer to the keypad instructions
(supplied with the keypad)
Neutral (blue)
Phase (brown)
Use the
appropriate
polarity for
the network
(otherwise
there will be
a delay of
30-60 secs)
Neutral (blue)
(black)
(red)
Phase (brown)
Connector for control keypad
Refer to the keypad instructions
(supplied with the keypad)
Connector available for Style 5S
Refer to the keypad instructions
(supplied with the keypad)
External synchronisation:
ALS (FI) or DCF
Neutral (blue)
Phase (brown)
