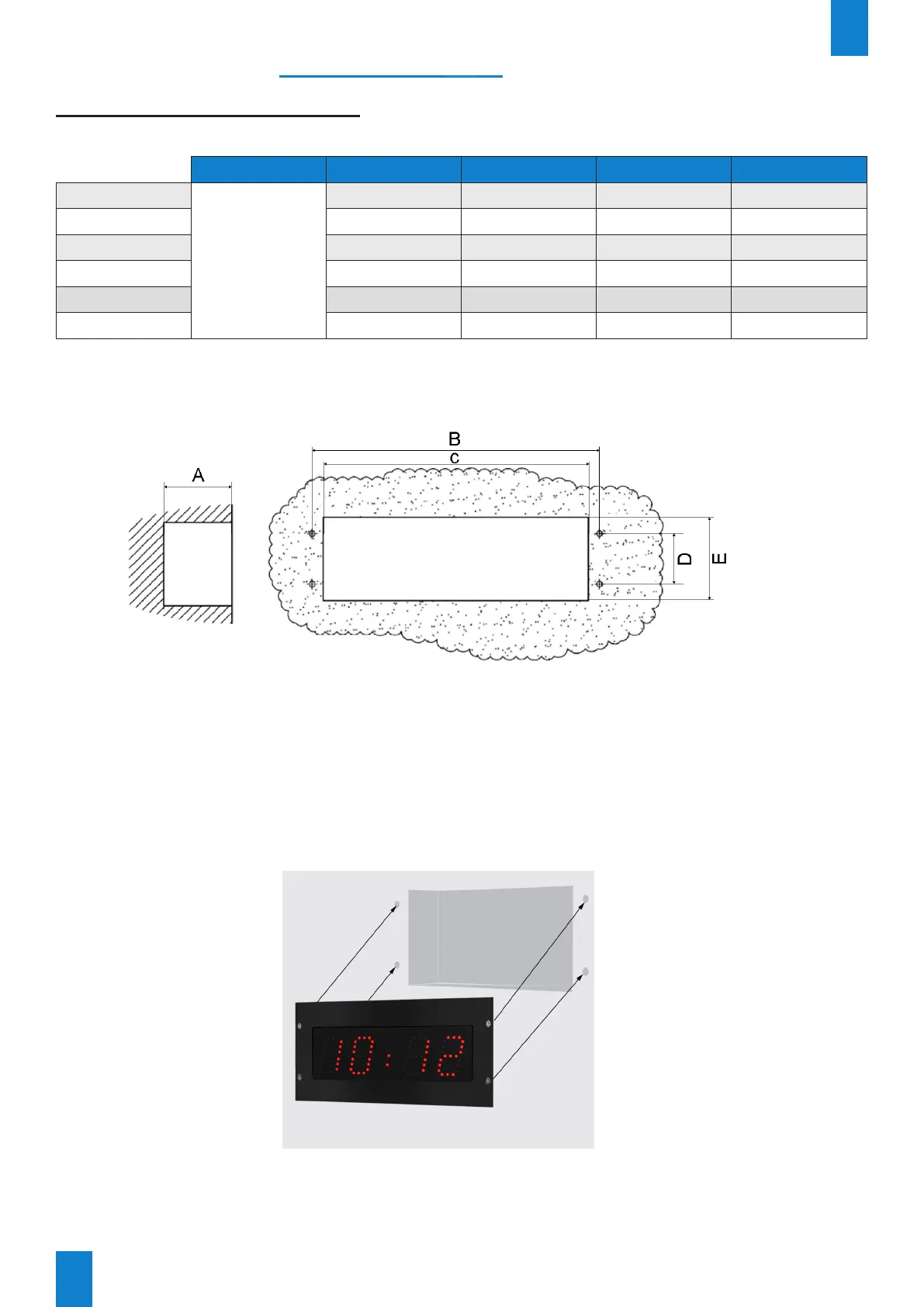

2.3 Recess mounting Style 5-5S-7-7D-7S-10
2.3.1 Mounting without back cover
According to the model of the clock make the cut-out following le dimensions listed in table below
Dimensions in mm
a) Insert the clock in the cut-out in order to mark the position of the mountig screws.
b) Remove the clock and drill 4 holes Ø 6mm to insert the wall plugs.
d) Feed the power cable and the synchronisation cable thought the cut-outc - Connect the clock
(refer to pages 11 and 12) and set the time (refer to page 15).
e) Fix the clock to the wall with the 4 screws Ø4 mm
Installation without the back cover
A B C D E
Style 5
46
275 241 68 107
Style 5S 400 365 68 107
Style 7 325 291 85 117
Style 7S 440 404 85 123
Style 7 Date 365 331 200 308
Style 10 424 406 100 165
