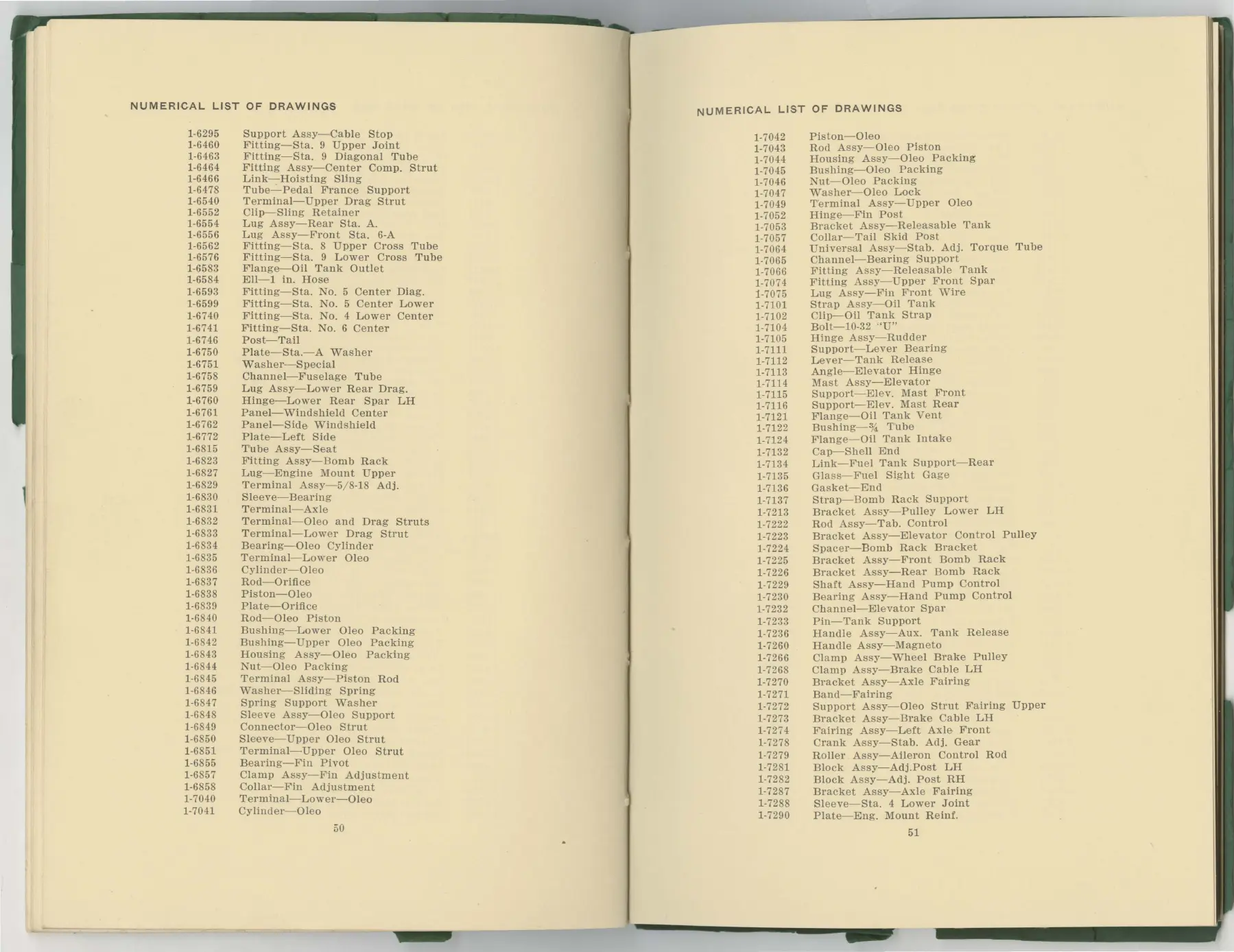

NUMERICAL LIST OF DRAWINGS
1-6295
1-6460
1-6463
1-6464
1-6466
1-6478
1-6540
1-6552
1-6554
1-6556
1-6562
1-6576
1-6583
1-6584
1-6593
1-6599
1-6740
1-6741
1-6746
1-6750
1-6751
1-6758
1-6759
1-6760
1-6761
1-6762
1-6772
1-6815
1-6823
1-6827
1-6829
1-6830
1-6831
1-6832
1-6833
1-6834
1-6835
1-6836
1-6837
1-6838
1-6839
1-6840
1-6841
1-6842
1-6843
1-6844
1-6845
1-6846
1-6847
1-6848
1-6849
1-6850
1-6851
1-6855
1-6857
1-6858
1-7040
1-7041
Support Assy-Cable Stop
Fitting-Sta. 9 Upper Joint
Fitting-Sta. 9 Diagonal Tube
Fitting Assy-Center Comp. Strut
Link-Hoisting Sling
Tube-Pedal France Support
Terminal-Upper Drag Strut
Clip-Sling Retainer
Lug Assy-Rear Sta. A.
Lug Assy-Front Sta. 6-A
Fitting-Sta. 8 Upper Cross Tube
Fitting-Sta . 9 Lower Cros -s Tube
F1ange-Oil Tank Outlet
Ell-1 in. Hose
Fitting-Sta. No. 5 Center Diag.
Fitting-Sta. No. 5 Center Lower
Fitting-Sta. No . 4 Lower Center
Fitting-Sta. No. 6 Center
Post-Tail
Plate-Sta.-A Washer
Washer-Special
Channel-Fuselage Tube
Lug Assy-Lower Rear Drag.
Hinge-Lower Rear Spar LH
Panel-Windshield Center
Panel-Side , Windshield
Plate-Left Side
Tube Assy-Seat
Fitting Assy-Bomb Rack
Lug-Engine Mount Upper
Terminal Assy-5 / 8-18 Adj.
Sleeve-Bearing
Terminal-Axle
Terminal-Oleo and Drag Struts
Terminal-Lower Drag Strut
Bearing-Oleo Cylinder
Terminal - Lower Oleo
Cylinder-Oleo
Rod-Orifice
Piston-Oleo
Plate-Orifice
Rod-Oleo Piston
Bushing-Lower Oleo Packing
Bushing-Upper Oleo Packing
Housing Assy-Oleo Packing
Nut-Oleo Packing
Terminal Assy-Piston Rod
Washer-Sliding Spring
Spring Support Washer
Sleeve Assy-Oleo Support
Connector-Oleo Strut
Sleeve-Upper Oleo Strut
Terminal-Upper Oleo Strut
Bearing-Fin Pivot
Clamp Assy - Fin Adjustment
Collar-Fin Adjustment
Terminal-Lower-Oleo
Cylinder-Oleo
50
NUMERICAL LIST OF DRAWINGS
1-7042
1-7043
1-7044
1-7045
1-7046
1-7047
1-7049
1-7052
1-7053
1-7057
1-7064
1-7065
1-7066
1-7074
1-7075
1-7101
1-7102
1-7104
1-7105
1-7111
1-7112
1-7113
1-7114
1-7115
1-7116
1-7121
1-7122
1-7124
1-7132
1-7134
1-7135
1-7136
1-7137
1-7213
1-7222
1-7223
1-7224
1-7225
1-7226
1-7229
1-7230
1-7232
1-7233
1-7236
1-7260
1-7266
1-7268
1-7270
1-7271
1-7272
1-7273
1-7274
1-7278
1-7279
1-7281
1-7282
1-7287
1-7288
1-7290
Piston-Oleo
Rod Assy-Oleo Piston
Housing Assy-Oleo Packing
Bushing-Oleo Packing
Nut-Oleo Packing
Washer-Oleo Lock
Terminal Assy-Upper Oleo
Hinge-Fin Post
Bracket Assy-Releasable Tank
Collar-Tail Skid Post
Universal Assy-Stab. Adj. Torque Tube
Channel- Bearing Support
Fitting Assy-Releasable Tank
Fitting Assy~Upper Front Spar
Lug Assy-Fin Front Wire
Strap Assy-Oil Tank
Clip-Oil Tank Strap
Bol t-10-32 ·'U"
Hinge Assy-Rudder
Support-Lever Bearing
Lever-Tank Release
Angle-Elevator Hinge
Mast Assy-Elevator
Support-Elev. Mast Front
Support-Elev. Mast Rear
Flange-Oil Tank Vent
Bushing-¾ Tube
Flange-Oil Tank Intake
Cap-Shell End
Link-Fuel Tank Support-Rear
Gla ss- Fuel Sight Gage
Gasket-End
Strap-Bomb Rack Support
Bracket Assy- Pulley Lower LH
Rod Assy-Tab. Control
Bracket Assy-Elevator Control Pulley
Spacer-Bomb Rack Bracket
Bracket Assy-Front Bomb Rack
Bracket A.ssy-Rear Bomb Rack
Shaft Assy- Hand Pump Control
Bearing Assy- Hand Pump Control
Channel-Elevator Spar
Pin-Tank Support
Handle Assy-Aux. Tank Release
Handle Assy-Magneto
Clamp Assy-Wheel Brake Pulley
Clamp Assy-Brake Cable LH
Bracket Assy-Axle Fairing
Band-Fairing
Support Assy-Oleo Strut Fairing Upper
Bracket Assy-Brake Cable LH
Fairing Assy-Left Axle Front
Crank A, ssy-Stab. Adj. Gear
Roller . Assy-Aileron Control Rod
Block Assy-Adj.Post LH
Block Assy-Adj. Post RH
Bracket Assy-Axle Fairing
Sleeve-Sta. 4 Lower Joint
Plate-Eng. Mount Reinf.
