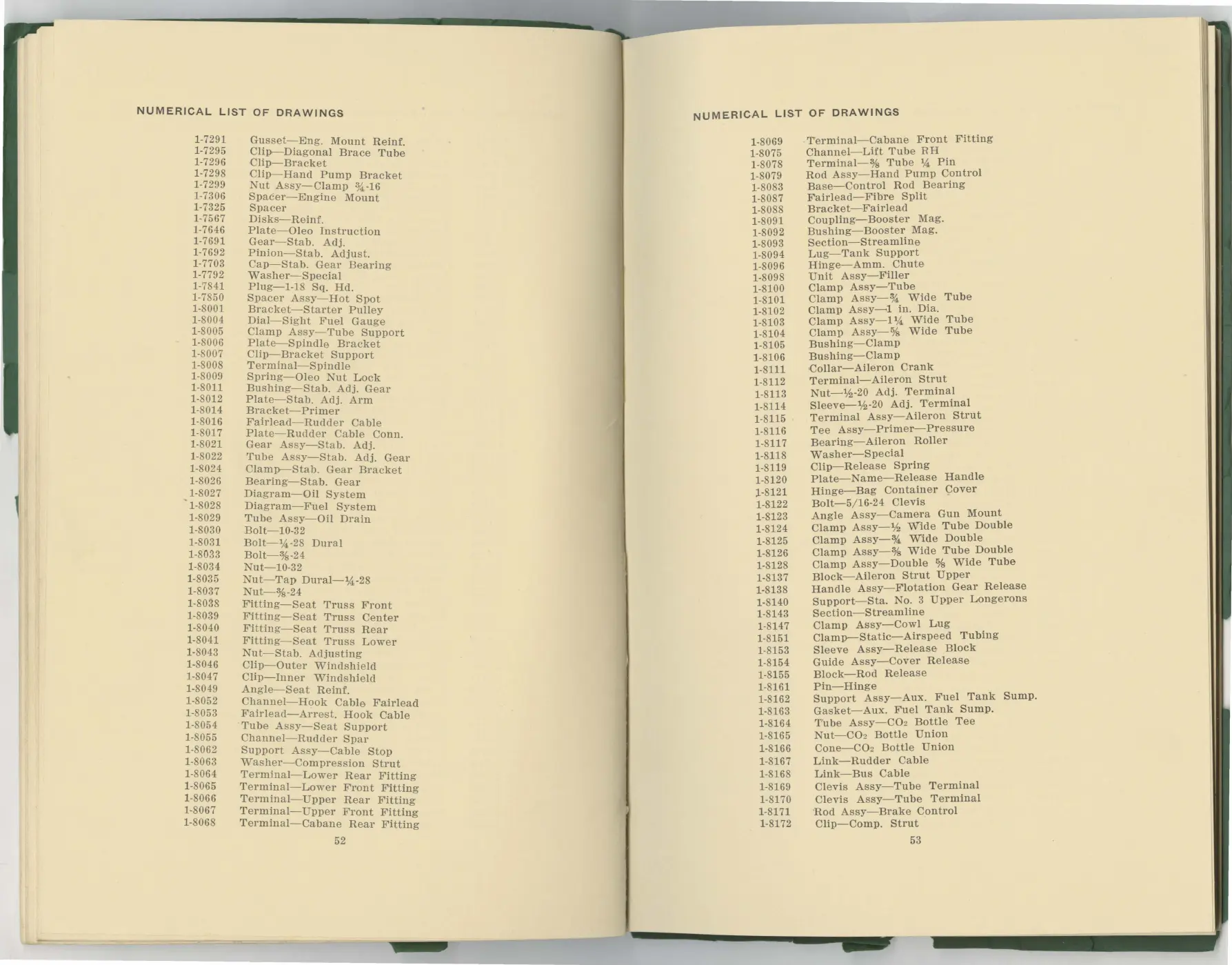

NUMERICAL LIST OF DRAWINGS
1-7291
1-7295
1-7296
1-7298
1-7299
1-7306
1-7325
1-7567
1-7646
1-7691
1-7692
1-7703
1-7792
1-7841
1-7850
1-8001
1-8004
1-8005
1-8006
1-8007
1-8008
1-8009
1-8011
1-8012
1-8014
1-8016
1-8017
1-8021
1-8022
1-8024
1-8026
1-8027
1-8028
1-8029
1-8030
1-8031
1-8-033
1-8034
1-8035
1-8037
1-8038
1-8039
1-8040
1-8041
1-8043
1-8046
1-8047
1-8049
1-8052
1-8053
1-8054
1-8055
1-8062
1-8063
1-8064
1-8065
1-8066
1-8067
1-8068
Gusset-Eng. Mount Reinf.
Clip,-Diagonal Brace Tube
Clip- Bracket
Clip-Hand Pump Bracket
Nut Assy-Clamp ¾,-16
Spacer-Engine Mount
Spacer
Disks-Reinf.
Plate-Oleo Instruction
Gear-Stab. Adj.
Pinion-Stab. Adjust.
Cap-Stab. Gear Bearing
Washer-Special
Plug-1-18 Sq. Hd.
Spacer Assy-Hot Spot
Bracket-Starter Pulley
Dial-Sight Fuel Gauge
Clamp Assy-Tube Support
Plate-Spindle Bracket
Clip-Bracket Support
Terminal-Spindle
Spring-Oleo Nut Lock
Bushing-Stab. Adj. Gear
Plate-Stab. Adj. Arm
Bracket- Primer
Fairlead-Rudder Cable
Plate-Rudder Cable Conn.
Gear Assy-Stab. Adj.
Tube Assy-Stab. Adj. Gear
Clamp,-Stab. Gear Bracket
Bearing-Stab. Gear
Diagram-Oil System
Diagram-Fuel System
Tube Assy-Oil Drain
Bolt-10-32
Bolt-
1
/4-28 Dural
Bolt-%-24
Nut-10-32
Nut-Tap Dural-¾-28
Nut-%-24
Fitting-Seat Truss Front
Fitting-Seat Truss Center
Fitting-Seat Truss Rear
Fitting-Seat Truss Lower
Nut-Stab. Adjusting
Clip-Outer Windshield
Clip-Inner Windshield
Angle-Seat Reinf.
Channel-Hook Cable Fairlead
Fairlead-Arre-st. Hook Cable
Tube Assy-Seat Support
Channel-Rudder Spar
Support Assy-Cable Stop
Washer-Compression Strut
Terminal-Lower Rear Fitting
Terminal-Lower Front Fitting
Terminal-Upper Rear Fitting
Terminal-Upper Front Fitting
Terminal-Cabane Rear Fitting
52
NUMERICAL LIST OF DRAWINGS
1-8069
1-8075
1-8078
1-8079
1-8083
1-8087
1-8088
1-8091
1-8092
1-8093
1-8094
1-8096
1-8098
1-8100
1-8101
1-8102
1-8103
1-8104
1-8105
1-8106
1-8111
1-8112
1-8113
1-8114
1-8115
1-8116
1-8117
1-8118
1-8119
1-8120
1-8121
1-8122
1-8123
1-8124
1-8125
1-8126
1-8128
1-8137
1-8138
1-8140
1-8143
1-8147
1-8151
1-8153
1-8154
1-8155
1-8161
1-8162
1-8163
1-8164
1-8165
1-8166
1-8167
1-8168
1-8169
1-8170
1-8171
1-8172
Terminal-Cabane Front Fitting
Channel-Lift Tube RH
Terminal-% Tube ¾ Pin
Rod Assy-Hand Pump Control
Base-Control Rod Bearing
Fairlead-Fibre Split
Bracket-Fair lead
Coupling-Booster Mag.
Bushing-Booster Mag.
Section-Streamline
Lug-Tank Support
Hinge-Amm. Chute
Unit Assy-Filler
Clamp Assy-Tube
Clamp Assy-¾ Wide Tube
Clamp As , sy--,1 in. Dia.
Clamp Assy-1¾ Wide Tube
Clamp Assy-% Wide Tube
Bushing-Clamp
Bushing-Clamp
Collar-Aileron Crank
Terminal-Aileron Strut
Nut-½-20 Adj. Terminal
Sleeve-½-20 Adj. Terminal
Terminal Assy-Aileron Strut
Tee Assy-Prime-r-Pressure
Bearing-Aileron Roller
Washer-Special
Clip-Release Spring
Plate-Name- Release Handle
Hinge-Bag Container Qover
Bolt-5/16-24 Clevis
Angle Assy-Camera Gun Mount
Clamp Assy-½ Wide Tube Double
Clamp Assy-¾, Wide Double
Clamp Assy-% Wide Tube Double
Clamp Assy-Double % Wide Tube
Block-Aileron Strut Upper
Handle Assy-Flotation Gear Release
Support-Sta. No. 3 Upper Longerons
Se cti on-Streamline
Clamp Assy-Cowl Lug
Clamp-Static-Airspeed Tubing
Sleeve Assy-Release Block
Guide Assy-Cover Release
Block-Rod Release
Pin-Hinge
Support Assy-Aux. Fuel Tank Sump.
Gasket-Aux. Fuel Tank Sump.
T'ube Assy-CO2 Bottle Tee
Nut-CO2 Bottle Union
Cone-CO2 Bottle Union
Link-Rudder Cable
Link-Bus Cable
Clevis Assy-Tube Terminal
Clevis Assy-Tube Terminal
Rod Assy-Brake Control
Clip-Comp. Strut
