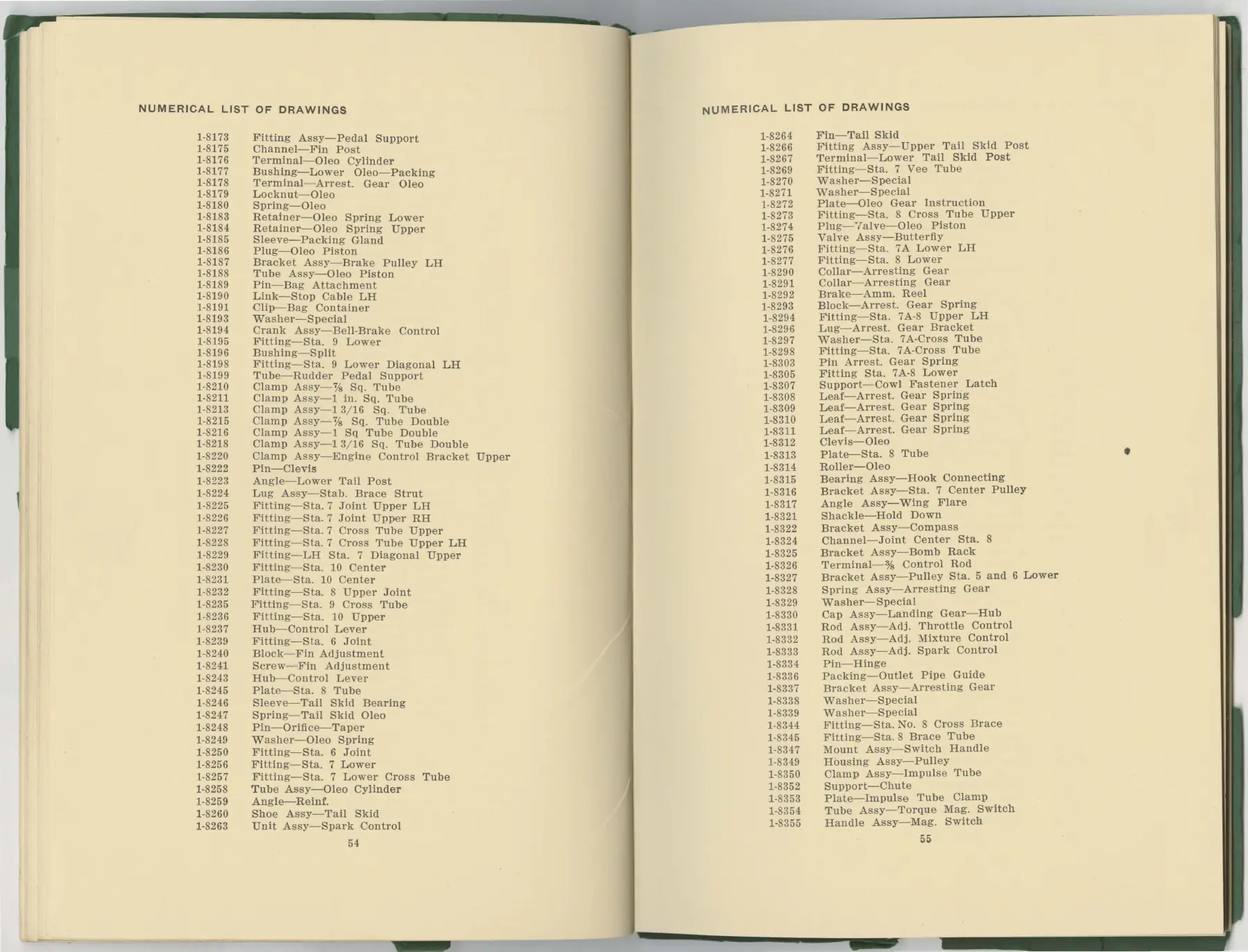

Boeing F4B-1 - Page 32

NUMERICAL LIST OF DRAWINGS
1-8173
1-8175
1-8176
1-8177
1-8178
1-8179
1-8180
1-8183
1-8184
1-8185
1-8186
1-8187
1-8188
1-8189
1-8190
1-8191
1-8193
1-8194
1-8195
1-8196
1-8198
1-8199
1-8210
1-8211
1-8213
1-8215
1-8216
1-8218
1-8220
1-8222
1-8223
1-8224
1-8225
1-8226
1-8227
1-8228
1-8229
1-8230
1-8231
1-8232
1-8235
1-8236
1-8237
1-8239
1-8240
1-8241
1-8243
1-8245
1-8246
1-8247
1-8248
1-8249
1-8250
1-8256
1-8257
1-8258
1-8259
1-8260
1-8263
Fitting Assy- Pedal Support
Channel-Fin Post
Terminal-Oleo Cylinder
Bushing-Lower Oleo-Packing
Terminal-Arrest. Gear Oleo
Locknut-Oleo
Spring-Oleo
Retainer-Oleo Spring Lower
Retainer-Oleo Spring Upper
Sleeve-Packing Gland
Plug-Oleo Piston
Bracket Assy-Brake Pulley LH
Tube Assy-Oleo Piston
Pin-Bag Attachment
Link-Stop Cable LH
Clip- Bag Container
Washer-Special
Crank Assy-Bell-Brake Control
Fitting-Sta. 9 Lower
Bushing-Split
Fitting-Sta. 9 Lower Diagonal LH
Tube-Rudder Pedal Support
Clamp Assy-% Sq. Tube
Clamp Assy-1 in. Sq. Tube
Clamp Assy-1 3/ 16 Sq. T'ube
Clamp Assy-% Sq. Tube Double
Clamp Assy-1 Sq Tube Double
Clamp Assy-1 3/ 16 Sq. Tube Double
Clamp Assy-Engine Control Bracket Upper
Pin-Clevis
Angle-Lower Tail Post
Lug Assy-Stab. Brace Strut
Fitting-Sta. 7 Joint Upper LH
Fitting-Sta. 7 Joint Upper RH
Fitting-Sta. 7 Cross Tube Upper
Fitting-Sta. 7 Cross Tube Upper LH
Fitting-LR Sta. 7 Diagonal Upper
Fitting-Sta. 10 Center
Plate-Sta. 10 Center
Fitting-Sta. 8 Upper Joint
F'itting-Sta. 9 Cross Tube
Fitting-Sta. 10 Upp-er
Hub-Control Lever
Fitting-Sta. 6 Joint
Block-Fin Adjustment
Screw-Fin Adjustment
Hub-Control Lever
Plate-Sta. 8 Tube
Sleeve-Tail Skid Bearing
Spring-Tail Skid Oleo
Pin-Orifice-Taper
Washer-Oleo Spring
Fitting-Sta. 6 Joint
Fitting-Sta. 7 Lower
Fitting-Sta. 7 Lower Cross Tube
Tube Assy-Oleo Cylinder
Angle-Reinf.
Shoe Assy-Tail Skid
Unit Assy-Spark Control
