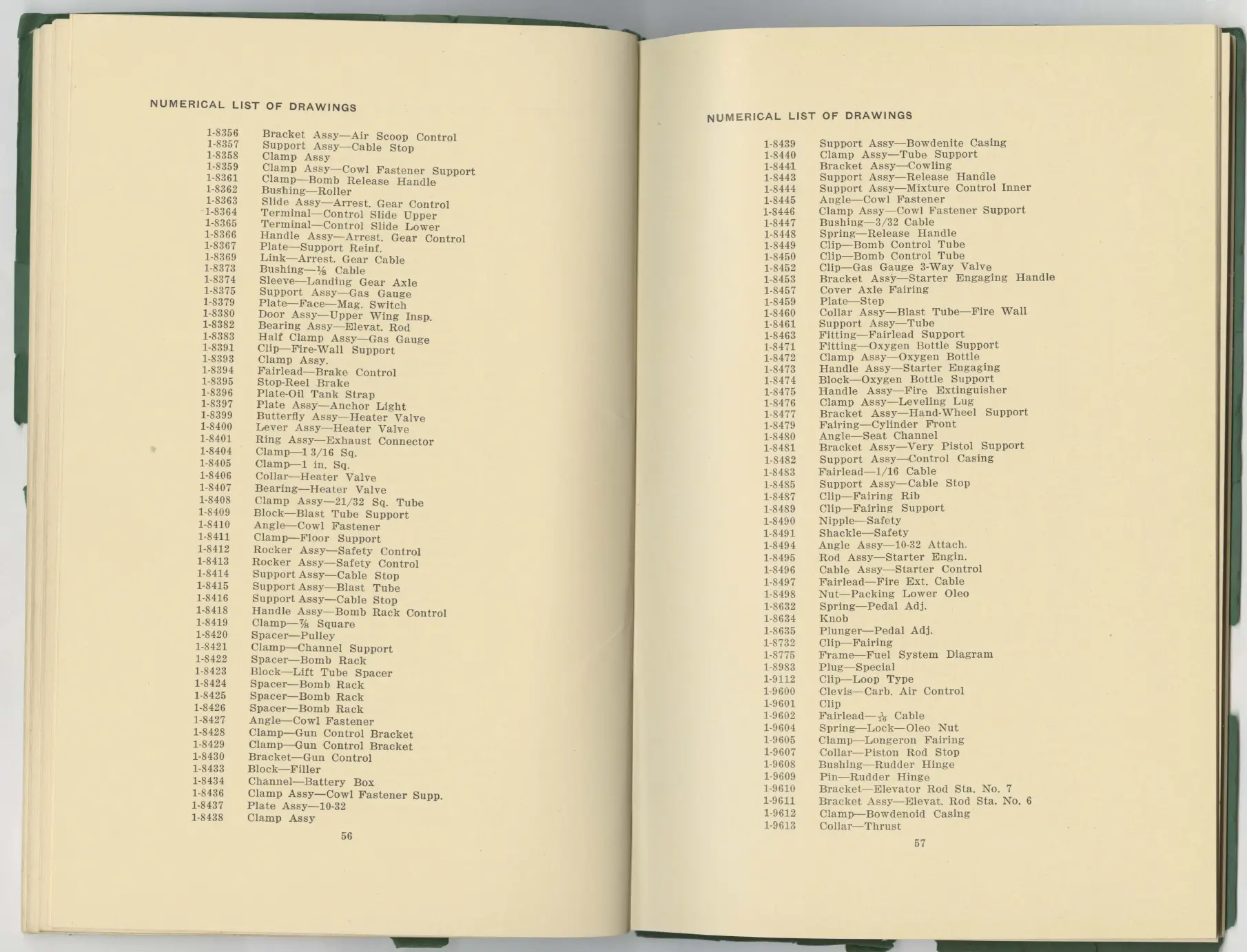

NUMERICAL LIST OF DRAWINGS
1-8356
1-8357
1-8358
1-8359
1-8361
1-8362
1-8363
1-8364
1-8365
1-8366
1-8367
1-8369
1-8373
1-8374
1-8375
1-8379
1-8380
1-8382
1-8383
1-8391
1-8393
1-8394
1-8395
1-8396
1-8397
1-8399
1-8400
1-8401
1-8404
1-8405
1-8406
1-8407
1-8408
1-8409
1-8410
1-8411
1-8412
1-8413
1-8414
1-8415
1-8416
1-8418
1-8419
1-8420
1-8421
1-8422
1-8423
1-8424
1-8425
1-8426
1-8427
1-8428
1-8429
1-8430
1-8433
1-8434
1-8436
1-8437
1-8438
Bracket Assy-Air Scoop Control
Support Assy-Cable Stop
Clamp Assy
Clamp Assy-Cowl Fastener Support
Clamp-Bomb Release Handle
Bushing-Roller
Slide Assy-Arrest. Gear Control
Terminal-Control Slide Upper
Terminal-Control Slide Lower
Handle Assy-Arrest. Gear Control
Plate-Support Reinf.
Link-Arrest. Gear Cable
Bushing-¼ Cable
Sleeve-Landing Gear Axle
Support Assy-Gas Gauge
Plate-Face-Mag. Switch
Door Assy-Upper Wing Insp.
Bearing Assy-Elevat. Rod
Half Clamp Assy-Gas Gauge
Clip-Fire-Wall Support
Clamp Assy.
Fairlead-Brake Control
Stop-Reel Brake
Plate-Oil Tank Strap
Plate Assy-Anchor Light
Butterfly Assy-Heater Valve
Lever Assy-Heater Valve
Ring Assy-Exhaust Connector
Clamp-1 3/16 Sq.
Clamp--1 in. Sq.
Collar-Heater Valve
Bearing-Heater Valve
Clamp Assy-21/32 Sq. Tube
Block-Blast Tube Support
Angle-Cowl Fastener
Clamp-Floor Support
Rocker Assy-Safety Control
Rocker Assy-Safety Control
Support Assy-Cable Stop
Support Assy-Blast Tube
Support A, ssy-Cable Stop
Handle Assy-Bomb Rack Control
Clamp-% Square
Spacer-Pulley
Clamp-Channel Support
Spacer-Bomb Rack
Block-Lift Tube Spacer
Spacer-Bomb Rack
Spacer-Bomb Rack
Spacer-Bomb Rack
Angle-Cowl Fastener
Clamp-Gun Control Bracket
Clamp-Gun Control Bracket
Bracket-Gun Control
Block-Filler
Channel-Battery Box
Clamp Assy-Cowl Fastener Supp.
Plate Assy-10-32
Clamp Assy
